IP-COM W45AP User Manual

300m high power ceiling mount fat access point
Hide thumbs Also See for W45AP:
Table of Contents

Advertisement

Quick Links

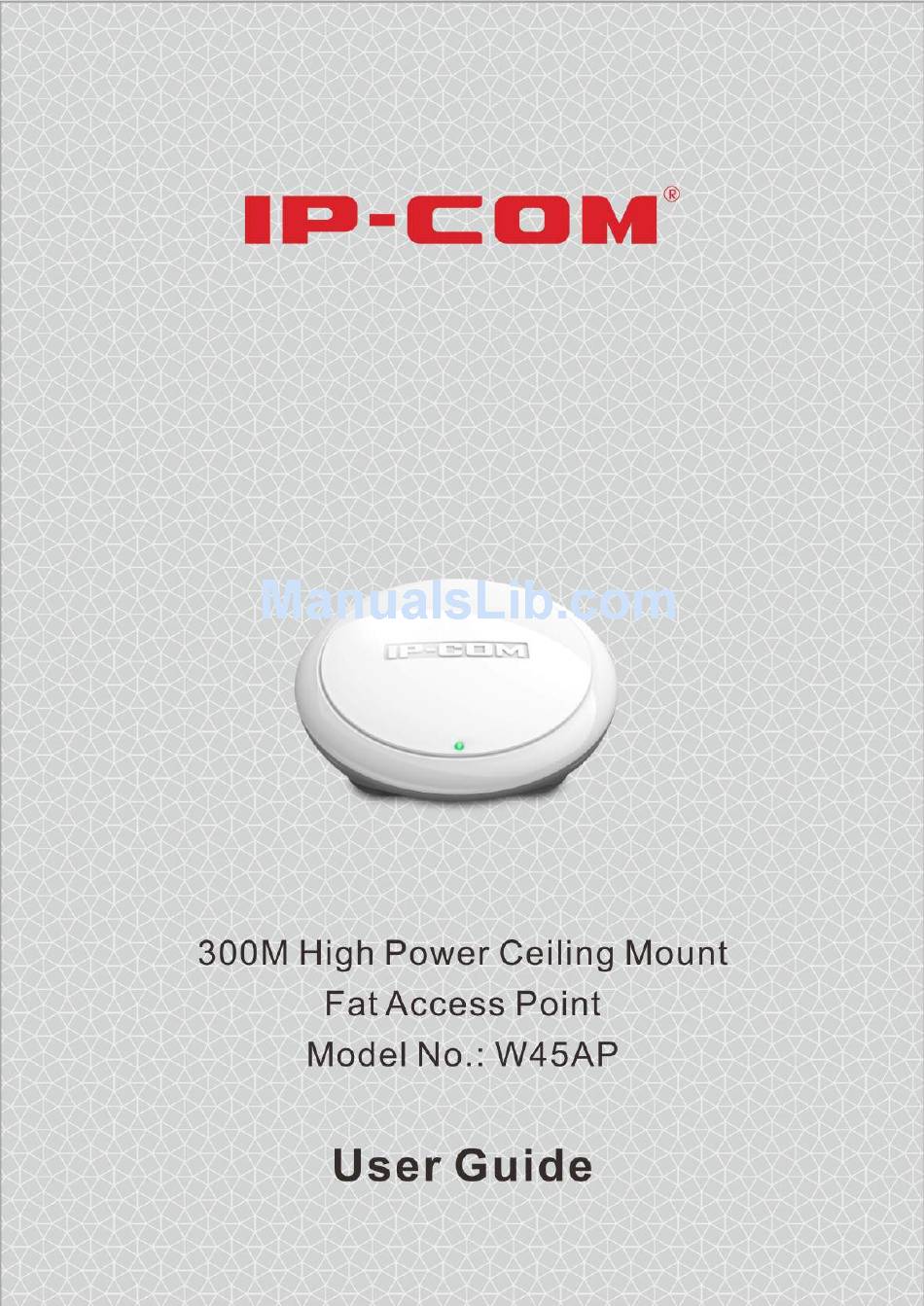

300M Wireless AP
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W45AP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IP-COM W45AP

Summary of Contents for IP-COM W45AP

  • Page 1 300M Wireless AP...

  • Page 2: Copyright Statement

    All photos and product specifications mentioned in this manual are for references only. Upgrades of software and hardware may occur; IP-COM reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes.

  • Page 3: Table Of Contents

    300M Wireless AP Contents COPYRIGHT STATEMENT ..............................1 CONTENTS ..................................3 CHAPTER 1 PRODUCT OVERVIEW ............................. 5 ................................. 5 ACKAGE ONTENTS ................................5 ARDWARE ESCRIPTION .................................. 6 RODUCT EATURES CHAPTER 2 INSTALLATION ............................... 7 ................................7 HYSICAL NSTALLATION 2 IP C ...................................
  • Page 4 300M Wireless AP 8.3 Logs .................................... 20 8.4 Configuration ................................21 8.5 User Name & Password ............................. 22 8.6 Diagnostics ................................. 23 APPENDIX 1 CONFIGURE PC ............................24 WIN7 OS C ................................ 24 ONFIGURATION XP OS C .............................. 27 INDOWS ONFIGURATION APPENDIX 2 JOIN A WIRELESS CONNECTION ........................

  • Page 5: Chapter 1 Product Overview

    300M Wireless AP Chapter 1 Product Overview specifically for The Wireless AP, mini and exquisite, is a best-in-class 802.11n indoor access point designed wireless projects . With standard X-86 installation and existed structure, the device saves time and costs and provides an adequate level of service to all users who connect with legacy 802.11b/g adapters in addition to the latest 802.11n adapters for faster downloads and instant communication.

  • Page 6: Product Features

    300M Wireless AP  RST：Restores the device to the factory default settings when pushed and held for 7 seconds (This button has been hidden by the outer frame of this device. Before pressing this button, you should remove the outer frame.). ...

  • Page 7: Chapter 2 Installation

    300M Wireless AP Chapter 2 Installation 1 Physical Installation 1. Connect the device to 802.3af power adapter; 2. Install the device onto the ceiling. The connection diagram is shown below: 2 IP Configuration The default IP address of your wireless access point is 192.168.0.254. If you are using the default IP subnet, the computer you are using to connect to the device should be configured with an IP address that starts with 192.168.0.x (where x can be any number between 1~253) and a Subnet Mask of 255.255.255.0;...
  • Page 8 300M Wireless AP 2. Select the wireless network you wish to and click Connect; 3. Enter your security key and click OK(If you have configured it); 4. When displaying Connected, you have connected the wireless network successfully.

  • Page 9: Windows Xp Os

    300M Wireless AP Note If you cannot find the icon at the bottom of right hand corner on your desktop, please refer to Appendix 2 Join a Wireless Connection. Windows XP OS 1. Right click My Network Places on your desktop and select Properties; 2.

  • Page 10: Chapter 3 Advanced Settings

    300M Wireless AP Chapter 3 Advanced Settings 1 Web Login To connect to the Wireless AP using the defaults IP address: 1. Open a Web browser. 2. Enter 192.168.0.254 into your browser. 3. Enter the default User Name admin and default Password admin into the login window. 2 Status 4.

  • Page 11: Wireless Status

    300M Wireless AP 6. Firmware Version: Displays Device’s current firmware version. 7. Hardware Version: Displays Device’s current hardware version. 2.2 Wireless Status This section displays radio status and SSID status. 1. Radio ON/OFF: Displays the primary SSID's wireless status. 2. Network Mode: Displays currently operative network mode. 3.

  • Page 12: Quick Setup

    300M Wireless AP 5. Total Link Speed: Total link speed rate has transmitted. 2.4 Wireless Clients This section displays information of connected clients(if any). 1. MAC Address：Displays the connected wireless client’s MAC address. 2. IP：Displays the connected wireless client’s IP. 3.

  • Page 13: Wds Mode

    300M Wireless AP 3.2 WDS Mode In this mode, this device can provide access to at most 4 APs. 1. SSID: Displays the device’s SSID. The default is this device's primary SSID. Once WDS is enabled, the primary SSID will be modified to the first remote AP's SSID. 2.

  • Page 14: Lan Setup

    300M Wireless AP clients. The device's SSID won't be changed. 1. SSID: You can configure the uplinked AP's SSID name here. 2. Security Mode: You can configure the uplinked AP's security mode here. 3. MAC Address: You can configure the uplinked AP's MAC address here. 4.

  • Page 15: Radio

    300M Wireless AP 1. SSID: Select the SSID from the drop-down list. It supports 4 SSIDs at most. 2. Enable: When select this item, wireless will be enabled. 3. Hide SSID Automatically: When number of clients outnumbers the maximum value, SSID will be hidden automatically.

  • Page 16: Advanced

    300M Wireless AP 1. Enable Wireless: Check/uncheck to enable/disable the wireless feature. 2. Network Mode: Select a right mode according to your wireless client. The default mode is 11b/g/n mixed. 11b mode: Select it if you have only 11b wireless devices in your wireless network. Up to 11Mbps wireless rate is supported on this mode.

  • Page 17: Access Control

    300M Wireless AP 4. DTIM Interval: A DTIM (Delivery Traffic Indication Message) Interval is a countdown informing clients of the next window for listening to broadcast and multicast messages. When such packets arrive in the router's buffer, the router will send DTIM (delivery traffic indication message) and DTIM interval to alert clients of the receiving packets.

  • Page 18: Tools

    Firmware upgrade is released periodically to improve the functionality of your device or to add new features. If you run into a problem with a specific feature of the device, log on to our website (http://www.ip-com.com.cn/) to download the latest firmware to update your device. Click Tools > Firmware Update to enter the screen below: To upgrade device software: 1.

  • Page 19: Time

    300M Wireless AP 2. Unzip the compressed upgrade file (.ZIP file). 3. Click Browse to locate and select upgrade file on your hard disk. 4. Click Update to upgrade device firmware. 5. When the firmware upgrade completes, your wireless access point will automatically restart. 6.

  • Page 20: Logs

    300M Wireless AP Login Timeout Here you can configure the web login timeout (1-60 minutes). The default is 5 minutes. Device returns to login window automatically depending on the specified login timeout and user name/password will be required. 8.3 Logs View Logs Here you can view the history of the device’s actions.

  • Page 21: Configuration

    300M Wireless AP Log Setup Here you can set up number of logs and rules of log settings. Up to 300 entries can be logged. The default is 150. 8.4 Configuration Backup & Restore This section allows you to save a copy of the device configurations on your local hard drive or to restore the previous configurations back to the device.

  • Page 22: User Name & Password

    300M Wireless AP Restore to Factory Default Click the Restore to Factory Default button to reset Device to factory default settings. Factory Default Settings:  User Name: admin  Password: admin  IP Address: 192.168.0. 254  Subnet mask: 255.255.255.0 8.5 User Name &...

  • Page 23: Diagnostics

    300M Wireless AP Note You must log in as an administrator to make any change. 8.6 Diagnostics This page allows you to test your network connection.

  • Page 24: Appendix 1 Configure Pc

    300M Wireless AP Appendix 1 Configure PC WIN7 OS Configuration 1. Click Start>Control Panel; 2. Enter Control Panel and click Network and Internet;...
  • Page 25 300M Wireless AP 3. Click Network and Sharing Center; 4. Click Change adapter settings; 5. Right click Local Area Connection and select Properties;...
  • Page 26 300M Wireless AP 6. Select Internet Protocol Version 4(TCP/IPv4) and click Properties; 7. Select Use the following IP address, enter 192.168.0.X (where x can be any number between 1~253) in the IP address bar and 255.255.255.0 in the subnet mask and then click OK to save the configurations.

  • Page 27: Windows Xp Os Configuration

    300M Wireless AP Windows XP OS Configuration 1. Right click My Network Places and select Properties; 2. Right click Local and select Properties; 3. Select Internet Protocol(TCP/IP) and click Properties;...
  • Page 28 300M Wireless AP 4. Select Use the following IP address, enter 192.168.0.X (where x can be any number between 1~253) in the IP address bar and 255.255.255.0 in the subnet mask and then click OK to save the configurations.

  • Page 29: Appendix 2 Join A Wireless Connection

    300M Wireless AP Appendix 2 Join a Wireless Connection Note For wireless connection, desktop computers need to be equipped with network cards first. Win7 OS 1. Click Start and select Control Panel; 2. Enter Control Panel and click Network and Internet;...
  • Page 30 300M Wireless AP 3. Click Network and Sharing Center; 4. Click Change adapter settings; 5. Right click Wireless Network Connection and select Connect/Disconnect;...
  • Page 31 300M Wireless AP 6. Select the wireless network you wish to and click Connect; 7. Enter your security key and click OK(If you have configured it); 8. When displaying Connected, you have connected the wireless network successfully.

  • Page 32: Windows Xp Os

    300M Wireless AP Windows XP OS 1. Click Start and select Control Panel; 2. Select Network Connections;...
  • Page 33 300M Wireless AP 3. Right click Local Area Connection and select View Available Wireless Networks; 4. Select the network you wish to connect, enter your network key and click Connect; 5. When it displays Connected, you have connected to the network successfully;...

  • Page 34: Appendix 3 Default Settings

    300M Wireless AP Appendix 3 Default settings Parameters Default Settings Address 192.168.0.254 AP Web Login Username admin Password admin Quick Setup Working Mode AP Mode IP Address 192.168.0.254 LAN Setup Subnet Mask 255.255.255.0 Gateway 192.168.0.1 Wireless Setup Enabled Primary SSID IP-COM_XXXXXX Network Mode 11/b/g/n mixed...

  • Page 35: Appendix 4 Safety And Emission Statement

    300M Wireless AP Appendix 4 Safety and Emission Statement CE Mark Warning This is a Class B product In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. This device complies with EU 1999/5/EC. NOTE:(1)The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.(2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable.
  • Page 36 300M Wireless AP This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
