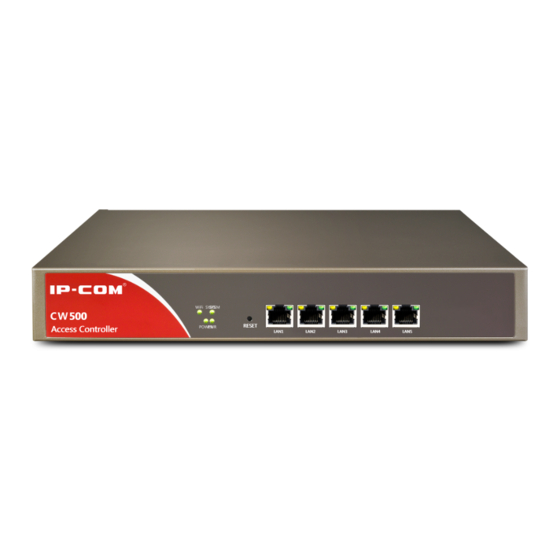

- Page 1 Setup Guide for the CW500 controller and W300AP FIT Access Points...
-
Page 2: Table Of Contents
Catalogue How to setup the CW500+W300AP ....................2 1.The topological graph ......................2 2.How to login to the management page of CW500..............3 3.How to manage my APs ......................4 How to set SSID for your APs ..................... 5 How to set W300AP ......................6 4.How to check wireless clients .................... -
Page 3: How To Setup The Cw500+W300Ap

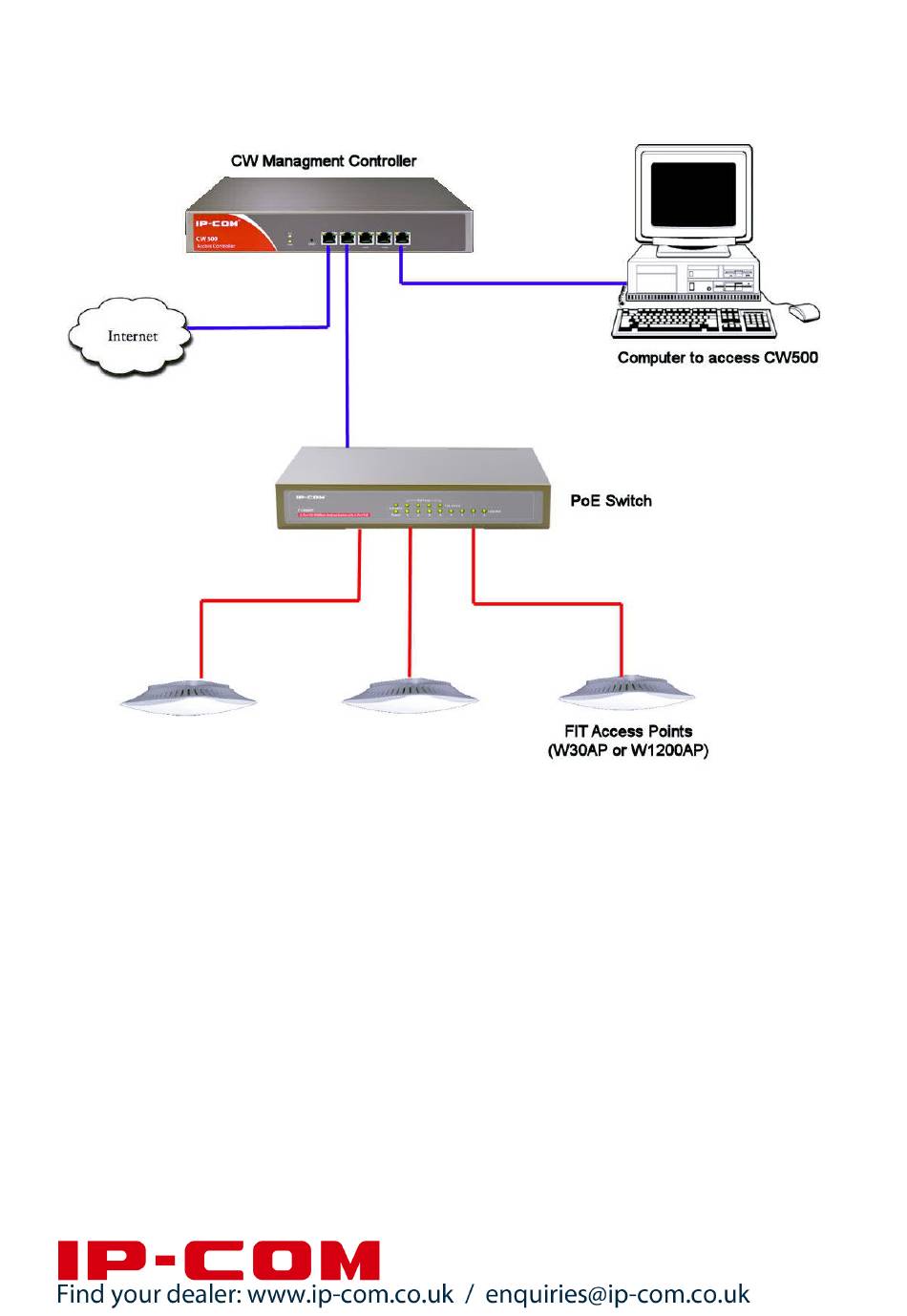

CW500+W300AP user guide 1. The topological graph There are two ways we can use this CW500, one is straight-through connection method, another bypass connection type. The bypass connection is recommended. Here is the topological graph. -
Page 4: How To Login To The Management Page Of Cw500
2. How to login to the management page of CW500 Connect your computer to the CW500, then config a static IP for you local area network card, like this. If your computer’s OS is win 7.please follow the steps bellow. Click Control panelNetwork and InternetNetwork and sharing centerChange adapter settingsLocal area network connection... -
Page 5: How To Manage My Aps
3. How to change the login IP for CW500 Q:Why do we change the login IP for CW500? A：We do this for convenience. some times in a network there are a lot of devices,such as manageable switches, we need setup multi equipments by connect computer to one interface on core device, and change other devices’... -
Page 6: How To Set Ssid For Your Aps
4. How to check the device info Click status, you will see device status and running status. In this window you can check the IP address, firmware version, managed Aps and connected clients. 5. How to set SSID you want for your wireless signal Click WirelessSSIDAdd SSID,... -
Page 7: How To Set W300Ap
How to set W300AP Wirelss>>AP Management W300AP can provide 4 SSIDs ,you can use 4 SSIDs with a same name, or you can use them different ,in this document we use four different SSIDs .The CW500 can modify AP in batch .but in this document we just use one AP ,so we just click the name(unknow as default).see as... - Page 8 Then config you SSID Config the radio parameter, like Bandwidth control ,Access limit ,power config ,channel.
- Page 9 Timing reboot(this function will keep the AP in a good working condition) After those steps ,you have successfully configured this AP ,in the following picture ,you can see that clearly.
-
Page 11: How To Check Wireless Clients
4.How to check wireless clients Wireless>>Wireless Client 5.how to config VLAN Network>>VLAN Config (In this document ,because I don’t have router or lay-3 switch that support VLAN ,so I can’t describe this in detail ) -
Page 13: How To Check Running Status,And Managed Ap Numbers
6.how to check running status,and managed AP numbers Status>>Running Status you can see the managed APs and Connected clients. 7.how to change the login user and password Tools>>User management you can change your username and password. -
Page 14: How To Upgrade The Ap Through The Cw500
8.How to upgrade the AP through the CW500 Tools>>AP Firmware Upload>>选择文件>>Upload Choose the file in your computer(‘选择文件 ‘means choose your file),then upload. 9.how to backup the configuration file Tools>>config management >>Backup Backup you configuration ,this is quite useful if you have many devices or when you restore this device to factory default. -
Page 15: Trouble Shooting
10.trouble shooting Tools>>Logs If you can't get you AP online ,you can see the system logs which is very halpful...
