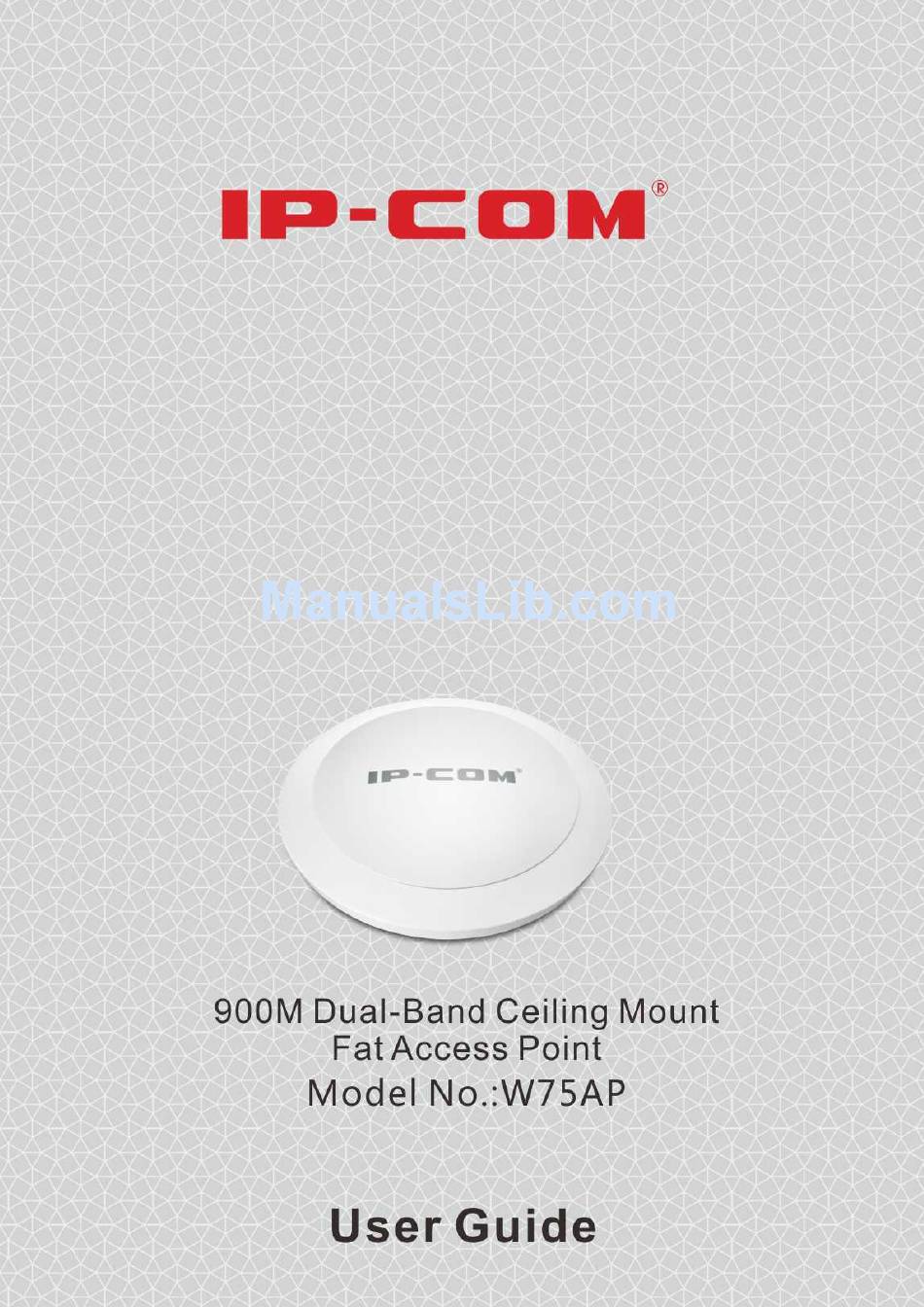

IP-COM W75AP User Manual

900m dual-band ceiling mount
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W75AP and is the answer not in the manual?

Questions and answers

Related Manuals for IP-COM W75AP

Summary of Contents for IP-COM W75AP

  • Page 2: Copyright Statement

    Inc. No part of this publication can be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the prior written permission of IP-COM Networks, Inc. If you would like to know more about our product information, please visit our website at...
  • Page 3 IP-COM does not assume any liability that may occur due to the use or application of, the product or circuit layout(s) described herein. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information and recommendations in this document do not constitute the warranty of any kind, express or implied.

  • Page 4: Table Of Contents

    802.11n lndoor Wireless Access Point Contents Chapter 1 Product Overview ..........................2 1.1 Product Features ............................2 1.2 Package Contents............................2 1.3 LEDs and Interfaces ..........................3 Chapter 2 Installation ............................4 Chapter 3 Configuration Guidelines ........................ 5 3.1 IP Configuration ............................5 3.2 Web Login ..............................

  • Page 5: Chapter 1 Product Overview

    802.11n lndoor Wireless Access Point Chapter 1 Product Overview The Wireless AP is a best-in-class 802.11n indoor access point designed specifically for wireless projects. With suspension installation and existed structure, the device saves time and costs. Versatile and powerful, the Wireless AP offers multiple security modes and supports 802.11n and 802.3at PoE power supply, which makes your data transmission safe.

  • Page 6: Leds And Interfaces

    802.11n lndoor Wireless Access Point 1.3 LEDs and Interfaces Side Panel: Power Solid: Receiving electrical power; Blinking: Functioning properly; Off: Receiving no electrical power or LED is disabled manually. 2.4GHz, 5GHz Solid: Wi-Fi is enabled; Blinking: Transferring data; Back Panel: RESET Restores the device to the factory default settings when pushed and held for 7 seconds (This button has been hidden by the bracket of this device.

  • Page 7: Chapter 2 Installation

    802.11n lndoor Wireless Access Point Chapter 2 Installation Installation procedures: 1. Connecting the Ethernet cable to the PoE port on this device. 2. Connecting the injector to the power adapter. 3. Connecting the PoE port of the injector to the PoE port on this device with Ethernet cable. 4.

  • Page 8: Chapter 3 Configuration Guidelines

    802.11n lndoor Wireless Access Point Chapter 3 Configuration Guidelines 3.1 IP Configuration The default IP address of your wireless access point is 192.168.0.254. If you are using the default IP subnet, the computer you are using to connect to the device should be configured with an IP address that starts with 192.168.0.x (where x can be any number between 1~253) and a Subnet Mask of 255.255.255.0;...

  • Page 9: Wireless Status

    802.11n lndoor Wireless Access Point 1. Device Name: Displays this device’s name. 2. System Time: Displays system’s current time. 3. Up Time: Displays the device’s uptime. 4. Number of Wireless Clients: Displays the information of connected wireless clients (if any). 5.

  • Page 10: Wireless Clients

    802.11n lndoor Wireless Access Point 1. Total RX Traffic: Total RX bytes SSID has received. 2. Total RX Packets: Total RX packets SSID has received. 3. Total TX Traffic: Total TX bytes SSID has transmitted. 4. Total TX Packets: Total TX packets SSID has transmitted. 3.2.4 Wireless Clients This section displays information of connected clients (if any).

  • Page 11: Network

    802.11n lndoor Wireless Access Point 3.3 Network 3.3.1 LAN Settings Here you can configure the LAN IP address, subnet mask, gateway and DNS servers. Note ----------------------------------------------------------------------------------------------------------------------------- 1. Default LAN IP:192.168.0.254, default subnet mask:255.255.255.0。 2. If you change this IP address, you must use the new one to re-log on to this web utility. ----------------------------------------------------------------------------------------------------------------------------------------- 3.4 Wireless 3.4.1 Basic...
  • Page 12 802.11n lndoor Wireless Access Point 5. SSID: This is the public name of your wireless network. Select the SSID you wish to configure from the drop-down list. 6. Wireless Mode: Select a right mode according to your wireless client. The default mode of 2.4GHz is 11b/g/n mixed.

  • Page 13: Security

    802.11n lndoor Wireless Access Point 3. SSID Broadcast: This option allows you to have your network name (SSID) publicly broadcast or if you choose to disable it, the SSID will be hidden. It is enabled by default. 4. AP Isolation: Isolates clients connected to the same SSID. 5.
  • Page 14 802.11n lndoor Wireless Access Point 1. Encryption Type: Select Open or Shared from the drop-down list. 2. WEP Key: Select Hex or ASCII from the drop-down list. Enter 5 or 13 valid ASCII characters (0-9,a-z,A-Z,@,*,-,_ can be included) if you select ASCII or enter 10 or 26 valid Hex characters (0-9,a-f,A-F can be included) if you select Hex.

  • Page 15: Wds

    802.11n lndoor Wireless Access Point 1. Cipher Type: Select AES (advanced encryption standard) or TKIP (temporary key integrity protocol) &AES. 2. Security Key: Enter a security key, which must be between 8-63 ASCII characters long. 3. Key Update Interval: Enter a valid time period for the key to be changed. 3.4.3 WDS Wireless distribution system (WDS) is a system enabling the wireless interconnection of access points in an IEEE 802.11 network.

  • Page 16: Universal Repeater

    802.11n lndoor Wireless Access Point 2．You can also scan the remote AP. 1）Click Open Scan to select the remote AP and click OK to add the corresponding MAC address automatically. 2) Click OK to save your settings. Then follow the steps mentioned above to configure the W75AP2. After the two APs have added each other, they can be bridged successfully.

  • Page 17: Access Control

    802.11n lndoor Wireless Access Point Note ----------------------------------------------------------------------------------------------------------------------------- 1. Enabling scan does not populate the security key, so you must still manually enter it. 2. Make sure your (local) AP, PCs connected and the remote AP to connect are on the same subnet with different IP addresses.

  • Page 18: 6Advanced

    802.11n lndoor Wireless Access Point click Add and then OK. Then this device listed as “Denied” will be unable to connect to your wireless network. 3.4.6Advanced This section allows you to configure advanced wireless settings (2.4GHz or 5GHz). If you are new to networking and have never configured these settings before, we recommend you to leave the default settings unchanged.

  • Page 19: Tools

    Upgrade is released periodically to improve the functionality of your device or to add new features. If you run into a problem with a specific feature of the device, log on to our website (http://www.ip-com.com.cn/) to download the latest firmware to update your device.

  • Page 20: Time

    802.11n lndoor Wireless Access Point Note ----------------------------------------------------------------------------------------------------------------------------- When uploading software to the Wireless AP, it is important not to disconnect the device from power supply. If the power supply is interrupted, the upload may fail, corrupt the software, and render the device inoperable.

  • Page 21: Logs

    802.11n lndoor Wireless Access Point 4. Copy Local Time: Copy time on your PC to the device. Note ----------------------------------------------------------------------------------------------------------------------------- System time will be lost when the device is disconnected from power supply. However, it will be updated automatically when the device reconnects to Internet. ----------------------------------------------------------------------------------------------------------------------------------------- 3.6.3 Logs Syslog...

  • Page 22: User Name & Password

    802.11n lndoor Wireless Access Point settings on your local hardware. Restore: Click the Browse button to locate and select a configuration file that is saved previously on your local hard drive and then click Restore to restore it. Configurations will be restored after device reboot.

  • Page 23: Diagnostics

    802.11n lndoor Wireless Access Point 3.8.6 Diagnostics You can choose Ping or traceroute to test your network connection. 3.8.7 LED This section allows you to modify LED status.

  • Page 24: Appendix 1 Glossary

    802.11n lndoor Wireless Access Point Appendix 1 Glossary Channel A communication channel, also known as channel, refers either to a physical transmission medium such as a wire or to a logical connection over a multiplexed medium such as a radio channel. It is used to transfer an information signal, such as a digital bit stream, from one or more transmitters to one or more receivers.

  • Page 25: Appendix 2 Configure Pc

    802.11n lndoor Wireless Access Point Appendix 2 Configure PC WIN7 OS Configuration 1. Click Start>Control Panel; 2. Enter Control Panel and click Network and Internet; 3. Click Network and Sharing Center;...
  • Page 26 802.11n lndoor Wireless Access Point 4. Click Change adapter settings; 5. Right click Local Area Connection and select Properties; 6. Select Internet Protocol Version 4(TCP/IPv4) and click Properties;...

  • Page 27: Windows Xp Os Configuration

    802.11n lndoor Wireless Access Point 7. Select Use the following IP address, enter 192.168.0.X (where x can be any number between 1~253) in the IP address bar and 255.255.255.0 in the subnet mask and then click OK to save the configurations.
  • Page 28 802.11n lndoor Wireless Access Point 3. Select Internet Protocol(TCP/IP) and click Properties; 4. Select Use the following IP address, enter 192.168.0.X (where x can be any number between 1~253) in the IP address bar and 255.255.255.0 in the subnet mask and then click OK to save the configurations.

  • Page 29: Appendix 3 Safety And Emission Statement

    802.11n lndoor Wireless Access Point Appendix 3 Safety and Emission Statement CE Mark Warning Operations in the 5.15-5.25GHz band are restricted to indoor usage only. This is a Class B product in a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
