iUAP-AC-Lite
Package Contents
AP x 1
Power Cord x 1 + PoE Adapter x 1
Mounting Bracket x 1
Plastic Anchor (height: 6.6 mm, inner diameter: 2.4 mm, length: 26.4mm) x 3
Plastic Nut (length: 14.5 mm, diameter: 2.51 mm) x 3
Screw (head diameter: 6 mm, thread diameter: 3 mm, length: 25 mm) x 3

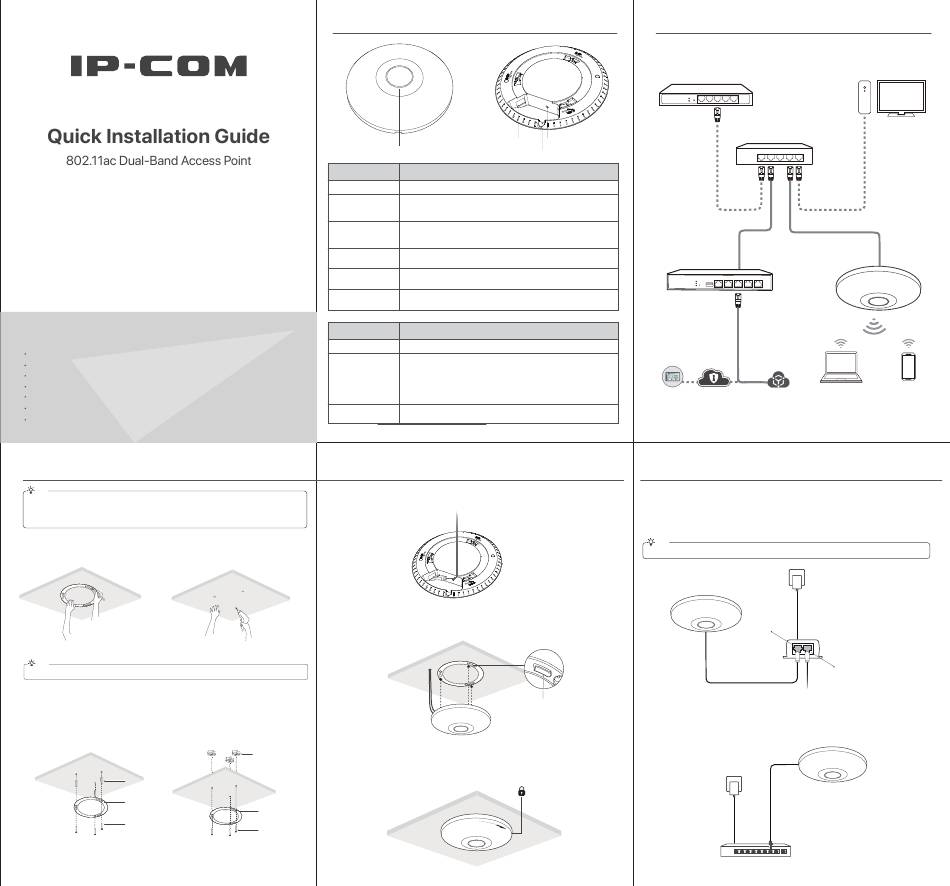

Quick Installation Guide
Install the AP
Tips:
− Before installation,
• Record the MAC address (on the label of the AP) and installation position of the AP to locate the AP through the MAC address.
• Prepare a marker, a hammer drill, a drill bit, a rubber hammer, a screwdriver, and a ladder.
− The APs are suitable for mounting at heights > 2 m.
❶
❷
Position the bracket on the ceiling and
Drill holes in the marked positions using a
mark screw hole positions with the marker.
hammer drill.
Tips:
Option A applies to general cases. For ceilings with weak strength (such as plasterboard), please choose Option B.
❸
Option A: Knock the included plastic anchors into the holes using the rubber hammer.
Insert the included screws into the screw holes on the bracket and fix them into the plastic
anchors using a screwdriver to fix the bracket.
Option B: Insert the included screws into the screw holes on the bracket and fix them into the
included plastic nuts using a screwdriver to fix the bracket.
Plastic Anchor
Mounting Bracket
Screw
Option A
LED Indicator/Button/Ports
LED indicator
LED Indicator
Blinking white
Solid white
Solid blue
Fast blinking blue
Slowly blinking blue
Alternating white
/blue
Button/Ports
RESET
LAN/PoE
Cable Fix Notch
❹
Use an Ethernet cable (CAT5e or better recommended) to connect a PoE power
supply device with IEEE 802.3af/at standards to the LAN/PoE port of the AP.
❺
Align the slots of the AP with the hooks of the bracket.
❻
Plastic Nut
Ensure that the AP is firmly seated onto the bracket. Turn the AP clockwise until it is fixed
securely onto the bracket.
Mounting Bracket
Screw
Option B
RESET
LAN/PoE
Cable Fix Notch
Description
The AP is starting up.
The AP has completed startup and is waiting to be managed by a controller
(such as IP-COM ProFi Software Controller, ProFi App/ProFi Cloud web Ul,
an AP controller (AC), or a router with AP management function).
The AP is managed by a controller (such as IP-COM ProFi Software
Controller, ProFi App/ProFi Cloud web Ul, an AP controller (AC) or a router
with AP management function) and is working properly.
The AP Locate feature was activated in the ProFi Software Controller or
ProFi Cloud.
The AP is isolated and no longer provides wireless access (due to disconnection
from the uplink network).
The AP is busy (for example, upgrading firmware). Do not disconnect the
power.
Description
Reset button, used to reset the AP. For the reset method, see Q4 in FAQ.
10/100/1000 Mbps auto-negotiation port for both PoE power supply and
data transmission.
Generally connected to an upstream device (such as a PoE switch).
You can power the AP by:
-The included PoE adapter or power adapter.
- Other PoE power supply devices with IEEE 802.3af/at standards.
Used to fix Ethernet cables to the AP.
Hook
Network Topology
The typical network topology of the APs is shown below.
IP-COM AP Controller
P
oE Switch
Uplink
Router
LAN
WAN
Remote Access
SDN Cloud
ProFi App/ProFi Cloud
to ProFi Software
Controller
Power the AP
CAT5e or better Ethernet cables are recommended.
Method 1: Power the AP with the included PoE adapter and power cord
1. Use an Ethernet cable to connect the LAN/PoE port of the AP to the PoE port of the included PoE
adapter.
2. Use the included power cord to connect the PoE adapter to a power socket.
Tips:
The maximum power supply distance of the AP is 30 meters.
❷
PoE port
LAN/PoE port
❶
≤30m
Method 2: Power the AP with a standard PoE power supply device
Use an Ethernet cable to connect the LAN/PoE port of the AP to a PoE power supply device with
802.3af/at standards. A PoE switch is used for illustration in the following figure.
LAN/PoE port
≤100m
PoE port
PoE switch
Management Computer
(ProFi Software Controller)
AP
Laptop
Smartphone
LAN port, used to connect
to other network devices
AP
