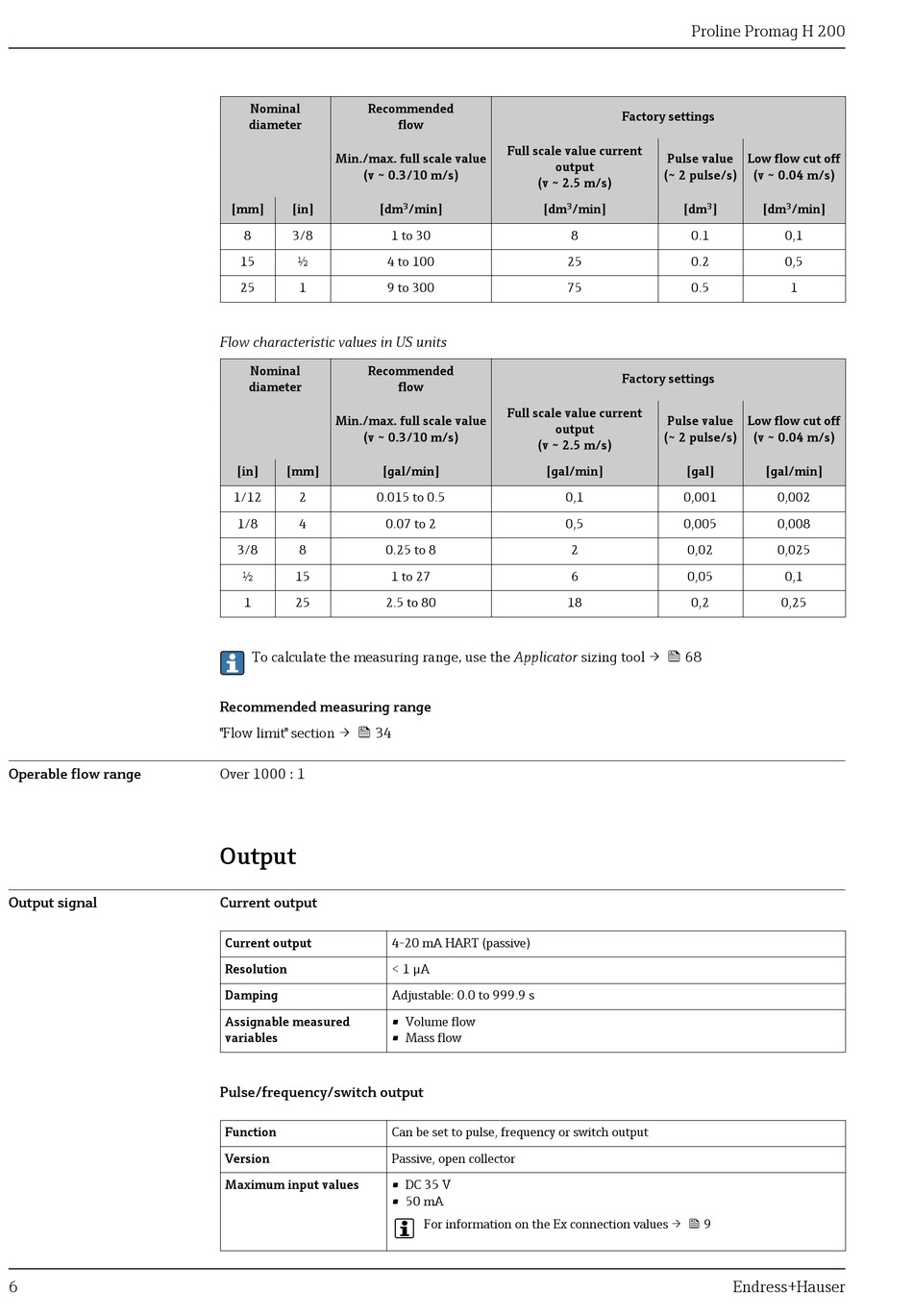

Operable Flow Range; Output; Output Signal - Endress+Hauser Proline Promag H 200 Technical Information

Operable flow range

Output signal

6
Nominal Recommended
diameter
Min./max. full scale value
(v ~ 0.3/10 m/s)
[mm] [in] [dm
8 3/8 1 to 30
15 ½ 4 to 100
25 1 9 to 300
Flow characteristic values in US units
Nominal Recommended
diameter
Min./max. full scale value
(v ~ 0.3/10 m/s)
[in] [mm] [gal/min]
1/12 2 0.015 to 0.5
1/8 4 0.07 to 2
3/8 8 0.25 to 8
½ 15 1 to 27
1 25 2.5 to 80
To calculate the measuring range, use the Applicator sizing tool →  68
Recommended measuring range
"Flow limit" section →  34
Over 1000 : 1

Output

Current output
Current output
Resolution
Damping
Assignable measured
variables
Pulse/frequency/switch output
Function
Version
Maximum input values
flow
Full scale value current
output
(v ~ 2.5 m/s)
3 /min] [dm
flow
Full scale value current
output
(v ~ 2.5 m/s)
[gal/min]
4-20 mA HART (passive)
< 1 µA
Adjustable: 0.0 to 999.9 s
• Volume flow
• Mass flow
Can be set to pulse, frequency or switch output
Passive, open collector
• DC 35 V
• 50 mA

For information on the Ex connection values →  9
Proline Promag H 200
Factory settings
Pulse value
(~ 2 pulse/s)
3 /min] [dm 3 ]
8 0.1
25 0.2
75 0.5
Factory settings
Pulse value
(~ 2 pulse/s)
[gal]
0,1 0,001
0,5 0,005
2 0,02
6 0,05
18 0,2
Endress+Hauser
Low flow cut off
(v ~ 0.04 m/s)
[dm 3 /min]
0,1
0,5
1
Low flow cut off
(v ~ 0.04 m/s)
[gal/min]
0,002
0,008
0,025
0,1
0,25
