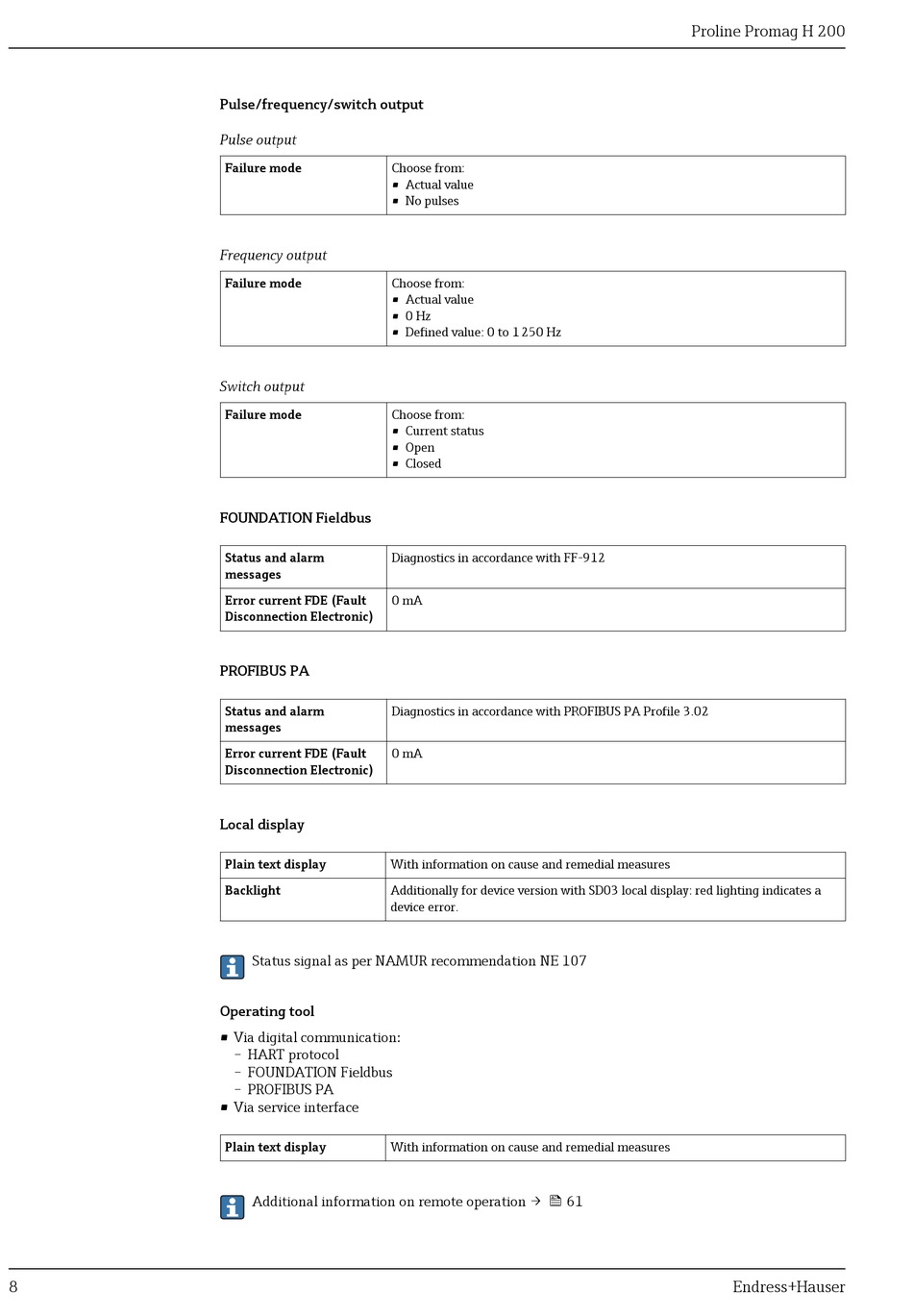

Pulse/frequency/switch output
Pulse output
Failure mode
Frequency output
Failure mode
Switch output
Failure mode
FOUNDATION Fieldbus
Status and alarm
messages
Error current FDE (Fault
Disconnection Electronic)
PROFIBUS PA
Status and alarm
messages
Error current FDE (Fault
Disconnection Electronic)
Local display
Plain text display
With information on cause and remedial measures
Backlight
Additionally for device version with SD03 local display: red lighting indicates a
device error.
Status signal as per NAMUR recommendation NE 107
Operating tool
• Via digital communication:
– HART protocol
– FOUNDATION Fieldbus
– PROFIBUS PA
• Via service interface
Plain text display
With information on cause and remedial measures
Additional information on remote operation → 61
Choose from:
• Actual value
• No pulses
Choose from:
• Actual value
• 0 Hz
• Defined value: 0 to 1 250 Hz
Choose from:
• Current status
• Open
• Closed
Diagnostics in accordance with FF-912
0 mA
Diagnostics in accordance with PROFIBUS PA Profile 3.02
0 mA
