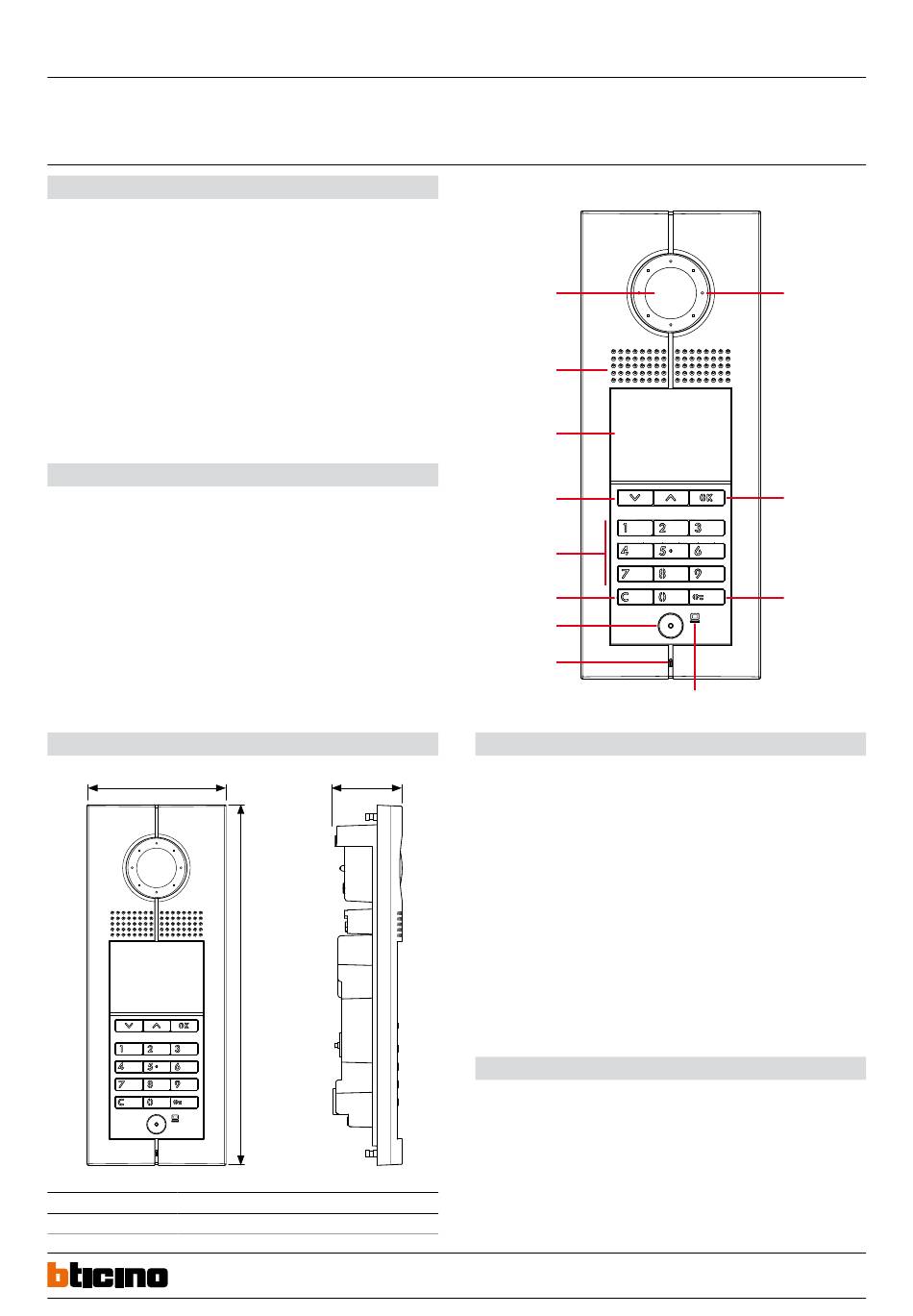

Bticino D45 System Manual

Digital colour entrance panel
with addresses list
Description

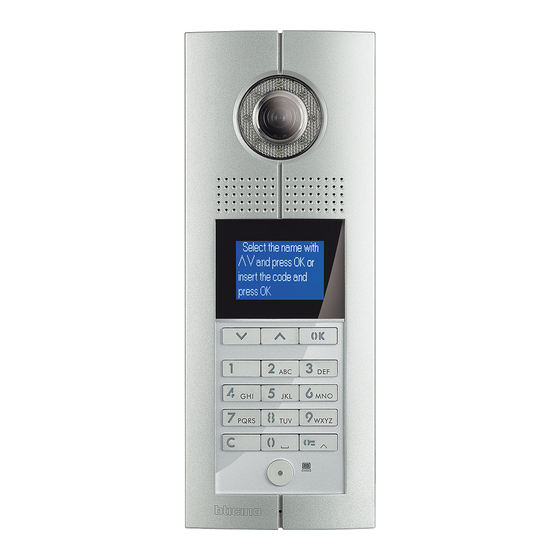

D45 System entrance panel with colour camera and backlighted alphanumeric keyboard
equipped with pushbutton to direct calls to the porter switchboard. Possibility to send
an alarm message to the switchboard when opening over two minutes of the associated
lock or when trying to remove the device. Setup parameters via device keyboard.
Configuration by device menu and keyboard or through the dedicated software
(supplied with the product). Residents can be called in 3 different ways :
- searching the name of the resident in the addresses list by using up & down arrow keys
- entering the resident surname by using the alphanumerical keyboard (same way as
for the mobile phone)
- direct call by typing the resident corresponding numerical code (you must know the
resident code).
Flush mounting installation with dedicated box - supplied with the product.
Technical data
Power supply:
Stand by absorption:
Max operating absorption:
Camera sensor:
Lens:
Camera diagonal view angle:
Camera distance up to clear picture:
Camera resolution:
Camera minimum lux level visibility: 0.01 lux (compensation lamp OFF)
Operating temperature:
Protection index:
Protection against mechanical impact: IK07

Dimensional data

A
A (mm) B (mm)
125 325
30 Vdc
≤ 25 mA @ 30 V
≤ 245 mA@30 V
1/3"
F3.6 mm
85°
16.4 cm
540 TV Lines (horizontal)
0 lux (compensation lamp ON)
(-25) – (+55) °C
IP54
C
B
C (mm)
44,5
BT00853-a-EN
Front view
12
11
10
9
8
7
6
5
Legend
1. Compensation Lamp
2. Send call to the selected resident key
3. Door lock release key
4. External light sensor
5. Microphone
6. Direct call to the management center pushbutton
7. Delete & Return key
8. Alphanumerical pushbuttons
9. Navigation / search for the resident keys
10. Backlighted LCD display
11. Loudspeaker
12. Adjustable colour camera
Related items
322012 Targa module
346250 Door lock relay
03/09/2014
D45 System
322011
1
2
3
4
1
