Entrance panel/Switchboard shunt

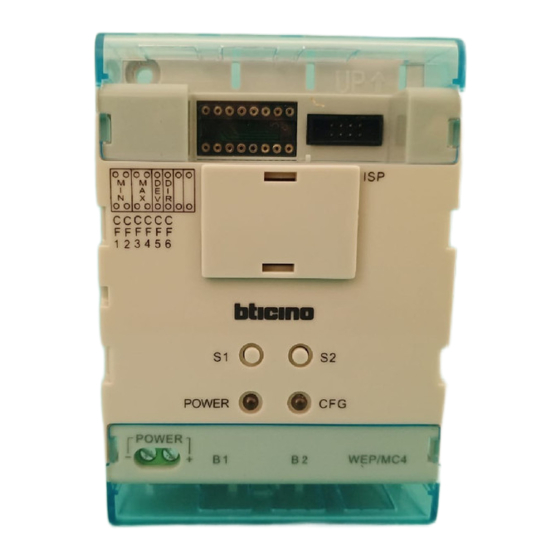

Description

D45 System interface device used to connect the entrance panel and the switchboard
to the system. This device automatically switches over the video channels. Must be
configured. DIN RAIL installation.

Technical data

Power supply:
Stand by current absorption:
Max. operating current absorption:
Stand by power consumption:
Operating power consumption:
Operating temperature:

Dimensional data

72 mm
59,5 mm
30 Vdc
≤ 70 mA @ 30 V
≤ 70 mA @ 30 V
2.1 W
2.1 W
(-10)-(+40)°C
33 mm
BT00463-b-EN

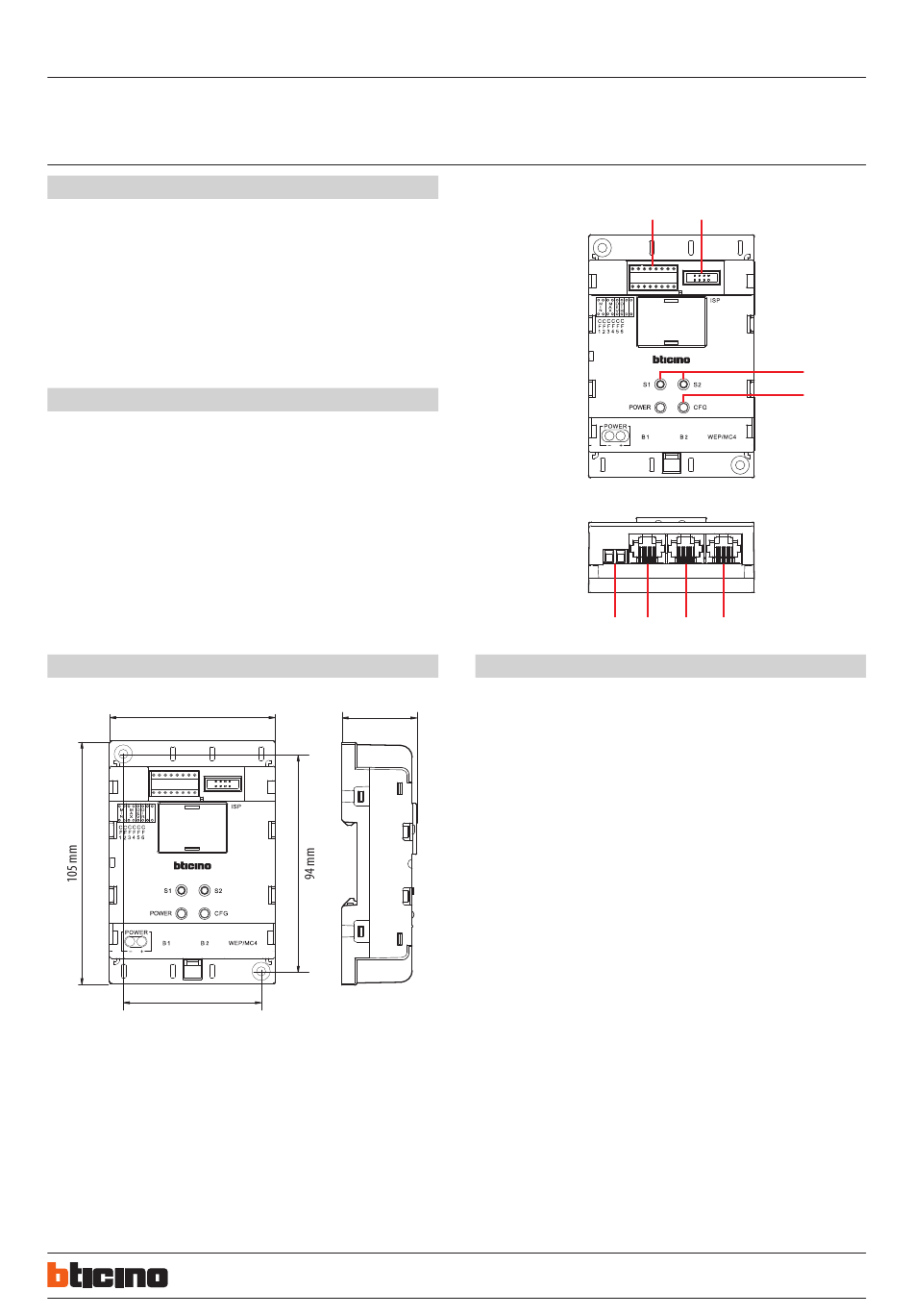

Front view
Lower view
POWER
-
+
POWER
-
+
8
7
Legend
1. Configurators housing
2. Serial port interface for configuration download and firmware update
3. S1 - S2 keys for pushbuttons device configuration (NOT USED)
4. LED indicator for configuration status
5. RJ45 connector for digital entrance panel or switchboard connection
6. B2 RJ45 connector for main system BUS connection
7. B1 RJ45 connector for main system BUS connection
8. Auxiliary power supply input connector (30 V)
13/05/2013
D45 System
323018
1
2
3
4
6
5
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D45 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bticino D45

  • Page 1 Entrance panel/Switchboard shunt 323018 Description Front view D45 System interface device used to connect the entrance panel and the switchboard to the system. This device automatically switches over the video channels. Must be configured. DIN RAIL installation. Technical data Power supply:...
  • Page 2 Entrance panel/Switchboard shunt 323018 Configuration examples: Configuration example (A): Two different device configuration ways available: Item 323018 is used to extend one switchboard. The switchboard address range is 4; all WAY 1) Configuration settings by inserting phisical configurators main EP are installed in the B1 port of 323018, configuration as follows: WAY 2) Configuration by using SF2 Software and PC connection CF1 CF2 CF3 CF4 CF5 CF6 Configuration by inserting phisical configurators - WAY 1:...
  • Page 3 Entrance panel/Switchboard shunt 323018 Configuration by using sf2 software and pC connection - WAY 2: This is the enhanced way to download the device configuration to interface device previously created by using SF2 configuration software and a personal computer. To transfer file use the configurator hardware tool 323020 serial interface.
