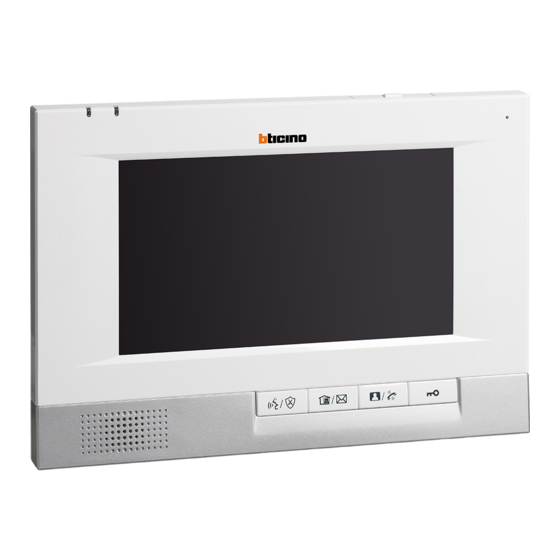

Hands-free colour internal unit
Description
Hands-free colour internal unit with 7" TFT LED (16/9 format), SOS function, door lock
release and scrolling EP activation.

Technical data

Voltage
Stand-by current absorption
Operating current absorption
Monitor resolution:

Dimensional data

225 mm
18 Vdc - 30 V
≤ 13 mA (30 V)
≤ 90 mA (30 V)
800 x 480 dpi
25,5 mm
BT00875-a-

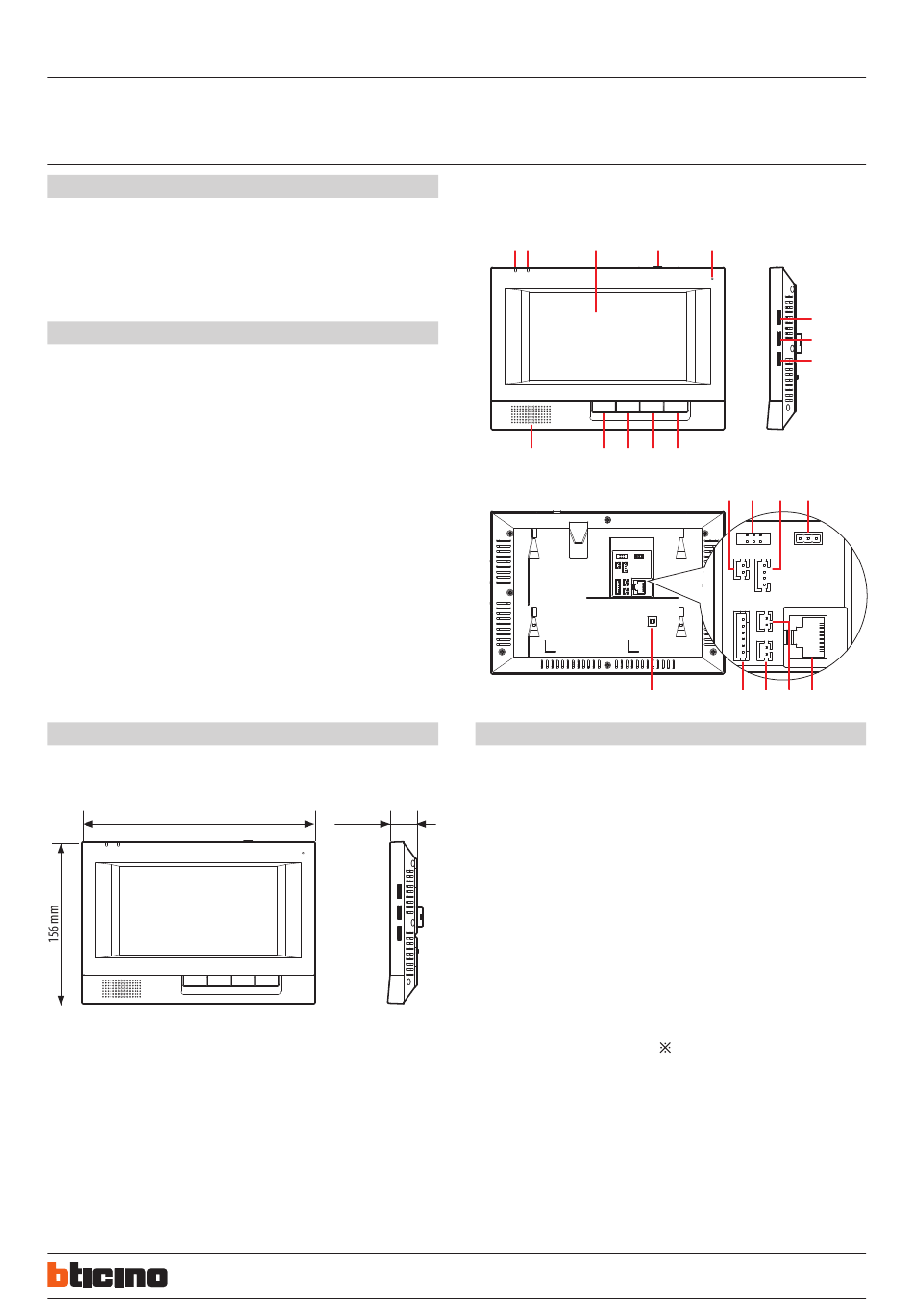

Side and front view
1 2
3
13
12 11 10 9
Rear view
Legend
1. Communication LED
2. Information / Alarm LED
3. Display screen
4. Setup key and Enter key
5. Microphone
6. Sound control knob
7. Brightness control knob
8. Contrast control knob
9. Unlock key
10. Monitor key / Internal call key
11. Management center key / Message key
12. Hands-free talk key and One-stroke Guard key
13. Loudspeaker
14. Alarm sensor anti-removal connector
15. Download connector
16. Doorbell interface (Small Entrance Unit interface)
17. Master and slave pin
18. Bus connector
19. Lock remover interface
20. Emergency alarming interface
21. Sensor connector
22. Anti-removal switch
EN
24/03/2016
D45 System
322052
4
5
6
7
8
14 15
16
17
22
21 20
19
18
1
