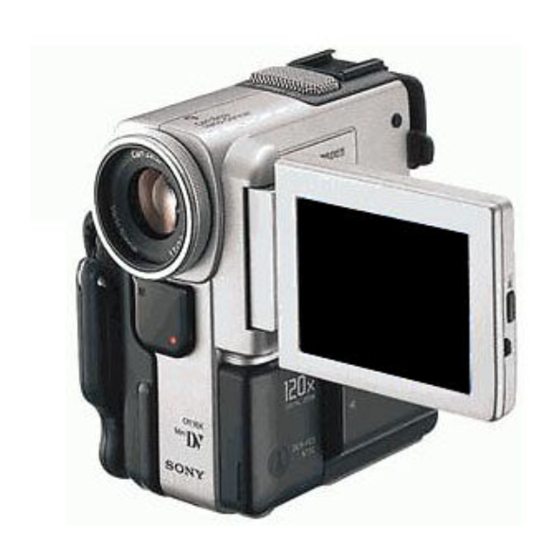

Sony Handycam DCR-PC5 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Sony Manuals
  4. Camcorder
  5. Handycam DCR-PC5
  6. Operating instructions manual

Sony Handycam DCR-PC5 Operating Instructions Manual

Digital video camera recorder
Hide thumbs Also See for Handycam DCR-PC5:
Table of Contents

Advertisement

Quick Links

Digital
Video Camera
Recorder

Operating Instructions

Before operating the unit, please read this manual thoroughly,
and retain it for future reference.
Owner's Record
The model and serial numbers are located on the bottom. Record the
serial number in the space provided below. Refer to these numbers
whenever you call upon your Sony dealer regarding this product.
Model No. DCR-PC5
Serial No.
DCR-PC5
©2000 Sony Corporation
3-062-114-11 (1)
Model No. AC-
Serial No.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Handycam DCR-PC5 and is the answer not in the manual?

Questions and answers

Related Manuals for Sony Handycam DCR-PC5

Summary of Contents for Sony Handycam DCR-PC5

  • Page 1: Operating Instructions

    Owner’s Record The model and serial numbers are located on the bottom. Record the serial number in the space provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No. DCR-PC5 Serial No.

  • Page 2: For Customers In The U.s.a

    Congratulations on your purchase of this Sony Digital Handycam camcorder. With your Digital Handycam, you can capture life’s precious moments with superior picture and sound quality. Your Digital Handycam is loaded with advanced features, but at the same time it is very easy to use.

  • Page 3: For Customers In Canada

    Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful...

  • Page 4: Table Of Contents

    Table of contents Checking supplied accessories ... 5 Quick Start Guide Getting started Using this manual ... 8 Step 1 Preparing the power supply ... 10 Charging the battery pack ... 10 Installing the battery pack ... 12 Connecting to a wall outlet ... 14 Step 2 Inserting a cassette ...

  • Page 5: Checking Supplied Accessories

    Checking supplied accessories Make sure that the following accessories are supplied with your camcorder. 1 RMT-811 Wireless Remote Commander (1) (p. 150) 2 AC-VF10 power adaptor (1), Power cord (1) (p. 10) 3 DK-115 Connecting cord (1) (p. 14) 4 NP-FS11 battery pack (1) (p. 10, 12) 5 Size AA (R6) battery for Remote Commander (2) (p.

  • Page 6: Quick Start Guide

    Quick Start Guide Connecting the power cord Use the battery pack when using your camcorder outdoors (p. 12). AC adaptor (supplied) DK connecting cord (supplied) Inserting a cassette Slide OPEN/Z EJECT in the direction of the arrow and open the lid.
  • Page 7 Recording a picture Remove the lens cap. When the LCD panel is closed, pull out the viewfinder until it clicks. Use viewfinder placing your eye against its eyecup. Monitoring the playback picture on the LCD screen (p. 27) Set the POWER switch to VCR while pressing the small green button.

  • Page 8: Getting Started

    — Getting started — Using this manual As you read through this manual, buttons and settings on your camcorder are shown in capital letters. e.g. Set the POWER switch to CAMERA. When you carry out an operation, you can hear a beep sound to indicate that the operation is being carried out.

  • Page 9: Precautions On Camcorder Care

    Using this manual Precautions on camcorder care •The LCD screen and the viewfinder are manufactured using high-precision technology. However, there may be some tiny black points and/or bright points (red, blue, green, or white) that constantly appear on the LCD screen and in the viewfinder.

  • Page 10: Step 1 Preparing The Power Supply

    Step 1 Preparing the power supply Charging the battery pack Use the battery pack after charging it for your camcorder. Your camcorder operates only with the “InfoLITHIUM” battery pack (S series). (1) Connect the power cord to the AC adaptor. (2) Connect the power cord to a wall outlet.

  • Page 11: Recording Time

    Step 1 Preparing the power supply Recording time Battery pack NP-FS11 (supplied) NP-FS21 NP-FS31 NP-F10 NP-F20 NP-F30 Approximate number of minutes when you use a fully charged battery Numbers in parentheses “( )” indicate the time when using a normally charged battery.

  • Page 12: Installing The Battery Pack

    “InfoLITHIUM” battery. “InfoLITHIUM” S series battery packs have the mark. “InfoLITHIUM” is a trademark of Sony Corporation. Installing the battery pack Install the battery pack to use your camcorder outdoors. (1) While sliding BATT RELEASE in the direction of the arrow 1, slide the battery terminal cover in the direction of the arrow 2.

  • Page 13: To Remove The Battery Pack

    Step 1 Preparing the power supply To remove the battery pack The battery pack is removed in the same way as the battery terminal cover. After installing the battery pack Do not carry your comcorder by holding the battery pack. If you do so, the battery pack may slide off your camcorder unintentionally, damaging your camcorder.

  • Page 14: Connecting To A Wall Outlet

    The set is not disconnected from the AC power source (house current) as long as it is connected to the wall outlet, even if the set itself has been turned off. Using a car battery Use Sony DC Adaptor/Charger (not supplied).

  • Page 15: Step 2 Inserting A Cassette

    Step 2 Inserting a cassette You can use mini DV cassette with is a trade mark. (1) Install the battery pack, or connect the AC adaptor for the power supply (p. 10 to 14). (2) Slide OPEN/Z EJECT in the direction of the arrow and open the lid. The cassette compartment automatically lifts up and opens.

  • Page 16: Step 3 Using A Touch Panel

    Step 3 Using a touch panel Your camcorder has operation buttons on the LCD screen. Touch the LCD panel directly to operate each function. In CAMERA/VCR mode (1) Install the battery pack, or connect the AC adaptor for the power supply (p.
  • Page 17 Step 3 Using a touch panel Notes •When using the touch panel, press operation buttons with your thumb supporting the LCD screen from the back side of it or press those buttons lightly with your index finger. Do not press them with sharp-pointed objects such as pens. •Do not press the LCD screen too hard.

  • Page 18: Recording - Basics

    — Recording – Basics — Recording a picture Your camcorder automatically focuses for you. (1) Remove the lens cap and pull the lens cap string to fix it. (2) Install the power source and insert a cassette. See “Step 1” and “Step 2” for more information (p.

  • Page 19: Adjusting The Viewfinder

    Recording a picture Note on Recording mode Your camcorder records and plays back in the SP (standard play) mode and in the LP (long play) mode. Select SP or LP in the menu settings (p. 89). In the LP mode, you can record 1.5 times as long as in the SP mode.

  • Page 20: Shooting With The Lcd Screen

    Recording a picture Shooting with the LCD screen Press OPEN to open the LCD panel. The LCD panel moves about 90 degrees to the viewfinder side and about 180 degrees to the lens side. If you turn the LCD panel over so that it faces the other way, the indicator appears in the viewfinder and on the LCD screen (Mirror mode).

  • Page 21: Adjusting The Brightness Of The Lcd Screen

    Recording a picture Adjusting the brightness of the LCD screen (1) In CAMERA/MEMORY mode, press FN and select PAGE2 (p. 16). In VCR mode, press FN to display PAGE1. (2) Press LCD BRT. The screen to adjust the brightness of the LCD screen appears. (3) Adjust the brightness of the LCD screen using –/+.

  • Page 22: Using The Zoom Feature

    Recording a picture Using the zoom feature Move the power zoom lever a little for a slower zoom. Move it further for a faster zoom. Using the zoom function sparingly results in better-looking recordings. “T” side: for telephoto (subject appears closer) “W”...

  • Page 23: Shooting Backlit Subjects (Back Light)

    Recording a picture Indicators displayed in the recording mode The indicators are not recorded on tape. Cassette memory indicator This appears when using a tape with cassette memory. Recording mode indicator STBY/REC indicator Time code/Tape counter 0:00:01 45min Remaining tape indicator FN button Press this button to display operation buttons on the LCD screen.

  • Page 24: Using The Nightshot Light

    Recording a picture Shooting in the dark (NightShot/Super Nightshot) The NightShot function enables you to shoot a subject in a dark place. For example, you can satisfactorily record the environment of nocturnal animals for observation when you use this function. While your camcorder is in the CAMERA/memory camera mode, slide NIGHTSHOT to ON.

  • Page 25: Self-Timer Recording

    Recording a picture While using the NightShot function, you cannot use the following functions: – Exposure – PROGRAM AE – White balance Shutter speed in the Super NighShot mode The shutter speed will be automatically changed depending on the brightness of the background.

  • Page 26: End Search

    Recording a picture To stop the self-timer during recording Press START/STOP. Use the Remote Commander for convenience. To cancel the self-timer recording Press SELFTIMER so that the viewfinder while your camcorder is in the standby mode. To record still pictures on a tape using the self-timer Press PHOTO in step 3 (p.

  • Page 27: Playback - Basics

    — Playback – Basics — Playing back a tape You can monitor the playback picture on the LCD screen. If you close the LCD panel, you can monitor the playback picture in the viewfinder. You can also control playback using the Remote Commander supplied with your camcorder. (1) Install the power source and insert the recorded tape.

  • Page 28: Using The Data Code Function

    Playing back a tape When monitoring on the LCD screen You can turn the LCD panel over and move it back to the camcorder body with the LCD screen facing out. If you leave the power on for a long time Your camcorder gets warm.

  • Page 29: Various Playback Modes

    Playing back a tape Using the Remote Commander Press DATA CODE button on the Remote Commander in the playback mode. The display changes as follows: date/time t various settings (SteadyShot, exposure, white balance, gain, shutter speed, aperture value) t no indicator Not to display various settings Set DATA CODE to DATE in the menu settings using the Remote Commander (p.
  • Page 30 Playing back a tape To change the playback direction Press on the Remote Commander during playback to reverse the playback direction. To resume normal playback, press N. To locate a scene monitoring the picture (picture search) Keep pressing release the button. To monitor the high-speed picture while advancing or rewinding the tape (skip scan) Keep pressing...

  • Page 31: Viewing The Recording On Tv

    Viewing the recording on TV Connect your camcorder to your TV or VCR with the A/V connecting cable supplied with your camcorder to watch the playback picture on the TV screen. You can operate the playback control buttons in the same way as when you monitor playback pictures on the LCD screen.

  • Page 32: Advanced Recording Operations

    — Advanced Recording Operations — Recording a still image on a tape – Tape Photo recording You can record a still picture. This mode is useful when you want to print a picture using a video printer (not supplied). You can record about 510 pictures in the SP mode and about 765 pictures in the LP mode on a 60-minute tape.

  • Page 33: Self-Timer Tape Photo Recording

    Recording a still image on a tape – Tape Photo recording Self-timer tape photo recording You can make a tape photo recording with the self-timer. You can also operate using the Remote Commander. (1) Set the POWER switch to CAMERA. (2) Press FN and select PAGE3 (p.

  • Page 34: Printing The Still Picture

    Recording a still image on a tape – Tape Photo recording Printing the still picture You can print a still picture by using the video printer (not supplied). Connect the video printer using the A/V connecting cable supplied with your camcorder. Connect it to the AUDIO/VIDEO jack and connect the yellow plug of the cable to the video input of the video printer.

  • Page 35: Adjusting The White Balance Manually

    Adjusting the white balance manually You can manually adjust and set the white balance. This adjustment makes white subjects look white and allows more natural color balance. Normally white balance is automatically adjusted. (1) In the CAMERA/memory camera mode, press FN to display PAGE1 (p. 16). (2) Select WHT BAL in mode (p.

  • Page 36: Using The Wide Mode

    Using the wide mode You can record a 16:9 wide picture to watch on the 16:9 wide-screen TV (16:9WIDE). Black bands appear on the screen during recording in 16:9WIDE mode [a]. The picture during playing back on a normal TV [b] or a wide -screen TV [c] are compressed in the widthwise direction.

  • Page 37: Using The Fader Function

    Using the fader function You can fade in or out to give your recording a professional appearance. STBY NORM. FADER (fader) MOSC.FADER (mosaic) BOUNCE* (Fade in only) OVERLAP (Fade in only) WIPE** (Fade in only) (Fade in only) STBY MONOTONE When fading in, the picture gradually changes from black-and-white to color.
  • Page 38 Using the fader function (1) When fading in [a] In the standby mode, press FN to display PAGE1 (p. 16). When fading out [b] In the recording mode, press FN to display PAGE1 (p. 16). (2) Press FADER. The screen to select the fader mode appears. (3) Select a desired fader mode.
  • Page 39 Using the fader function When the OVERLAP, WIPE or DOT indicator appears Your camcorder automatically stores the image recorded on a tape. At this stage, the picture may not be recorded clearly, depending on the tape condition. While using the bounce function, you cannot use the following functions: –...

  • Page 40: Using Special Effects - Picture Effect

    Using special effects – Picture effect You can digitally process images to obtain special effects like those in films or on the NEG. ART [a] : The color and brightness of the picture is reversed. SEPIA : B&W : SOLARIZE [b] : The light intensity is clearer, and the picture looks like an illustration. PASTEL [c] : MOSAIC [d] : (1) In CAMERA mode, press FN to display PAGE1 (p.

  • Page 41: Using Special Effects - Digital Effect

    Using special effects – Digital effect You can add special effects to recorded pictures using the various digital functions. The sound is recorded normally. STILL You can record a still picture so that it is superimposed on a moving picture. FLASH (FLASH MOTION) You can record still pictures successively at constant intervals.
  • Page 42 Using special effects – Digital effect (1) In CAMERA mode, press FN to display PAGE1 (p. 16). (2) Press DIG EFFT. The screen to select a desired digital effect mode appears. (3) Select a desired digital effect mode. In the STILL and LUMI. modes, the still picture is stored in memory.
  • Page 43 Using special effects – Digital Effect Notes •The following functions do not work during digital effect: – Fader – Low lux mode of PROGRAM AE – Tape Photo recording – Super NightShot •The following function does not work in the slow shutter mode: –...

  • Page 44: Using The Program Ae Function

    Using the PROGRAM AE function You can select PROGRAM AE (Auto Exposure) mode to suit your specific shooting requirements. Spotlight mode This mode prevents people’s faces, for example, from appearing excessively white when shooting subjects lit by strong light in the theater. Soft portrait mode This mode brings out the subject while creating a soft background for subjects such as people or flowers.
  • Page 45 Using the PROGRAM AE function (1) In the standby/memory camera mode, press FN to display PAGE1 (p. 16). (2) Press MENU, then select a desired PROGRAM AE mode in settings (p. 89). To return to FN Press EXIT. To turn the PROGRAM AE function off Select AUTO in PROGRAM AE in the menu settings.

  • Page 46: Adjusting The Exposure Manually

    Adjusting the exposure manually You can manually adjust and set the exposure. Adjust the exposure manually in the following cases: •The subject is backlit •To shoot the bright subject and dark background •To record dark pictures (e.g. night scenes) faithfully (1) In the CAMERA/memory camera mode, press FN to display PAGE1 (p.

  • Page 47: Using The Spot Light-Metering Mode - Flexible Spot Meter

    Using the spot light-metering mode – Flexible Spot Meter You can take a picture with the appropriate exposure automatically for just the point you want to focus on. Use the Flexible Spot Meter mode in the following cases: •The subject is backlit •When there is strong contrast between the subject and background such as with a subject that is on stage and lighted by a spotlight.

  • Page 48: Focusing Manually

    Focusing manually You can gain better results by manually adjusting the focus in the following cases: •The autofocus mode is not effective when shooting – subjects through glass coated with water droplets – horizontal stripes – subjects with little contrast with backgrounds such as walls and sky •When you want to change the focus from a subject in the foreground to a subject in the background •Shooting a stationary subject when using a tripod...

  • Page 49: Advanced Playback Operations

    — Advanced Playback Operations — Playing back a tape with picture effects During playback, you can process a scene using the picture effect functions: NEG.ART, SEPIA, B&W and SOLARIZE. (1) In the playback mode or the playback pause mode, press FN to display PAGE1 (p.

  • Page 50: Playing Back A Tape With Digital Effects

    Playing back a tape with digital effects During playback, you can process a scene using the digital effect functions: STILL, FLASH, LUMI. and TRAIL. (1) In the playback/playback pause mode, press FN and select PAGE2 (p. 16). (2) Press DIG EFFT. The screen to select a desired digital effect mode appears. (3) Select a desired digital effect mode.

  • Page 51: Enlarging Recorded Images - Pb Zoom

    Enlarging recorded images – PB ZOOM You can enlarge images recorded on a tape. (1) In the playback/playback pause mode, press FN and select PAGE2. (2) Press PB ZOOM. The PB ZOOM screen appears. (3) Press the area you want to enlarge in the frame on the PB ZOOM screen. The area you pressed moves to the center of the screen, and the playback image is enlarged at twice the size.

  • Page 52: Quickly Locating A Scene Using The Zero Set Memory Function

    Quickly locating a scene using the zero set memory function Your camcorder goes forward or backward to automatically stop at a desired scene having a tape counter value of “0:00:00”. You can do this with the Remote Commander. (1) In the playback mode, press DISPLAY on the Remote Commander if the counter is not on the LCD screen or in the viewfinder.

  • Page 53: Searching The Boundaries Of Recorded Tape By Title - Title Search

    Searching the boundaries of recorded tape by title – Title search If you use a tape with cassette memory, you can search for the boundaries of recorded tape by title. You need the Remote Commander for this operation. (1) Set the POWER switch to VCR. (2) Press FN to display PAGE1 (p.

  • Page 54: Searching A Recording By Date - Date Search

    Searching a recording by date – Date search You can automatically search for the point where the recording date changes and start playback from that point. Use a tape with cassette memory for convenience. You need the Remote Commander for this operation. Use this function to check where recording dates change or to edit the tape at each recording date.

  • Page 55: Searching For The Date Without Using Cassette Memory

    Searching a recording by date – Date search Searching for the date without using cassette memory (1) Set the POWER switch to VCR. (2) Press FN to display PAGE1 (p. 16). (3) Press MENU, then set CM SEARCH in (4) Press SEARCH MODE on the Remote Commander repeatedly, until the date search indicator appears.

  • Page 56: Searching For A Photo - Photo Search/Photo Scan

    Searching for a photo – Photo search/Photo scan You can search for a still picture you have recorded on a mini DV tape (photo search). You can also search for still pictures one after another and display each picture for five seconds automatically regardless of cassette memory (photo scan).

  • Page 57: Searching For A Photo Without Using Cassette Memory

    Searching for a photo – Photo search/Photo scan Searching for a photo without using cassette memory (1) Set the POWER switch to VCR. (2) Press FN to display PAGE1 (p. 16). (3) Press MENU, then set CM SEARCH in (4) Press SEARCH MODE on the Remote Commander repeatedly, until the photo search indicator appears.

  • Page 58: Editing

    Dubbing a tape Using the A/V connecting cable Connect your camcorder to the VCR using the A/V connecting cable supplied with your camcorder. Set the input selector on the VCR to LINE, if available. Refer to the operating instructions of your VCR. (1) Insert a blank tape (or a tape you want to record over) into the VCR, and insert the recorded tape into your camcorder.
  • Page 59 Dubbing a tape Using the i.LINK cable (DV connecting cable) Simply connect the i.LINK cable (DV connecting cable) (not supplied) to DV IN/OUT and to DV IN/OUT of the DV products. With digital-to-digital connection, video and audio signals are transmitted in digital form for high-quality editing. You cannot dub the titles, display indicators or the contents of cassette memory.

  • Page 60: Dubbing Only Desired Scenes - Digital Program Editing

    Dubbing only desired scenes – Digital program editing You can duplicate selected scenes (programs) for editing onto a tape without operating the VCR. Scenes can be selected by frame. Unwanted scene Before operating the Digital program editing Step 1 Connect your camcorder to the VCR (p. 60). Step 2 Set the VCR for operation (p.

  • Page 61: Setting The Ir Setup Code

    Dubbing only desired scenes – Digital program editing Step 2: Setting the VCR to operate with the A/V connecting cable To edit using the VCR, send the control signal by infrared ray to the remote sensor on the VCR. When you connect using the A/V connecting cable, follow the procedures below, (1) ~ (4), to send the control signal correctly.
  • Page 62 About the IR SETUP code The IR SETUP code is stored in the memory of your camcorder. Be sure to set the correct code, depending on your VCR. Default setting is code number 1. Brand Sony Admiral (M. Wards) Aiwa Audio Dynamic Bell &...
  • Page 63 Dubbing only desired scenes – Digital program editing (2) Setting the modes to cancel the recording pause on the 1 Select PAUSEMODE, then press EXEC. 2 Select the mode to cancel recording pause on the VCR, then press EXEC. The correct button depends on your VCR. Refer to the operating instructions of your VCR.
  • Page 64 Dubbing only desired scenes – Digital program editing (4) Confirming the VCR operation 1 Insert a recordable tape into the VCR, then set the VCR to recording pause. 2 Select IR TEST, then press EXEC. 3 Select EXECUTE, then press EXEC. If the VCR starts recording, the setting is correct.
  • Page 65 Dubbing only desired scenes – Digital program editing Step 2: Setting the VCR to operate with the i.LINK cable (DV connecting cable) When you connect using the i.LINK cable (DV connecting cable) (not supplied), follow the procedures below. (1) Set the POWER switch to VCR on your camcorder . (2) Turn the power of the connected VCR on, then set the input selector to DV input.
  • Page 66 Dubbing only desired scenes – Digital program editing Step 3: Adjusting the synchronicity of the VCR You can adjust the synchronicity of your camcorder and the VCR. Prepare a pen and paper for notes. Before operation, eject a cassette from your camcorder. (1) Set the POWER swtich to VCR on your camcorder.
  • Page 67 Dubbing only desired scenes – Digital program editing EXIT OTHERS ED I T SET CONTROL ADJ TEST RETURN EXECUTE ”CUT - I N” ”CUT -OUT” I R SETUP PAUSEMODE I R TEST EXIT OTHERS EXEC RET. ED I T SET CONTROL ADJ TEST EXECUT I NG...
  • Page 68 Dubbing only desired scenes – Digital program editing If you connect using the i.LINK cable (DV connecting cable) With digital-to-digital connection, video and audio signals are transmitted in digital form for high-quality editing. When you connect with the i.LINK cable (DV connecting cable) You may not be able to operate the dubbing function correctly, depending on the VCR.

  • Page 69: Erasing The Program You Have Set

    Dubbing only desired scenes – Digital program editing Erasing the program you have set Erase OUT mark first, and then IN mark of the last program. (1) Press UNDO. The last program mark flashes on the LCD screen. (2) Press EXEC. The setting is cancelled. To cancel erasing Press CANCEL in step 2.
  • Page 70 Dubbing only desired scenes – Digital program editing Operation 2: Performing a Digital program edit (Dubbing a tape) Make sure your camcorder and the VCR are connected, and that the VCR is set to recording pause. (When you use the i.LINK cable (DV connecting cable), you don’t need to set the VCR to recording pause mode.) When you use a video camera recorder, set its POWER switch to VCR.

  • Page 71: Using With Analog Video Unit And Personal Computer - Signal Convert Function

    Using with analog video unit and personal computer – Signal convert function You can convert analog video signals into digital video signals via your camcorder connected to a personal computer and analog video unit. Analog video signals t Digital video signals You can capture images and sound from an analog video unit connected to a personal computer which has the i.

  • Page 72: Recording Video Or Tv Programs

    Recording video or TV programs Using the A/V connecting cable You can record a tape from another VCR or a TV program from a TV that has video/ audio outputs. Use your camcorder as a recorder. (1) Insert a blank tape (or a tape you want to record over) into your camcorder. If you are recording a tape from the VCR, insert a recorded tape into the VCR.

  • Page 73: Using The Remote Commander

    Recording video or TV programs When you have finished dubbing a tape Press x on both your camcorder and the VCR. Using the Remote Commander In the step 6 above, press z REC and the button on its right simultaneously, then immediately press X.
  • Page 74 Recording video or TV programs Using the i.LINK cable (DV connecting cable) Simply connect the i.LINK cable (DV connecting cable) (not supplied) to DV IN/OUT and to DV IN/OUT of the DV products. With digital-to-digital connection, video and audio signals are transmitted in digital form for high-quality editing. (1) Insert a blank tape (or a tape you want to record over) into your camcorder, and insert the recorded tape into VCR.
  • Page 75 Recording video or TV programs You can connect one VCR only using the i.LINK cable (DV connecting cable). When you dub a picture in digital form The color of the display may be uneven. However, this does not affect the dubbed picture.

  • Page 76: Inserting A Scene From A Vcr

    Inserting a scene from a VCR Replacing recording on a tape – Insert Editing You can insert a new scene from a VCR onto your originally recorded tape by specifying the insert start and end points. Use the Remote Commander for this operation.
  • Page 77 Inserting a scene from a VCR 0:00:00 ZERO SET ZERO SET PAUSE START MEMORY MEMORY REC CTRL RET. PAUSE START To change the insert end point Press ZERO SET MEMORY again after step 5 to erase the ZERO SET MEMORY indicator and begin from step 3.

  • Page 78: Audio Dubbing

    Audio dubbing You can record an audio sound to add to the original sound on a tape by connecting audio equipment or a microphone. If you connect the audio equipment, you can add sound to your recorded tape by specifying starting and ending points. The original sound will not be erased.

  • Page 79: Adding An Audio Sound On A Recorded Tape

    Audio dubbing Dubbing with the built-in microphones No connection is necessary. Notes •When you dub an audio sound with the external microphone, check the recorded picture and sound by connecting the AUDIO/VIDEO jack to a TV. The recorded sound is not output from the speaker. Check the sound by using the TV or headphones.

  • Page 80: Monitoring The New Recorded Sound

    Audio dubbing Monitoring the new recorded sound To play back the sound Adjust the balance between the original sound (ST1) and the new sound (ST2) by selecting AUDIO MIX in the menu settings (p. 89). About five minutes after when you disconnect the power source or remove the battery pack, the setting of AUDIO MIX returns to the original sound (ST1) only.

  • Page 81: Superimposing A Title

    Superimposing a title If you use a tape with cassette memory, you can superimpose the title while recording or after recording. When you play back the tape, the title is displayed for about 5 seconds from the point where you superimposed it. You can select one of eight preset titles and two custom titles (p.
  • Page 82 Superimposing a title If you set the write-protect tab to lock You cannot superimpose or erase the title. Slide the write-protect tab to release the write protection. To use the custom title If you want to use the custom title, select If the tape has a blank portion You cannot superimpose a title on the tape.
  • Page 83 Superimposing a title Not to display title Set TITLE DSPL to OFF in the menu settings (p. 89). Title setting •The title color changes as follows: WHITE t YELLOW t VIOLET t RED t CYAN t GREEN t BLUE •The title size changes as follows: SMALL y LARGE You cannot input 13 characters or more in LARGE size.

  • Page 84: Erasing A Title

    Superimposing a title Erasing a title (1) Set the POWER switch to CAMERA or VCR. (2) Press FN to display PAGE1 (p. 16). (3) Press MENU to display the menu. (4) Select (5) Select TITLEERASE with r/R, and then EXEC. The screen to erase a title appears.

  • Page 85: Making Your Own Titles

    Making your own titles You can make up to two titles and store them in cassette memory. Each title can have up to 20 characters. (1) In CAMERA/VCR mode, press FN, and select PAGE2 (p. 16). (2) Press TITLE. (3) Select with r/R, and press EXEC.

  • Page 86: To Change A Title You Have Stored

    Making your own titles To return to FN Press EXIT. To change a title you have stored In step 4, select CUSTOM1 SET or CUSTOM2 SET, depending on which title you want to change, then press EXEC and then enter the new title as desired. If you take 5 minutes or longer to enter characters in the standby mode while a cassette is in your camcorder The power automatically goes off.

  • Page 87: Labeling A Cassette

    Labeling a cassette If you use a tape with cassette memory, you can label a cassette. The label can consist of up to 10 characters and is stored in cassette memory. When you insert the labeled cassette and set the POWER switch to CAMERA or VCR, the label is displayed for about 5 seconds.
  • Page 88 Labeling a cassette To return to FN Press EXIT. To erase a character Select C in step 6. The last character is erased. To change the label you have made Insert the cassette to change the label, and operate in the same way to make a new label. Deleting all the data in cassette memory You can delete all the data in cassette memory at once.

  • Page 89: Customizing Your Camcorder

    — Customizing Your Camcorder — Changing the menu settings To change the mode settings in the menu settings, select the menu items with r/R dial. The default settings can be partially changed. First, select the icon, then the menu item and then the mode.
  • Page 90 Changing the menu settings Menu items are displayed as the following icons: MANUAL SET CAMERA SET VCR SET LCD SET MEMORY SET CM SET TAPE SET SETUP MENU OTHERS Selecting the mode setting of each item Menu items differ depending on the position of the POWER switch. The LCD screen shows only the items you can operate at the moment.
  • Page 91 Changing the menu settings Icon/item Mode HiFi SOUND z STEREO AUDIO MIX A/V t DV OUT z OFF LCD B. L. z BRT NORMAL BRIGHT LCD COLOR Notes on LCD B.L. •When you use power sources other than the battery pack, “BRIGHT” is automatically selected.
  • Page 92 Changing the menu settings Icon/item Mode CONTINUOUS z OFF QUALITY z FINE SLIDE SHOW DELETE ALL FORMAT PHOTO SAVE CM SEARCH z ON TITLEERASE TITLE DSPL z ON TAPE TITLE ERASE ALL Notes on formatting •“Memory Stick” supplied with your camcorder has been formatted at factory. Formatting with your camcorder is not required.
  • Page 93 When you play back the tape on other camcorders or VCRs, noise may occur in pictures or sound. •When you record in the LP mode, we recommend using a Sony Excellence/Master mini DV cassette so that you can get the most out of your camcorder.
  • Page 94 Changing the menu settings Icon/item Mode CLOCK SET DEMO MODE z ON WORLD TIME BEEP z MELODY COMMANDER z ON DISPLAY z LCD REC LAMP z ON VIDEO EDIT EDIT SET Notes on DEMO MODE •You cannot select DEMO MODE when a cassette is inserted in your camcorder. •DEMO MODE is set to STBY (Standby) at the factory and the demonstration starts about 10 minutes after you have set the POWER switch to CAMERA without a cassette inserted.

  • Page 95: Resetting The Date And Time

    Resetting the date and time The default clock setting is set to Tokyo time for the models sold in Japan, and New York time for other models. If you do not use your camcorder for about three months, the date and time settings may be released (bars may appear) because the manganese-lithium battery installed in your camcorder will have been discharged.

  • Page 96: Memory Stick" Operations

    — “Memory Stick” operations — Using a “Memory Stick”–introduction You can record and play back still images on a “Memory Stick” supplied with your camcorder. You can easily play back, re-record or delete still images. You can exchange image data with other equipment such as a personal computer etc., using the PC serial cable for “Memory Stick”...
  • Page 97 •Macintosh is a trademark of Apple Computer, Inc. •All other product names mentioned herein may be the trademarks or registered trademarks of their respective companies. Furthermore, “ ” and “ ” are not mentioned in each case in this manual. are trademarks of Sony Corporation.
  • Page 98 Using a “Memory Stick”–introduction Inserting a “Memory Stick” Insert a “Memory Stick” in the “Memory Stick” compartment as far as it can go with the v mark facing up. Ejecting a “Memory Stick” Slide MEMORY RELEASE in the direction of the arrow. While the access lamp is lit or flashing Never shake or strike your camcorder because your camcorder is reading the data from the “Memory Stick”...

  • Page 99: Using A Touch Panel

    Using a “Memory Stick”–introduction Using a touch panel Your camcorder has operation buttons on the LCD screen. Press the LCD panel directly to operate each function. (1) Set the POWER switch to MEMORY. Make sure that the LOCK is set to the right (unlock) position.
  • Page 100 Using a “Memory Stick”–introduction To execute settings Press EXEC or To cancel settings Press OFF to return to PAGE1/PAGE2/PAGE3. To return to FN Press EXIT. Notes •When using the touch panel, press operation buttons with your thumb supporting the LCD screen from the back side of it or press those buttons lightly with your index finger.

  • Page 101: Selecting Image Quality Mode

    Using a “Memory Stick”–introduction Selecting image quality mode You can select image quality mode in still picture recording. The default setting is FINE. (1) Set the POWER switch to VCR or MEMORY. Make sure that the LOCK is set to the right (unlock) position.
  • Page 102 Using a “Memory Stick”–introduction Image quality mode Memory capacity FINE (FINE) STANDARD (STD) About 60 KB Approximate number of images you can record on a “Memory Stick” The number of images you can record varies depending on which image quality mode you select and the complexity of the subject.

  • Page 103: Recording Still Images On "Memory Stick" - Memory Photo Recording

    Recording still images on “Memory Stick” – Memory Photo recording You can record still pictures on the “Memory Stick”. You can also record nine still pictures continuously. (MULTI SCRN) Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY. Make sure that the LOCK is set to the right (unlock) position.

  • Page 104: Recording Images Continuously

    Recording still images on “Memory Stick” – Memory Photo recording When the POWER switch is set to MEMORY The following functions do not work: – 16:9 wide – Digital zoom – SteadyShot function – SUPER NIGHTSHOT – Fader – Picture effect –...
  • Page 105 Recording still images on “Memory Stick” – Memory Photo recording (1) Set the POWER switch to MEMORY. Make sure that the LOCK is set to the right (unlock) position. (2) Press FN to display PAGE1 (p. 99). (3) Press MENU, then set CONTINUOUS to MULTI SCRN in settings.

  • Page 106: Self-Timer Memory Photo Recording

    Recording still images on “Memory Stick” – Memory Photo recording Self-timer memory photo recording You can make a memory photo recording with the self-timer. This mode is useful when you want to record yourself. (1) Set the POWER switch to MEMORY. Make sure that the LOCK switch is set to the right (unlock) position.

  • Page 107: Superimposing A Still Picture In The "Memory Stick" On A Moving Picture - Memory Mix

    Superimposing a still picture in the “Memory Stick” on a moving picture – MEMORY MIX You can superimpose a still picture you have recorded on a “Memory Stick” on top of the moving picture you are recording. M. CHROM (Memory chromakey) You can swap a blue area of a still picture such as an illustration or a frame with a moving picture.
  • Page 108 Superimposing a still picture in the “Memory Stick” on a moving picture – MEMORY MIX Before operation Insert a mini DV tape and a recorded “Memory Stick” into your camcorder. (1) Set the POWER switch to CAMERA. (2) In the standby mode, press FN to display PAGE1 (p. 16). (3) Press MEM MIX.
  • Page 109 Superimposing a still picture in the “Memory Stick” on a moving picture – MEMORY MIX Items to adjust M. CHROM The color (blue) scheme of the area in the still picture which is to be swapped with a moving picture M.

  • Page 110: Recording An Image From A Mini Dv Tape As A Still Image

    Recording an image from a mini DV tape as a still image Your camcorder can read moving picture data recorded on a mini DV tape and record it as a still image on a “Memory Stick”. Your camcorder can also take in moving picture data through the input connector and record it as a still image on a “Memory Stick”.

  • Page 111: Recording A Still Image From Other Equipment

    Recording an image from a mini DV tape as a still image Recording a still image from other equipment (1) Set the POWER switch to VCR and set DISPLAY in settings. (2) Set A/V t DV OUT in (3) Play back the recorded tape, or turn the TV on to see the desired program. The image of the other equipment is displayed on the LCD screen or in the viewfinder.

  • Page 112: Copying Still Images From A Mini Dv Tape - Photo Save

    Copying still images from a mini DV tape – Photo save Using the search function, you can automatically take in only still images from mini DV tapes and record them on a “Memory Stick” in sequence. Before operation •Insert a recorded mini DV tape and rewind the tape. •Insert a “Memory Stick”...
  • Page 113 Copying still images from a mini DV tape – Photo save When the access lamp is lit or flashing Never shake or strike your camcorder. As well do not turn the power off, eject a “Memory Stick” or remove the battery pack. Otherwise, the image data breakdown may occur.

  • Page 114: Viewing A Still Picture - Memory Photo Playback

    Viewing a still picture – Memory photo playback You can play back still images recorded on a “Memory Stick”. You can also play back 6 images at a time by selecting the index screen. Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY.

  • Page 115: Viewing A Still Picture – Memory Photo Playback

    Viewing a still picture – Memory photo playback Screen indicators during still image playback 6 / 40 100–0006 MEMORY PLAY – INDEX Data file name Playing back 6 recorded images at a time (index screen) You can play back 6 recorded images at a time. This function is especially useful when searching for a particular image.
  • Page 116 Viewing a still picture – Memory photo playback Note When displaying the index screen, the number appears above each image. This indicates the order in which images are recorded on the “Memory Stick”. These numbers are different from the data file names. Index screen Index screen is available in both the memory camera/memory playback mode.

  • Page 117: Enlarging Still Images Recorded On "Memory Stick"S - Memory Pb Zoom

    Enlarging still images recorded on “Memory Stick”s – Memory PB ZOOM You can enlarge still images recorded on a “Memory Stick”. Before operation Insert a “Memory Stick” into your camcorder. (1) In the memory playback mode, press FN, then select PAGE2 (p. 99). The PAGE2 screen appears.

  • Page 118: Playing Back Images Continuously - Slide Show

    Playing back images continuously – SLIDE SHOW You can automatically play back images in sequence. This function is useful especially when checking recorded images or during a presentation. Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY. Make sure that the LOCK is set to the right (unlock) position.

  • Page 119: Preventing Accidental Erasure - Image Protection

    Preventing accidental erasure – Image protection To prevent accidental erasure of important images, you can protect selected images. Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY. Make sure that the LOCK is set to the right (unlock) position.

  • Page 120: Deleting Images

    Deleting images You can delete images stored in a “Memory Stick”. Deleting selected images on the single screen Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY. Make sure that the LOCK is set to the right (unlock) position.

  • Page 121: Deleting Selected Images On The Index Screen

    Deleting images Deleting selected images on the index screen Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY. Make sure that the LOCK is set to the right (unlock) position. (2) Press INDEX on your camcorder or the Remote Commander to display the index.

  • Page 122: Deleting All The Images

    Deleting images Deleting all the images You can delete all the unprotected images in a “Memory Stick”. Before operation Insert a “Memory Stick” into your camcorder. (1) Set the POWER switch to MEMORY. Make sure that the LOCK is set to the right (unlock) position.

  • Page 123: Writing A Print Mark - Print Mark

    Writing a print mark – PRINT MARK You can specify the recorded still image to print out. This function is useful for printing out still images later. Your camcorder conforms with the DPOF (Digital Print Order Format) standard for specifying the still images to print out. Before operation Insert a “Memory Stick”...

  • Page 124: Additional Information

    Using the viewfinder You can operate with the touch panel using the viewfinder. (1) In the CAMERA/memory camera mode, pull out the viewfinder until it clicks, and then turn the LCD panel over and move it back to your camcorder body with the LCD screen facing out (p.

  • Page 125: Usable Cassettes

    Usable cassettes Selecting cassette types You can use the Hi8, Digital8, ED Betamax or * There are two types of mini DV cassettes: with cassette memory and without cassette memory. Tapes with cassette memory have We recommend that you use the tape with cassette memory. The IC memory is built in the cassette with cassette memory.

  • Page 126: Audio Mode

    Usable cassettes Audio mode 12-bit mode: The original sound can be recorded in stereo 1, and the new sound in stereo 2 in 32 kHz. The balance between stereo 1 and stereo 2 can be adjusted by selecting AUDIO MIX in the menu settings during playback. Both sounds can be played back.

  • Page 127: About I.link

    About the Name “i.LINK” i.LINK is a more familiar term for IEEE 1394 data transport bus proposed by SONY, and is a trademark approved by many corporations. IEEE 1394 is an international standard standardized by the Institute of Electrical and Electronics Engineers.
  • Page 128 DV jacks, see page 59. This unit can also be connected to other i.LINK (DV) compatible equipment made by SONY (e.g. VAIO series personal computer) other than video equipment. Before connecting this unit to a personal computer, make sure that application software supported by this unit is already installed on the personal computer.

  • Page 129: Troubleshooting

    If you run into any problem using your camcorder, use the following table to troubleshoot the problem. If the problem persists, disconnect the power source and contact your Sony dealer. If “C:ss:ss” appears on the LCD screen or in the viewfinder, the self-diagnosis display function has worked. See page 135.
  • Page 130 • The television’s video channel is not adjusted correctly. c Adjust it (p. 31). • The video head may be dirty. c Clean the heads using the Sony DVM12CLD cleaning cassette (not supplied) (p. 139). • The volume is turned to minimum.
  • Page 131 Troubleshooting In the recording and playback modes Symptom The power does not turn on. The end search function does not work. The end search function does not work correctly. The picture does not appear in the viewfinder. The battery pack is quickly discharged.
  • Page 132 Troubleshooting When operating using the “Memory Stick” Symptom Recording does not function. The image cannot be deleted. You cannot format the “Memory Stick”. Deleting all the images cannot be carried out. You cannot protect the image. You cannot write a print mark on the still image.
  • Page 133 VCR and your camcorder (p. 58, 59). • The camcorder is connected to DV equipment of other than Sony using the i.LINK cable (DV connecting cable). c Keep the connection, and follow the procedure on page 61 to 64.
  • Page 134 • The mirror mode is activated. This is not a malfunction. • Remove the battery pack and install it again. • Something is wrong with the battery pack. c Please cannot your Sony dealer or local authorzed Sony service facility.

  • Page 135: Self-Diagnosis Display

    C:32:ss E:61:ss E:62:ss If you are unable to rectify the problem even if you try corrective actions a few times, contact your Sony dealer or local authorized Sony service facility. Viewfinder or LCD screen Self-diagnosis display • C:ss:ss You can service your camcorder yourself.

  • Page 136: Warning Indicators And Messages

    Warning indicators and messages If indicators and messages appear in the viewfinder or on the LCD screen, check the following: See the page in parentheses “( )” for more information. The indicators and messages are displayed in yellow. Warning indicators Warning indicator as to file Slow flashing: •The file is corrupted.

  • Page 137: Warning Messages

    Warning indicators and messages Warning messages •CLOCK SET •FOR “InfoLITHIUM” BATTERY ONLY • CLEANING CASSETTE •COPY INHIBIT • FULL • • 16BIT • REC MODE • TAPE • “i.LINK” CABLE • FULL • • NO FILE • NO MEMORY STICK •...

  • Page 138: Using Your Camcorder Abroad

    Using your camcorder abroad Using your camcorder abroad You can use your camcorder in any country or area with the AC adaptor supplied with your camcorder within 100 V to 240 V AC, 50/60 Hz. When charging the battery pack, use a commercially available AC plug adaptor [a], if necessary, depending on the design of the wall outlet [b].

  • Page 139: Maintenance Information And Precautions

    LCD screen or in the viewfinder. If the above problem, [a] or [b] occurs, clean the video heads for 10 seconds with the Sony DVM12CLD cleaning cassette (not supplied). Check the picture and if the above problem persists, repeat cleaning.

  • Page 140: Cleaning The Lcd Screen

    Maintenance information and precautions Cleaning the LCD screen If fingerprints or dust make the LCD screen dirty, we recommend using a LCD Cleaning cloth (supplied) to clean the LCD screen. Removing dust from inside the viewfinder (1) Pull out the viewfinder 1. Remove the two screws 2 with a screwdriver (not supplied).
  • Page 141 Maintenance information and precautions Ajusting the LCD screen (CALIBRATION) The buttons on the touch panel may not work correctly. If this happens, follow the procedure below. (1) Set the POWER switch to OFF. (2) Eject the tape from your camcorder, then disconnect any connecting cable from your camcorder.
  • Page 142 •If any solid object or liquid get inside the casing, unplug your camcorder and have it checked by a Sony dealer before operating it any further. •Avoid rough handling or mechanical shock. Be particularly careful of the lens. •Keep the POWER switch set to OFF when you are not using your camcorder.

  • Page 143: Battery Pack

    •If you touch the liquid, wash it off with water. •If the liquid get into your eyes, wash your eyes with a lot of water and then consult a doctor. If any problem occurs, unplug your camcorder and contact your nearest Sony dealer.

  • Page 144: Specifications

    Specifications Video camera recorder System Video recording system 2 rotary heads Helical scanning system Audio recording system Rotary heads, PCM system Quantization: 12 bits (Fs 32 kHz, stereo 1, stereo 2), 16 bits (Fs 48 kHz, stereo) Video signal NTSC color, EIA standards Usable cassette Mini DV cassette with the mark printed...

  • Page 145: Quick Reference

    3 LCD screen/Touch panel (p. 16, 99) 4 Battery/Battery terminal cover (p. 12) 5 Eyecup This mark indicates that this product is a genuine accessory for Sony video products. When purchasing Sony video products, Sony recommends that you purchase accessories with this “GENUINE VIDEO ACCESSORIES”...
  • Page 146 The lens for your camcorder was developed jointly by Carl Zeiss, in Germany, and Sony Corporation. It adopts the MTF* measurement system for video camera and offers a quality as the Carl Zeiss lens. * MTF is an abbreviation of Modulation Transfer Function/Factor.
  • Page 147 Identifying the parts and controls wa MIC jack (PLUG IN POWER) (p. 78) Connect an external microphone (not supplied). This jack also accepts a “plug-in-power” microphone. ws AUDIO/VIDEO jack (p. 31, 34, 58) (LANC)/DIGITAL I/O jack (p.116) LANC stands for Local Application Control Bus System.
  • Page 148 Identifying the parts and controls wg Speaker wh Power lamp (p. 7, 18) wj i (headphones) jack When you use headphones, the speaker on your camcorder is silent. wk PHOTO button (p. 32, 103) wl Power zoom lever (p. 22) e;...
  • Page 149 Identifying the parts and controls ed FOCUS switch (p. 48) ef BACK LIGHT button (p. 23) eg “Memory Stick” slot (p. 98) eh Viewfinder lens adjustment lever (p. 19) ej Cassette lid (p. 15) ek Grip strap Fastening the grip strap Fasten the grip strap firmly.

  • Page 150: Remote Commander

    Identifying the parts and controls Remote Commander The buttons that have the same name on the Remote Commander as on your camcorder function identically to the buttons on your camcorder. 1 PHOTO button (p. 32, 103) 2 DISPLAY button (p. 28) 3 Memory control buttons (p.
  • Page 151 •Your camcorder works in the commander mode VCR 2. Commander modes 1, 2 and 3 are used to distinguish your camcorder from other Sony VCRs to avoid remote control misoperation. If you use another Sony VCR in the Commander mode VCR 2, we recommend changing the commander mode or covering the sensor of the VCR with black paper.

  • Page 152: Operation Indicators

    Identifying the parts and controls Operation indicators 1 Cassette memory indicator (p. 125) 2 Remaining battery time indicator (p. 23) 3 Zoom indicator (p. 22)/Exposure indicator (p. 46, 47)/Data file name indicator (p. 96) 4 Digital effect indicator (p. 42)/ MEMORY MIX indicator (p.

  • Page 153: Quick Function Guide

    Quick Function Guide Functions to adjust exposure (in the recording mode) •In a dark place •In insufficient light •In dark environments such as sunset, fireworks, or general night views •Shooting backlit subjects •In spotlight, such as at the theater or a formal event •In strong light or reflected light, such as at a beach in midsummer or on a ski slope...

  • Page 154: Index

    Index A, B AC adaptor ... 10 Adjusting viewfinder ... 19 Audio dubbing ... 78 AUDIO MIX ... 91 Audio mode ... 93 AUTO SHTR ... 90 A/V connecting cable ... 31, 58 BACK LIGHT ... 23 Battery pack ... 10 Beep ...
  • Page 156 Sony Corporation Printed in Japan...

This manual is also suitable for:

Dcr-pc5

Table of Contents

Save PDF
