A&D UC-321 Instruction Manual

Precision health scale
Hide thumbs Also See for UC-321:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

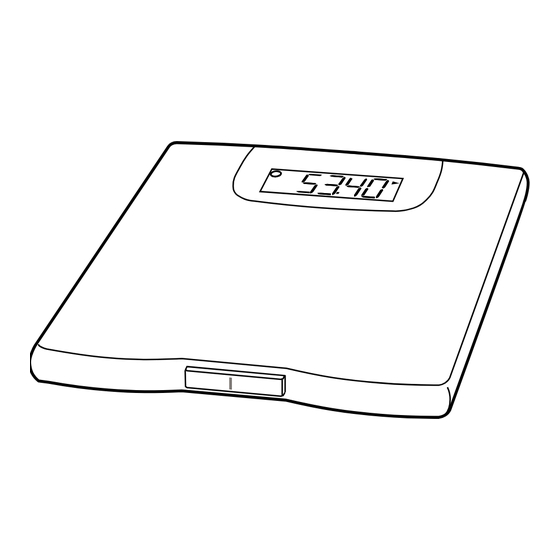

Precision Health Scale
Model UC-321
Precautions
Please read this booklet before using your scale.
Do not place your scale on a soft, wet or slippy floor.
It is recommended you place your scale on the solid and level floor.
Your scale contains delicate, high-precision parts. Avoid extremes in
temperature, humidity, direct sunlight, shock, moisture and dust.
Do not step on your scale with your feet wet so as to prevent you from
slipping and falling down. It is recommended that you step on the cen-
ter portion of your scale gently.
Do not step on the display window.
Do not open the case of the scale.
If you press and hold the measurement switch, the battery power is
consumed.
Indications for Use
The UC-321 was designed for adult use at home.
Compliance with European Directive
The scale complies with the statutory EMC (Electromagnetic Compatibility) directive 89/
336/EEC and the Low Voltage Directive 73/23/EEC. Note: The displayed value may be
adversely affected under extreme electromagnetic influences.
WM:PD4000285
Precautions ................................... 1
Scale Components ........................ 2
Display Symbols ............................ 3
Operations
Normal Measurement .................... 4
Memory Function ........................... 6
Target Function .............................. 8
BMI Indication .............................. 10
References
Specifications .............................. 12
Maintaining the Scale .................. 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC-321 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for A&D UC-321

Summary of Contents for A&D UC-321

  • Page 1: Table Of Contents

    If you press and hold the measurement switch, the battery power is consumed. Indications for Use The UC-321 was designed for adult use at home. Compliance with European Directive The scale complies with the statutory EMC (Electromagnetic Compatibility) directive 89/ 336/EEC and the Low Voltage Directive 73/23/EEC.

  • Page 2: Scale Components

    Scale Components Back Display Function Indicator OK Mark Slide Switch Low Battery Mark Front Measurement Switch Battery Compartment The following four measurements can be selected by the function switch. Refer to “Normal Measurement” and “Measuring a baby or an animal”. WEIGHT The function to measure your weight, the weight of a baby or animal.

  • Page 3: Display Symbols

    Display Symbols OK mark. This mark is displayed, when measurement display is stable. Low battery mark. If this mark is displayed, replace the batteries with new ones. Function indication. The current function is indicated. Installing (or Replacing) Batteries Caution Insert each battery with its positive (+) and negative (-) terminals properly aligned with the corresponding marks on the scale.

  • Page 4: Normal Measurement

    Normal Measurement Measuring Your Weight Set the slide switch to “WEIGHT”. Press the measurement switch gently. All display segments are indicated for several seconds, then displaying 0.00 kg and the mark.. Step on your scale. Step on your scale gently. When the mark disappears, the measurement is started.
  • Page 5 Measuring a Baby or an Animal Set the slide switch to “WEIGHT”. Press the measurement switch gently and step on your scale. All display segments are indicated for several sec- onds. Step on the scale without any baby or ani- mal in your hands before displaying 0.00 kg.

  • Page 6: Memory Function

    The Memory Function Up to 31 weight data can be stored in memory. The 32nd data is stored by deleting the oldest stored data. The difference from the previous result is displayed automatically. Storing a Current Weight. Set the slide switch to “MEMORY”. Press the measurement switch gently.
  • Page 7 Displaying Weight Data Stored in the Scale The stored measurement data is displayed in order beginnings with the most recent measurement. Set the slide switch to “MEMORY”. Press and hold the measurement switch gently in the condition of turning off the scale.

  • Page 8: Target Function

    The Target Function The difference between the preset target weight and the current weight can be displayed. Presetting a New Target Weight Set the slide switch to “TARGET”. Press and hold the measurement switch gently in the condition of displaying nothing.
  • Page 9 Comparing a Current Weight with a Preset Target Weight Set the slide switch to “TARGET”. Press the measurement switch gently. The stored target weight is displayed. Step on the scale. Step on your scale gently after displaying 0.00 kg and the mark.

  • Page 10: Bmi Indication

    BMI Indication Body Mass Index or BMI (kg/m ), based Underweight Below 18.5 on an individual’s height and weight, is Normal 18.5 to 24.9 a helpful indicator of underweight, over- weight or obesity, in adults. Overweight 25.0 to 29.9 According to the new NHLBI (National Obesity 30.0 and Above Institutes of Health) guidelines, the BMI...
  • Page 11 Displaying the BMI Score Set the slide switch to “BMI”. Press the measurement switch gently. The preset height is displayed. Step on the scale. Step on your scale gently after displaying 0.00 kg and the mark. When the mark disap- pears, the measurement is started.

  • Page 12: Specifications

    Specifications Digital display Liquid crystal display, 25 mm character height Maximum capacity 150 kg Minimum display 0.05 kg Power source Four type AA batteries (R6P, 1.5 volt x 4) Battery life Approximately 2000 measurements Accessories Instruction manual Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
