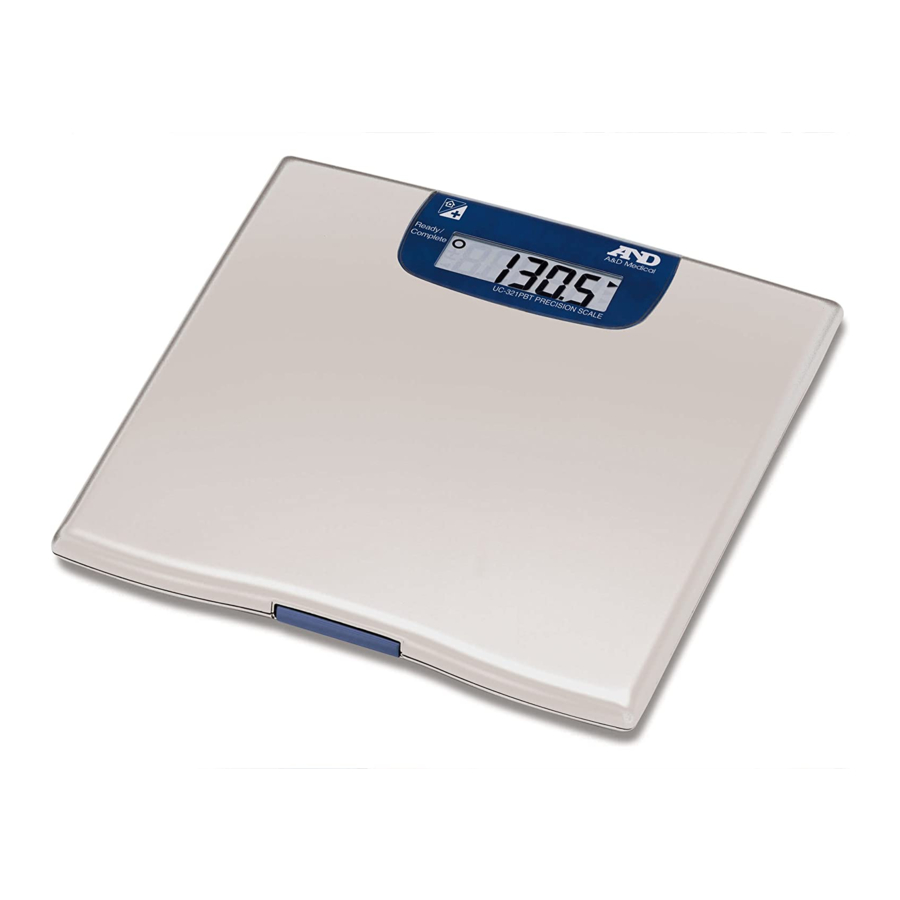

UC-321PBT/UC-321PBT-G
Precision Health Scale

Precautions

Please read this booklet before using your scale.
Do not place your scale on a soft, wet or slippery floor.
It is recommended that the scale be used on a solid
level surface, such as tile, wood, or laminate flooring. If
the scale must be used on a carpet, be sure to attach
the plastic feet as shown on Page 6.
Place your scale on a solid level flooring surface. Your
scale contains delicate, high-precision parts. Avoid ex-
tremes in temperature, humidity, direct sunlight, shock,
moisture and dust.
Do not step onto your scale with wet feet. Make certain
that feet are dry to prevent slipping or serious injury.
Gently step onto the center portion of your scale.
Do not place feet on the display window.
Holding the measurement switch for extended periods
will shorten battery life.
Indications for Use
This scale is designed for home and clinical use.
Instruction Manual
Precautions ...................................... 1
Scale Components ............................ 2
Display Symbols ................................ 3
Operations
Normal Measurement ........................ 4
References
Specifications .................................... 7
Maintaining the Scale ......................... 7
Before Requesting Service ................. 8
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC-321PBT and is the answer not in the manual?

Questions and answers

Related Manuals for A&D UC-321PBT

Summary of Contents for A&D UC-321PBT

  • Page 1: Indications For Use

    Instruction Manual Before Use Precautions ........1 Scale Components ......2 UC-321PBT/UC-321PBT-G Display Symbols ........ 3 Installing (or Replacing) Batteries ..3 Precision Health Scale Operations Normal Measurement ......4 Measuring weight on a carpet .... 6 References Specifications ........7 Maintaining the Scale ......

  • Page 2: Scale Components

    Scale Components Display Back Ready/Complete Symbol Slide Mode Low Battery Mark Front Measurement Switch Battery Compartment The following measurements can be selected by the slide switch and are clas- sified into two categories - WEIGHT A and WEIGHT B. Within WEIGHT A and WEIGHT B, you have a choice to select and have your weight displayed in kg or lb.

  • Page 3: Display Symbols

    Display Symbols Ready/Complete symbol. This symbol is displayed when the measure- ment display is stable. Low battery mark. If this mark is displayed, replace the batteries with new ones. Installing (or Replacing) Batteries Caution Insert the battery with the positive (+) and negative (-) terminals properly aligned with the corresponding symbols in the battery compartment.

  • Page 4: Measuring Your Weight

    Normal Measurement Measuring Your Weight Set the slide switch to the correct mode. Example: Set the slide switch to “WEIGHT B”. Press the measurement switch gently. All display segments are visible for several sec- onds. Wait until the symbol is displayed. Wait until the display 0.0 kg /0.0 lb and Ready/ Complete symbol are displayed.

  • Page 5: Measuring An Infant Or Small Animal

    Measuring an Infant or Small Animal Set the slide switch to the correct mode. Example: Set the mode switch to “WEIGHT B”. Press the measurement switch gently and step on your scale. All display segments are indicated for sev- eral seconds. Step on the scale without any baby or animal in your hands before display- ing 0.0 kg /0.0 lb.
  • Page 6 Measuring weight on a carpet It is recommended that the scale be used on a solid level surface, such as tile, wood, or laminate flooring. If the scale must be used on a carpet, be sure to attach the plastic feet. How to insert the add-on feet There are two pins on each add-on foot side.

  • Page 7: Compliance With Fcc Rules

    Specifications UC-321PBT Digital display Liquid crystal display, 25 mm character height Maximum capacity 200 kg / 450 lb Minimum display 0.1 kg / 0.2 lb Wireless communication WML-30AH (Mitsumi Electronics Co. Ltd.) Power source Four type AA batteries (R6P, 1.5 volt x 4, not included)

  • Page 8: How The Wireless Connection Works

    How the Wireless Connection Works At the end of the measurement, your weight will be sent automatically to your health monitoring device. You do not need to do anything. If the health moni- toring device is not working or is not within range of the scale, the weight will be stored in the scale's memory (up to 40 sets).
