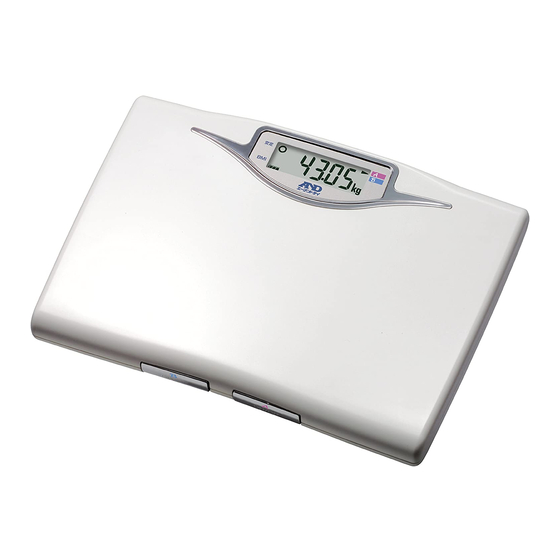

Precision health scale
Hide thumbs Also See for UC-322:
Table of Contents

Advertisement

Quick Links

Download this manual
Precision Health Scale
Model UC-322
Precautions
Please read this booklet before using your scale.
Your scale contains delicate, high-precision parts. Avoid extremes in
temperature, humidity, direct sunlight, shock, moisture and dust.
Do not place your scale on a soft, wet or slippy floor. Place your scale
on a solid and level floor.
Do not step on your scale with your feet wet so as to prevent you from
slipping and falling down. Step on the center portion of your scale gently.
Do not step on the display window.
Do not disassemble or modify your scale.
Keep your scale free of dust and foreign materials.
Holding the switch for extended periods will shorten battery life.

Indications for Use

The UC-322 was designed to be used indoors.

Compliance with European Directives

The scale complies with the statutory EMC (Electromagnetic Compatibility) directive 89/
336/EEC and the Low Voltage Directive 73/23/EEC. Note: The displayed value may be
adversely affected under extreme electromagnetic influences.
WM+PD4001090A
Precautions ............................................. 1
Scale Components .................................. 2
Display Symbols ..................................... 3
Maintaining the Scale .............................. 4
Operations
Resetting Your Height ............................. 6
References
Specifications ........................................ 12
Before Requesting Service ................... 12
How to Dispose of the Scale ................. 12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC-322 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for A&D UC-322

Summary of Contents for A&D UC-322

  • Page 1: Table Of Contents

    Before Use Precautions ..........1 Scale Components ........2 Precision Health Scale Display Symbols ........3 Installing (or Replacing) Batteries ... 4 Model UC-322 Maintaining the Scale ......4 Measuring Your Weight on a Carpet ..5 Before Measuring Your Weight ....5 Operations Resetting Your Height ......

  • Page 2: Scale Components

    Scale Components Underside - 2 -...

  • Page 3: Display Symbols

    Display Symbols Symbol Description Operation This symbol appears when the measurement display is stable. Refer to “Measuring Your This symbol appears when the Weight (With the preset BMI score is displayed after height)” on page 7. weight measurement. Refer to “Presetting Your This symbol appears when you are presetting your height.

  • Page 4: Installing (Or Replacing) Batteries

    Installing (or Replacing) Batteries Caution Insert each battery with its positive (+) and negative (-) terminals properly aligned with the corresponding symbols in the battery compartment. If you fail these battery directions, it may cause battery leakage. Replace all four batteries with new ones, when the symbol appears flashing.

  • Page 5: Measuring Your Weight On A Carpet

    Measuring Your Weight on a Carpet Please use the accessory add-on feet if you wish to use the Precision Health Scale on a carpet. Steps for Installing the Add-on Feet Each add-on foot has two pins. Match those pins to the holes on the scale leg and insert firmly.

  • Page 6: Resetting Your Height

    Presetting Your Height The scale can save a height between 30 cm and 220 cm in increments of 0.1 cm. The procedure below is an example of how to preset the height of user 1 to 179.1 cm. With the scale turned off, press and hold the ON/OFF 1 switch.

  • Page 7: Measuring Your Weight (With The Preset Height)

    Measuring Your Weight (With the preset height) Up to 15 weight data can be saved in memory, each for user 1 and for user 2. Additional measurements are saved by deleting the oldest data in memory. After measurement, the BMI score is displayed. The procedure below is an example of how to measure the weight of user 1 with the preset height of 179.1 cm.

  • Page 8: Measuring Your Weight (With No Preset Height)

    Measuring Your Weight (With no preset height) Up to 15 weight data can be saved in memory, each for user 1 and for user 2. Additional measurements are saved by deleting the oldest data in memory. The procedure below is an example of how to measure the weight of user 1, of whose height has not been preset.

  • Page 9: Measuring Your Weight (Guest Mode)

    Measuring Your Weight (Guest mode) The guest mode is a procedure to measure a weight without saving the weight data. Press the ON/OFF 1 and ON/OFF 2 switches at the same time. 88888 appears flashing. Wait until the OK symbol appears. Wait until the display 0.00 kg and the OK symbol appear.

  • Page 10: Displaying Data Saved In Memory

    Displaying Data Saved in Memory The procedure below is an example of how to display the weight data of user 1 that was saved in memory. With the scale turned off, press and hold the ON/OFF 1 switch. To display the weight data of user 2, press and hold the ON/OFF 2 switch.

  • Page 11: Deleting Data Saved In Memory

    Deleting Data Saved in Memory The procedure below is an example of how to delete the weight data of user 1 that was saved in memory. With the scale turned off, press and hold the ON/OFF 1 switch. To delete the weight data of user 2, press and hold the ON/OFF 2 switch.

  • Page 12: Specifications

    Specifications Measuring method Electric resistance Digital display Liquid crystal display, 18 mm character height Maximum capacity (MAX) 150 kg Minimum display (d) 0.05 kg Power source Four type AA batteries (R6P, 1.5 volt x 4) Battery life Approximately 2000 measurements Dimensions 210 (D) x 295 (W) x 40 (H) mm Weight...
