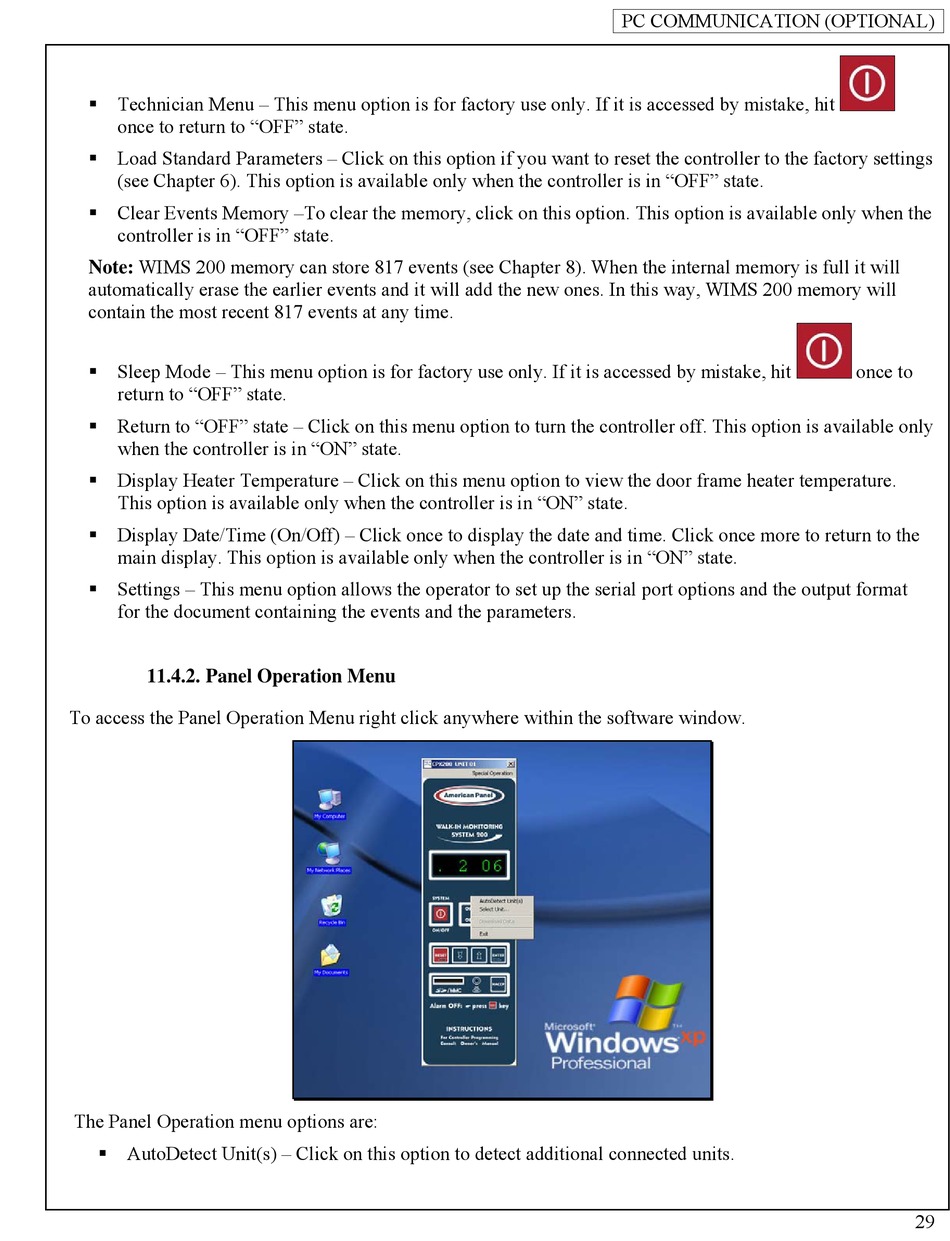

Panel Operation Menu - American Panel Walk-in Monitoring System 200 Owner's Manual

 Technician Menu – This menu option is for factory use only. If it is accessed by mistake, hit
once to return to "OFF" state.
 Load Standard Parameters – Click on this option if you want to reset the controller to the factory settings
(see Chapter 6). This option is available only when the controller is in "OFF" state.
 Clear Events Memory –To clear the memory, click on this option. This option is available only when the
controller is in "OFF" state.
Note: WIMS 200 memory can store 817 events (see Chapter 8). When the internal memory is full it will
automatically erase the earlier events and it will add the new ones. In this way, WIMS 200 memory will
contain the most recent 817 events at any time.
 Sleep Mode – This menu option is for factory use only. If it is accessed by mistake, hit
return to "OFF" state.
 Return to "OFF" state – Click on this menu option to turn the controller off. This option is available only
when the controller is in "ON" state.
 Display Heater Temperature – Click on this menu option to view the door frame heater temperature.
This option is available only when the controller is in "ON" state.
 Display Date/Time (On/Off) – Click once to display the date and time. Click once more to return to the
main display. This option is available only when the controller is in "ON" state.
 Settings – This menu option allows the operator to set up the serial port options and the output format
for the document containing the events and the parameters.

11.4.2. Panel Operation Menu

To access the Panel Operation Menu right click anywhere within the software window.
The Panel Operation menu options are:
 AutoDetect Unit(s) – Click on this option to detect additional connected units.
PC COMMUNICATION (OPTIONAL)
once to
29
