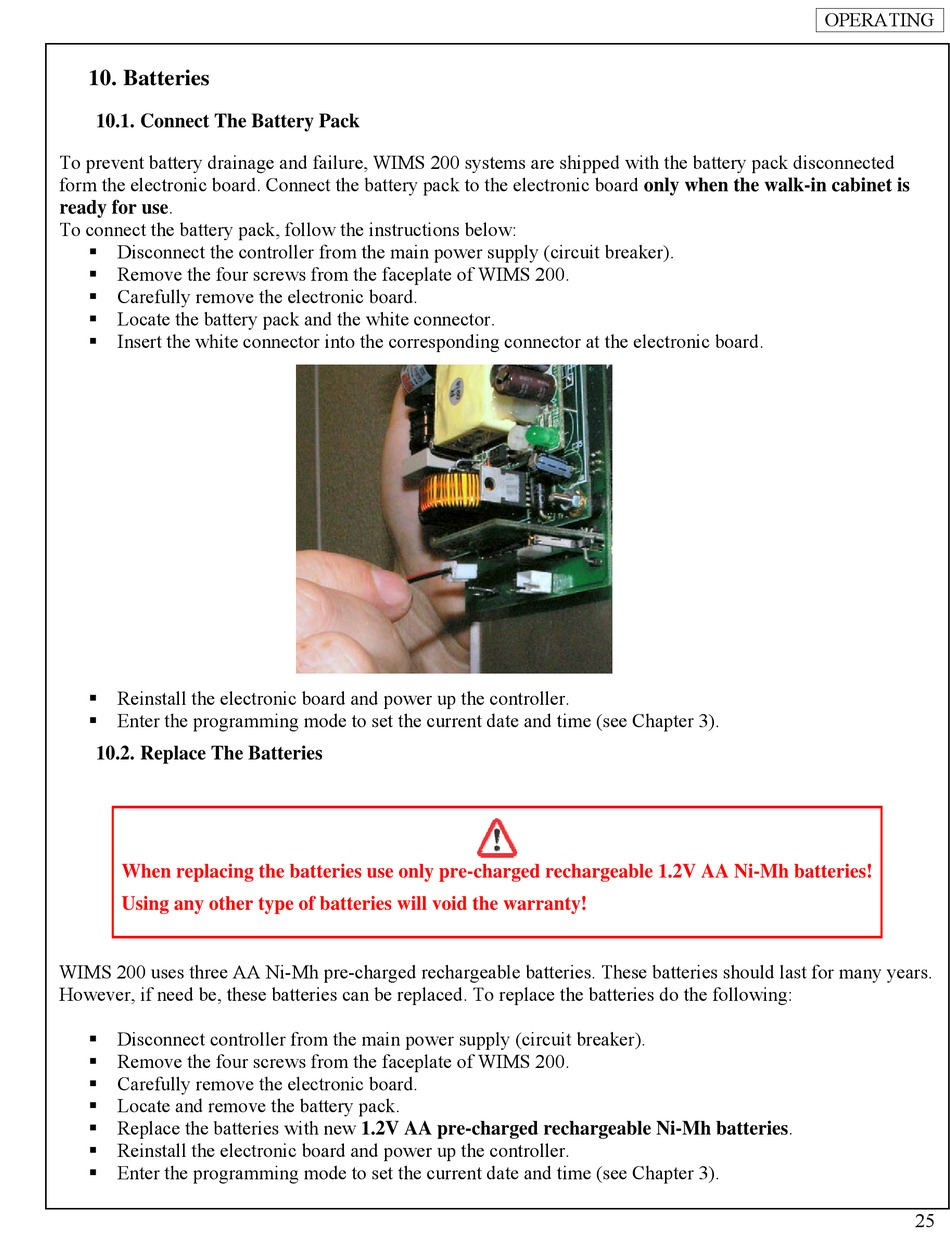

10. Batteries

10.1. Connect The Battery Pack

To prevent battery drainage and failure, WIMS 200 systems are shipped with the battery pack disconnected
form the electronic board. Connect the battery pack to the electronic board only when the walk-in cabinet is
ready for use.
To connect the battery pack, follow the instructions below:
 Disconnect the controller from the main power supply (circuit breaker).
 Remove the four screws from the faceplate of WIMS 200.
 Carefully remove the electronic board.
 Locate the battery pack and the white connector.
 Insert the white connector into the corresponding connector at the electronic board.
 Reinstall the electronic board and power up the controller.
 Enter the programming mode to set the current date and time (see Chapter 3).

10.2. Replace The Batteries

When replacing the batteries use only pre-charged rechargeable 1.2V AA Ni-Mh batteries!
Using any other type of batteries will void the warranty!
WIMS 200 uses three AA Ni-Mh pre-charged rechargeable batteries. These batteries should last for many years.
However, if need be, these batteries can be replaced. To replace the batteries do the following:
 Disconnect controller from the main power supply (circuit breaker).
 Remove the four screws from the faceplate of WIMS 200.
 Carefully remove the electronic board.
 Locate and remove the battery pack.
 Replace the batteries with new 1.2V AA pre-charged rechargeable Ni-Mh batteries.
 Reinstall the electronic board and power up the controller.
 Enter the programming mode to set the current date and time (see Chapter 3).
