PC COMMUNICATION (OPTIONAL)

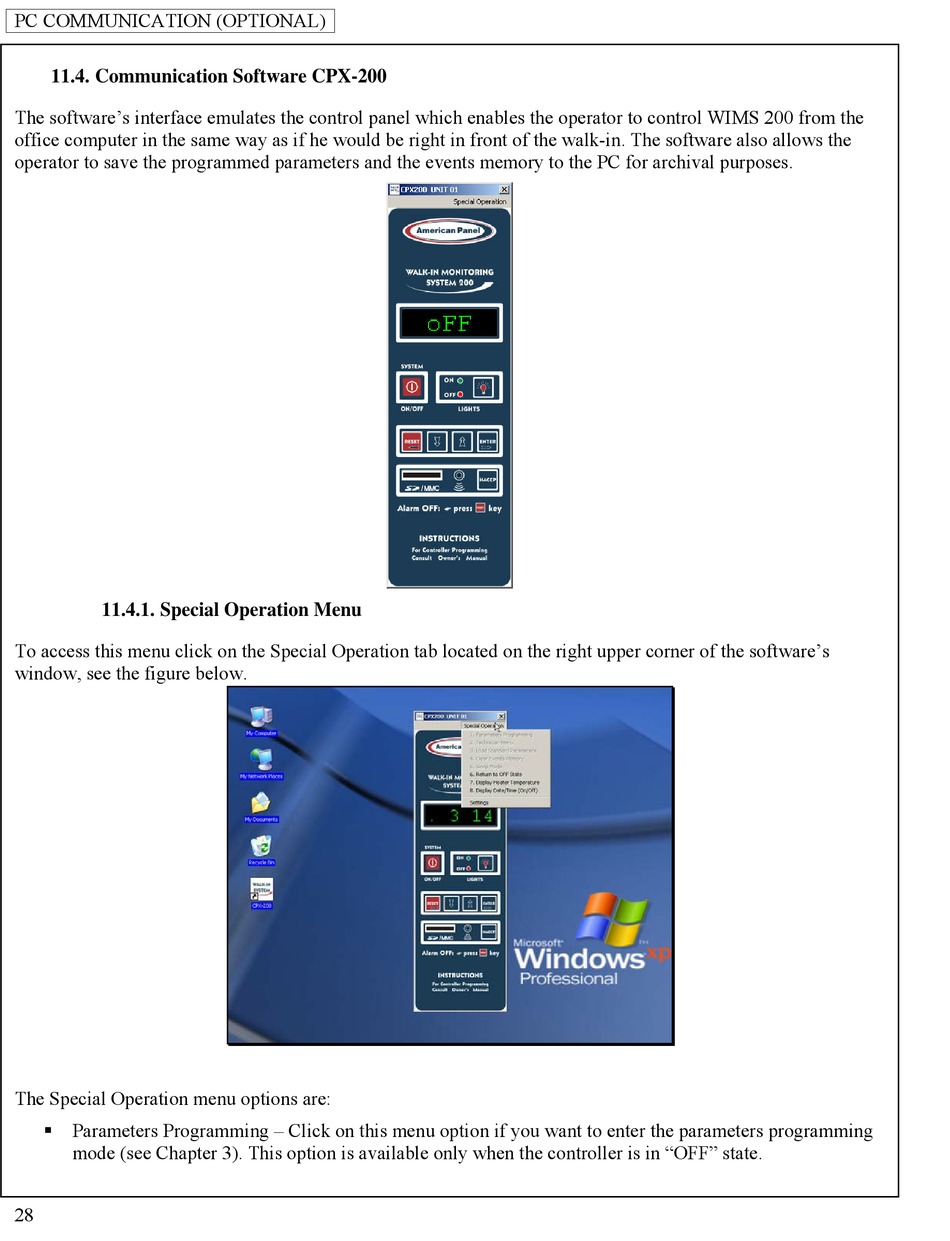

11.4. Communication Software CPX-200

The software's interface emulates the control panel which enables the operator to control WIMS 200 from the
office computer in the same way as if he would be right in front of the walk-in. The software also allows the
operator to save the programmed parameters and the events memory to the PC for archival purposes.

11.4.1. Special Operation Menu

To access this menu click on the Special Operation tab located on the right upper corner of the software's
window, see the figure below.
The Special Operation menu options are:
 Parameters Programming – Click on this menu option if you want to enter the parameters programming
mode (see Chapter 3). This option is available only when the controller is in "OFF" state.
28
