American Panel Walk-in Monitoring System 200 Owner's Manual page 21

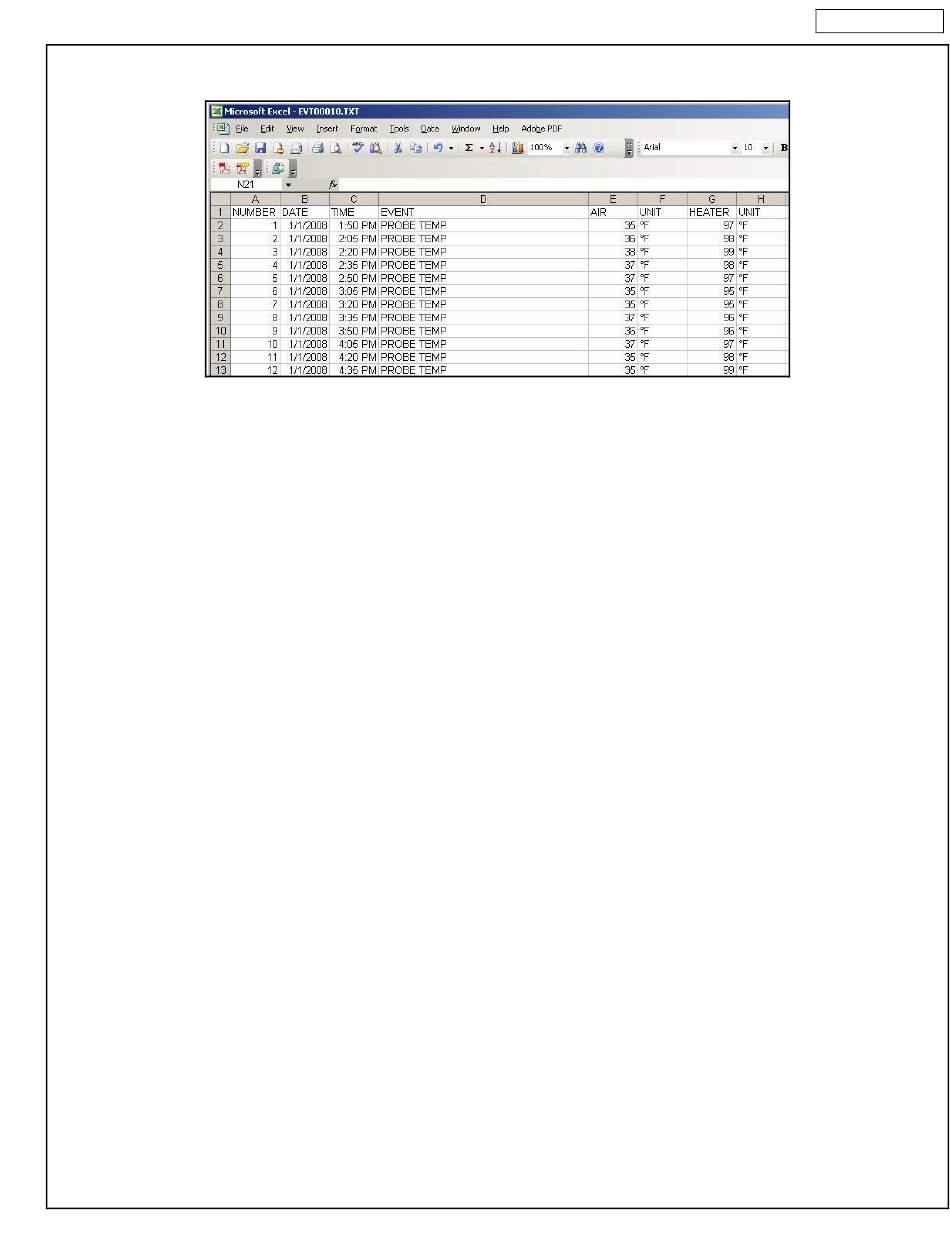

Column A represents the index number of the event
Column B indicates the occurrence date of the event
Column C indicates the occurrence time of the event
Column D indicates the event type (see below for a list of the possible event types).
Columns E & F indicate the temperature of the air inside the walk-in.
Columns G & H indicate the door frame heater temperature.
Event Types:
POWER ON
SLEEP MODE
PROBE TEMP
POWER FAIL
PROBE TEMP PFAIL
BATTERY FAIL
BATTERY CUT
SYSTEM ON
SYSTEM OFF
AIR HIGH ALARM
AIR LOW ALARM
PANIC ALARM
RESET PANIC
DOOR OPEN
DOOR CLOSED
AIR PROBE N/G
HEATER PROBE N/G
BREAK
SHORT
– this event occurs when the board is powered
– sleep mode is a one time event that enables the controller to save the batteries
while in transit to the customer,
– reads the air and door frame heater temperature at preset time intervals (15
min. default)
– occurs in the event of an electrical power failure to the controller
– reads the air and door frame heater temperature during the power failure event
– if the electrical power failure lasts for an extended period of time, the battery
will eventually fail
– occurs immediately after the battery fail event, the battery is disconnected from
the system
– occurs when the system is turned "ON" from the "OFF" mode
– occurs when the system enters the "OFF" mode
– occurs when the air inside the walk-in goes above the preset high limit
– occurs when the air inside the walk-in goes below the preset low limit
– occurs when the panic button inside the walk-in is pressed
– occurs when the panic alarm is reset
– the door switch enables WIMS 200 to record when the walk-in door is opened
– the door switch enables WIMS 200 to record when the walk-in door is closed
– occurs when the air temperature probe fails
– occurs when the temperature probe for the door frame heater fails
– occurs when the temperature probe fails because the probe wire does not have
continuity
– occurs when the temperature probe fails because there is a short-circuit in the
probe wire
OPERATING
