Summary of Contents for Viadrus ViaKON 24 B

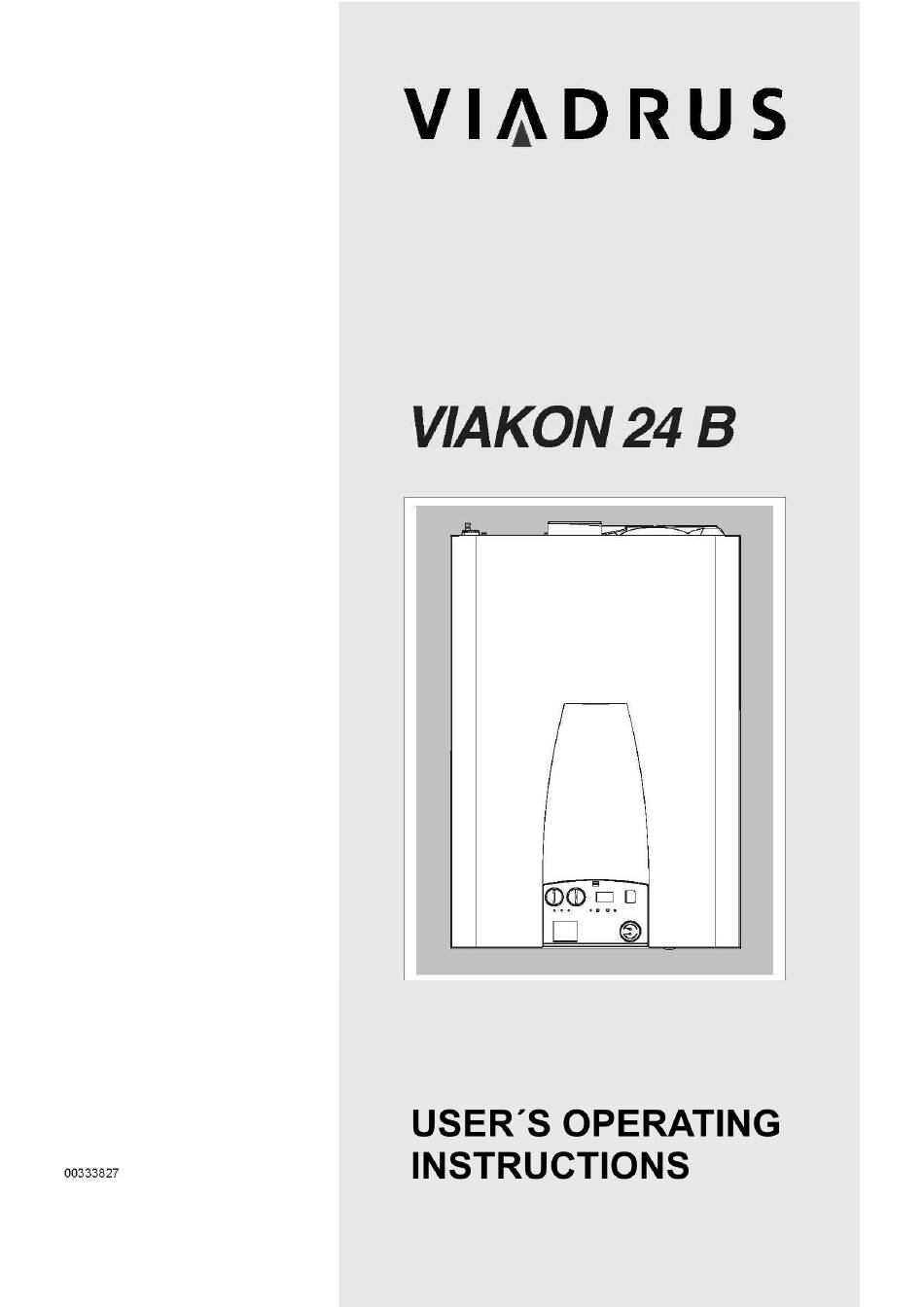

- Page 1 17/2013...
-
Page 2: Table Of Contents
Any other use of this appliance will be considered improper. VIADRUS declines any responsibility for any damages or injuries caused by an improper use; in this case the risk is completely at the user’s responsibility. In order to use the appliance according to the scopes it was designed for it is essential to carefully follow the instructions indicated in this guide. -
Page 3: Information To Be Handed Over To The User (By The Installer)
Bad or irregular servicing could compromise the safe operation of the appliance, and could cause injury to persons, animals or damage to property for which VIADRUS shall not be held liable. Alterations to parts connected to the appliance. Do not carry out any alterations to the following parts: •... -
Page 4: Operating Instructions
User’s operating instructions OPERATING INSTRUCTIONS CONTROL PANEL A = Domestic hot water temperature control F = Not active B = Summer/winter selector + Central heating temperature control knob G = Reset /chimneysweeper mode key C = Power On indicator led (Green) H = Lock-out led indicator (Red) D = Central heating mode indicator led I = System temperature control/pressure gauge... - Page 5 The function of this key is to reset correct boiler operation after the cut-off device has shutdown the boiler (red led indicator illuminated) If the cut-off device operates more than 3 times, causing boiler shutdown, do not try to reset the boiler yourself. Contact your nearest VIADRUS authorized After Sales Service Centre.
-
Page 6: Check List Before Commissioning The Boiler
User’s operating instructions Reset key with “Chimneysweeper” mode WARNING! This operation can be carried out exclusively by personnel from authorized After Sales Service centres. The user is NOT authorized to activate the following described mode. By pressing this key the “Chimneysweeper” mode is activated. This means that the boiler will be forced to operate at the maximum (or minimum) output so as to permit the adjustment operations and the combustion analysis. -
Page 7: Boiler Operation
User’s operating instructions BOILER OPERATION Domestic hot water production Position the domestic hot water control knob (A) to the desired DHW temperatur • with the knob turned at 10% to the left = 25°C • with the knob turned completely to the right = 60°C Note: By adjusting the DHW temperature at a temperature very close to the one actually used will avoid mixing hot water with cold water, thus resulting in fuel savings and a significant... -
Page 8: Frost Protection Mode
0,8 and 1 bar). When the correct pressure value has been reached the led will switch off automatically and normal boiler operation will be restored. DANGER! If the system has to be frequently restored please contact an authorized VIADRUS After Sales Service Centre. - Page 9 If the cut-off device operates repeatedly (a maximum of 3 times), causing boiler shutdown, do not try to relight the boiler your self. Contact your nearest VIADRUS authorized After Sales Service Centre. WARNING: If the boiler goes into lock-out and/or the leds continue to flash repeatedly or remain illuminated do not try to reset the boiler yourself.
-
Page 10: Instructions For Disposal Of Product After Its Service Life Expiration
GUARANTEE AND LIABILITY FOR DEFECTS VIADRUS a.s. provides the guarantee for boilers 24 months after the boiler putting into operation, but maximum 30 months after the date it was dispatched from the manufacturing factory. The manufacturer requires for the guarantee applicability: In the meaning of the Act No. - Page 11 Information for customer Packaging identification Assessment reference PE Plastic sacks, folie, corrugated board, iron and plastic fix line Identification of principal materials used. Paper, Polyethylene, iron, wood Part 1: Summary of assessment Standard/Report Assessment requirement Claim Note 1.1 Prevention by source reduction 1.2 Heavy metals and ensure below maximum permitted levels for...
- Page 12 VIADRUS a.s. Bezručova 300, 735 81 Bohumín Tel.: +420 596 083 050 / Fax: + 420 596 082 822 www.viadrus.cz / info@viadrus.cz The producer declines every responsibility for the possible inaccuracies if owed to errors of transcript or press. Also reserves the right to bring those changes that will hold necessary to it own products or profits, without...
