Page 1

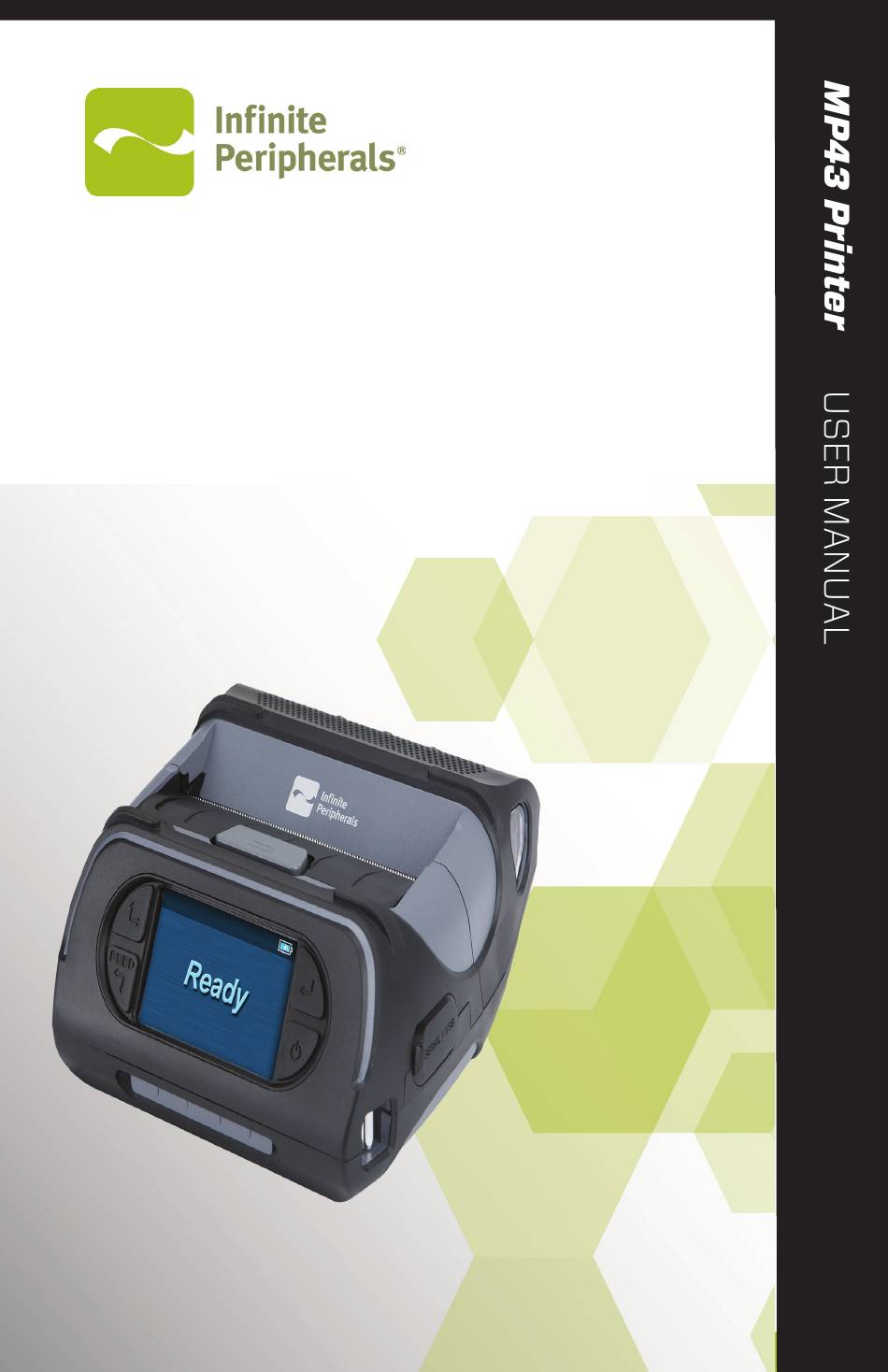

MP43 Peeler & Non–Peeler Mobile Printer Page 1...
Page 2
CONTACT INFORMATION Mobility Sales/ Infinite Peripherals, Inc. 17681 Mitchell N Technical Support Center Irvine, CA 92614 Toll Free: (866) 278-7860 Office: (949) 222-0300 Infinite Peripherals, Inc. 2312 Touhy Ave. Headquarters/ Elk Grove Village, IL 60007 Main Warehouse Toll Free: (800) 278-7860...
GUIDELINES FOR USE ����������������������������������������������������������������������������������������������������������������� Environmental ���������������������������������������������������������������������������������������������������������������������� Mechanical ������������������������������������������������������������������������������������������������������������������������� Electrical ���������������������������������������������������������������������������������������������������������������������� Operational ����������������������������������������������������������������������������������������������������������������� BOX CONTENTS ������������������������������������������������������������������������������������� Before Using Your MP43 Printer ��������������������������������������������������������������������������������������������������������������������� ACCESSORIES ���������������������������������������������������������������������������������������������������������� GETTING STARTED �������������������������������������������������������������������������������������� Warnings, Cautions and Notes ����������������������������������������������������������������������������������������� DEVELOPING APPLICATIONS ��������������������������������������������������������������������������������������������������������� ABOUT YOUR MP43 �������������������������������������������������������������������������������������������� INSTALLING THE BATTERY ������������������������������������������������������������������������������������������������������...
Page 4
����������������������������������������������������������������������������������������������������������������������� WARRANTY ���������������������������������������������������������������������������������������������������������������������� DISCLAIMER ����������������������������������������������������������������������� PRODUCT RETURNS AND SERVICING ���������������������������������������������������������������������������������������������������������� SYMBOLS FOR USE ������������������������������������������������ FEDERAL COMMUNICATIONS COMMISSION (FCC) �������������������������������������������������������� Federal Communications Commission Statement ������������������������������������������������������������������������ FCC RF Radiation Exposure Statement Page 4...
COMPATIBILITY Made for iOS 2�1 and higher TRADEMARK CREDITS Infinite Peripherals, Mobilize Your Enterprise, Linea Pro, Infinea, Infinea Tab and Infinea Omni are trademarks of Infinite Peripherals, Inc� All other trademarks are the property of their respective owners� Page 5...
GUIDELINES FOR USE Environmental Avoid using the printer under the following conditions, as it may result in printer failure and/or serious personal injury� • Anywhere printer may be exposed to excessive dust, moisture, or direct sunlight/heat� • Slanted surfaces, or those surfaces which may be subject to strong shocks or vibrations�...
• Use any AC adapter or power cord other than those provided with the printer and/or specified by an Infinite Peripherals account representative or certified service center� • Bend the AC power cord or place heavy objects on top of it� Doing so may cause damage to the cord and/or cause fire or electric shock�...
• Carefully inspect the contents inside of the packaging for any signs of damage� If there are signs of damage, do not attempt to use the unit� Notify your account executive or contact Infinite Peripherals technical support at support@ipcmobile�com� •...
ACCESSORIES Please visit our website at ipcmobile�com, or contact your Infinite Peripherals account representative, for additional information about our current and future product accessory offerings� Page 9...
CAUTION: property� Important points and tips about the product. Note: First Steps The MP43 allows you to print information from your smartphone over Wi-fi or Bluetooth� The following helps you get your MP43 mobile printer ready for use� Step Purpose...
Software is not provided with your MP43 mobile printer� Please contact your reseller or Infinite Peripherals for Third Party software solutions� Integrating the MP43 with your mobile application requires the use of the Infinite Peripherals Universal SDK� The SDK incorporates an API specifically for developing applications to use the barcode scanner, magnetic strip and contactless reader functionalities of the MP43�...
ABOUT YOUR MP43 COVER OPEN BUTTON DISPLAY SERIAL BATTERY BELT CLIP CONNEC- SHOULDER STRAP RING CHARGER CONNECTOR Page 12...
Page 13
INSTALLING THE BATTERY The MP43 uses a Lithium Ion rechargeable battery that must be installed prior to operating the printer� Before first use, the battery pack should be charged for at least 3 hours and 30 minutes via the printer or in an optional external cradle�...
Page 14
Place a new battery pack in the battery compartment and replace the cover� Disconnect all cables including AC adaptor and turn off the MP43 printer before attempting to remove the battery. Dispose of used batteries in accordance to federal law. This may include disposing of the batteries at a recycling center or hazardous waste collection site.
Page 15
USING YOUR MP43 Installing a Standard Paper Roll Before replacing the paper roll or closing the cover, ensure the thermal head is cool� The thermal head may be very hot immediately after printing� Touching the thermal head while hot may result in burn injuries.
Page 16
INSTALLING THE EXTERNAL PAPER GUIDES 1� Using a sharp tool, press the circle in the middle of the the external paper guides to detach them from the printer� This separates the outer cover� 2� Install the inner and outer guides by pressing the three points firmly to align the inner guide with the outer guide�...
Page 17
DIAGNOSTIC SELF-TEST On initial installation or for troubleshooting, run a diagnostic test for data about the firmware version, emulation, code page, sensor and interface settings, and so forth� Note: If you do not find any issues during the test, examine other devices and software to resolve any issues.
Page 18
(OPTIONAL) PERIPHERALS CONNECTION The printer can communicate with other devices via Bluetooth, Wi-Fi, or cable interface connection� You can connect the printer to devices equipped with Bluetooth or Wi-Fi communication such as PDDs, PCs, and so forth by using the appropriate connection supported on the device�...
Page 19
Printer-Head and Platen Roller Cleaning Printer-Head Follow these guidelines to ensure the printer head is dust-free: • Before cleaning, turn off the power to the printer� • Wait approximately 10 minutes before cleaning� The printer head can be very hot when the printer is running� •...
Page 20
PLATEN ROLLER CLEANING To clean the platen roller 1� Using a clean, soft cloth or cleaning pen moistened with isopropyl alcohol, clean the platen roller� Platen Roller Page 20...
Page 21
ESC/POS COMMAND COMPATIBILITY Command Function Compatibility Hortizational tab Print and line feed Print and carriage return Cancel print data in page mode Real-time status transmission DLE EOT Real-time request to printer DLE ENQ Print data in page mode ESC FF Set character right-side spacing ESC SP Set print mode...
Page 22
Command Function Compatibility Align position ESC a Print and feed paper n lines ESC d Select character code table ESC t Set/cancel upside-down character printing ESC { Print NV bit image F5 p Define NV bit image F5 q Select character size GS ! Print down-loaded bit image GS /...
Page 25
Command Compatibility Page-Width Pace No-Pace Wait Speed No-Feed Prefeed Country/Code Page Format Files Beep Line Print Mode SetLP SetLP Moving with X and Y coordinates LMARGIN SETBOLD SETSP Special ASCII characters SETFF SET-TOF SETLP-TIMEOUT Advanced Utilities Version CHECKSUM DEFINE-FILE TYPE BAUD COUNTRY/CODE-PAGE TIMEOUT...
Page 26
Command Compatibility GET-DATE Printing Timestamp Printing Datestamp Paper-Jam Printer Escape Set and Read code Status/Information User label count Power Off Page 26...
Page 27
TECHNICAL SPECIFICATIONS MECHANICAL Compatibility Direct thermal printer Printing Speed/ 100mm/sec Resolution Weight 1Kg (with 2600mAh battery) (without iOS device) Dimensions 166mm x 174mm x 80mm (6�5” x 6�8” x 3�1”) • Power Buttons • Feed ELECTRICAL 1-D: EAN-8, EAN-8(+2+5), EAN-13, EAN-13(+2+5), Codabar, Code11, Code39, Code93, Code128, ITF, LUPC-A(+2+5), UPC-E, UPC-E(+2+5), Planet, UPC-A, and so forth Barcodes...
Page 28
CERTIFICATIONS General CE/CB/FCC/IC/UL/KC Environmental IP 54 Sealing ENVIRONMENT Operation: -21~55℃ Temperature Storage: 30~65℃ Operation: 10~90% Humidity Storage: 10~90% Page 28...
Page 29
Infinite Peripherals does not warrant, and is not responsible for, any damage to the MP43 (“Product”) or the assembled iOS device as a result of liquid or solid particle intrusion into the Product, or damaged caused by dropping the Product with the assembled iOS device�...
Page 30
PRODUCT RETURNS AND SERVICING Use the link provided to create an account and gain access to our Knowledge Base and online support services� Through our online support center, you’ll be able to download files, open a Support Ticket, manage your RMAs, view your account Profile and subscribe to Alerts�...
Page 31
SYMBOLS FOR USE SYMBOL DEFINITION Consult Instructions for Use Manufacturer Manufacture Date Serial Number Part Number Waste Electrical and Electric Equipment Do Not Autoclave Do Not Incinerate Mark of conformity to European Union Directives Complies with part 15 of the FCC rules Page 31...
Page 32
FEDERAL COMMUNICATIONS COMMISSION (FCC) Federal Communications Commission Statement 15�21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment� 15�105(b) This equipment was tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules�...
