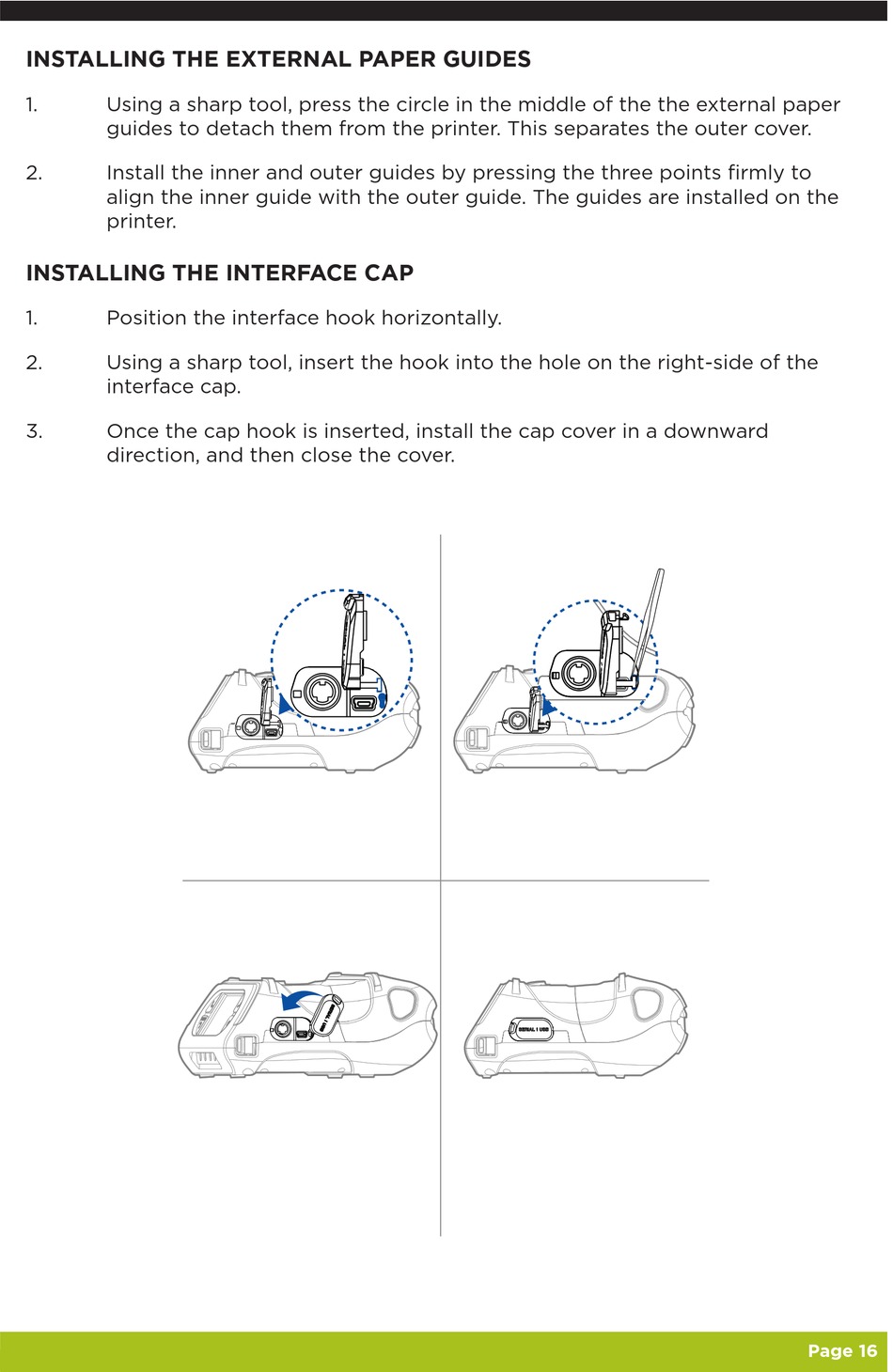

INSTALLING THE EXTERNAL PAPER GUIDES
1�
Using a sharp tool, press the circle in the middle of the the external paper
guides to detach them from the printer� This separates the outer cover�
2�
Install the inner and outer guides by pressing the three points firmly to
align the inner guide with the outer guide� The guides are installed on the
printer�
INSTALLING THE INTERFACE CAP
1�
Position the interface hook horizontally�
2�
Using a sharp tool, insert the hook into the hole on the right-side of the
interface cap�
3�
Once the cap hook is inserted, install the cap cover in a downward
direction, and then close the cover�
Page 16
