Infinite Peripherals MP34 Quick Start Manual

QUICK START GUIDE

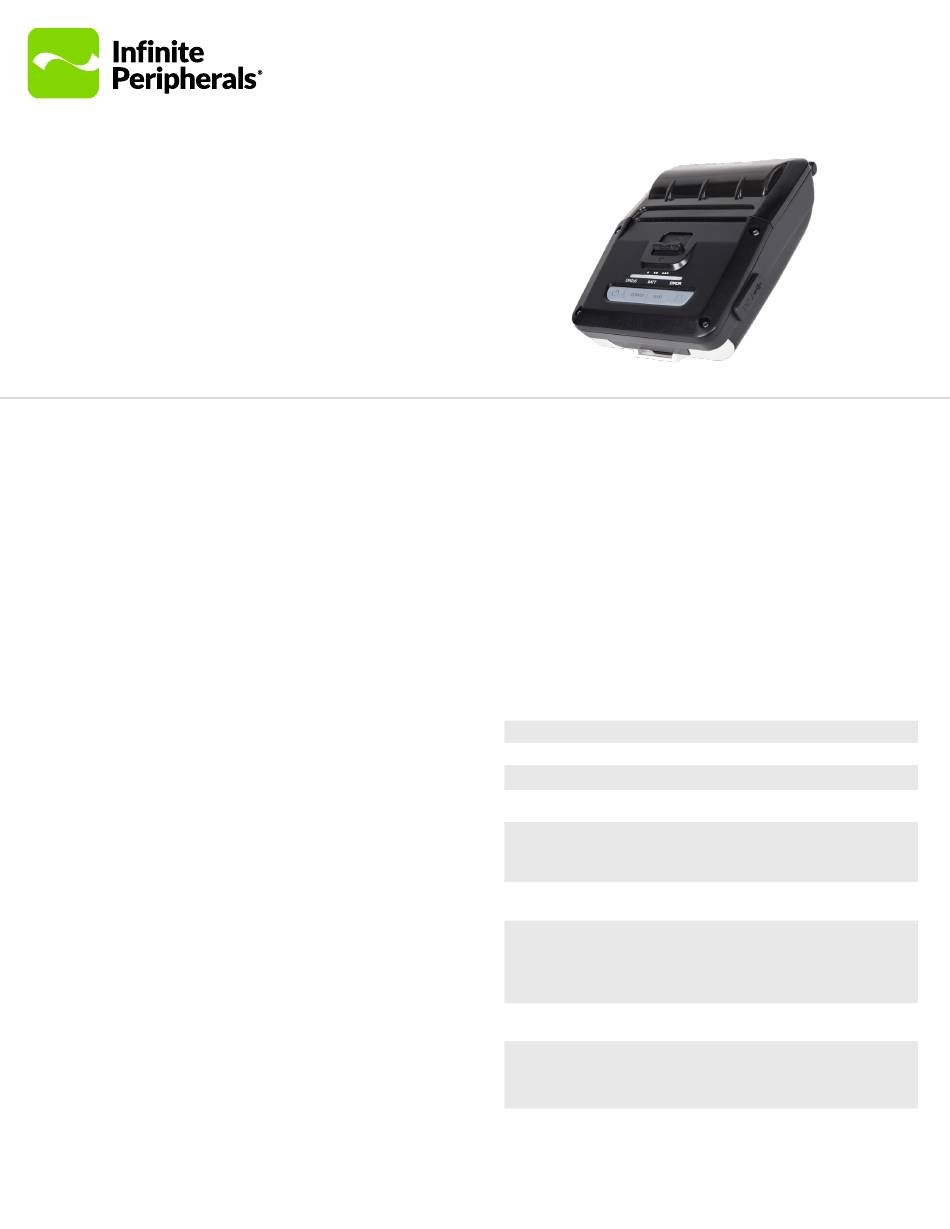

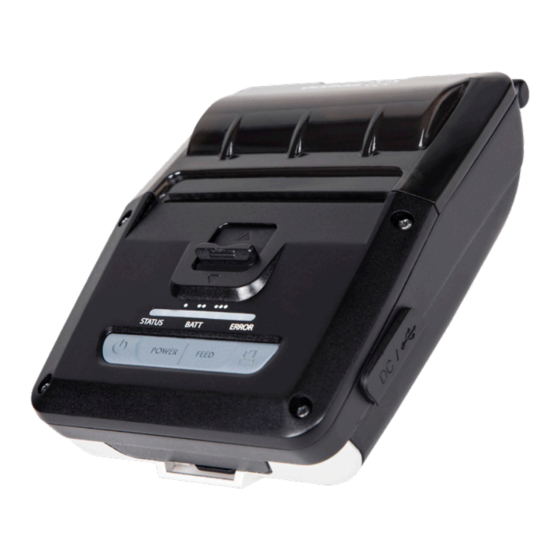

MP34
3-Inch Mobile Printer
Installing the Battery
Before using your MP34 printer, install the Lithium-Ion rechargeable
battery, and then charge it for at least 3 hours and 30 minutes.
1. Connect the input cord to the AC adapter.
2. Align the battery hook on the back of the printer.
3. Lock the battery in place and ensure the upper cover clicks closed securely.
Charging the Battery
You can charge the battery with the approved AC adapter cables
provided with your printer.
1. Ensure the printer is turned off and not turned on when charging the
battery.
2. Open the DC jack cover, and then connect the jack to the printer.
3. Plug the power cord into an appropriate power source.
Connect Peripherals
You can connect your printer to other iOS devices via Bluetooth, Wi-Fi,
for Near-Field Communication (NFC).
Diagnostic Self Test
After installation follow these guidelines to print out the status of the
printer. This self test provides information about the control circuit,
mechanism, print quality and ROM version.
Note:
To protect the motor from overheating, stop the printer for 30 seconds
after continuous printing of 1.5 meters (4.92 ft).
1. Turn off the printer by holding the Power button down for three seconds.
2. Press both the Feed and Power buttons at the same time. The self-test
printout appears automatically.
Installing New Paper Roll
1. To install a standard paper roll, press down the Advance Manual Cutter
(AMC) button on top of the printer.
• AMC button down opens the cover for you to clean the printer
head, replace paper, or fix a paper jam.
• AMC button up allows you to cut paper.
2. Remove the empty paper core.
3. Insert a new paper roll so it unrolls from the bottom easily.
4. Once the paper is in place, pull out a short length of it, close the printer cover,
and then press the AMC button again to raise it up. You can then cut the
extra paper.
5. Close the cover with both hands.
LED Status
Red Printer is charging.
Solid Green Charging is complete.
Blinking Green Printer is not charging properly.
Button Functionality
Power
• Turn the printer On/Off.
• When the printer is off, press Power for at least
three seconds to turn on.
Feed
• Feed the paper manually into the printer, perform
self tests and hexadecimal dumps.
Battery Status
• Batt LED lit when the battery is fully charged.
• Beeping and no LED indicates the battery is at the
lowest level.
• Printer turns off when battery is not charged.
Error
• Red light on indicates paper is empty or paper
cover is open.
Link/Power
• Link - LED blinks
Light
• Power On - Green
• Power Off - No LED
