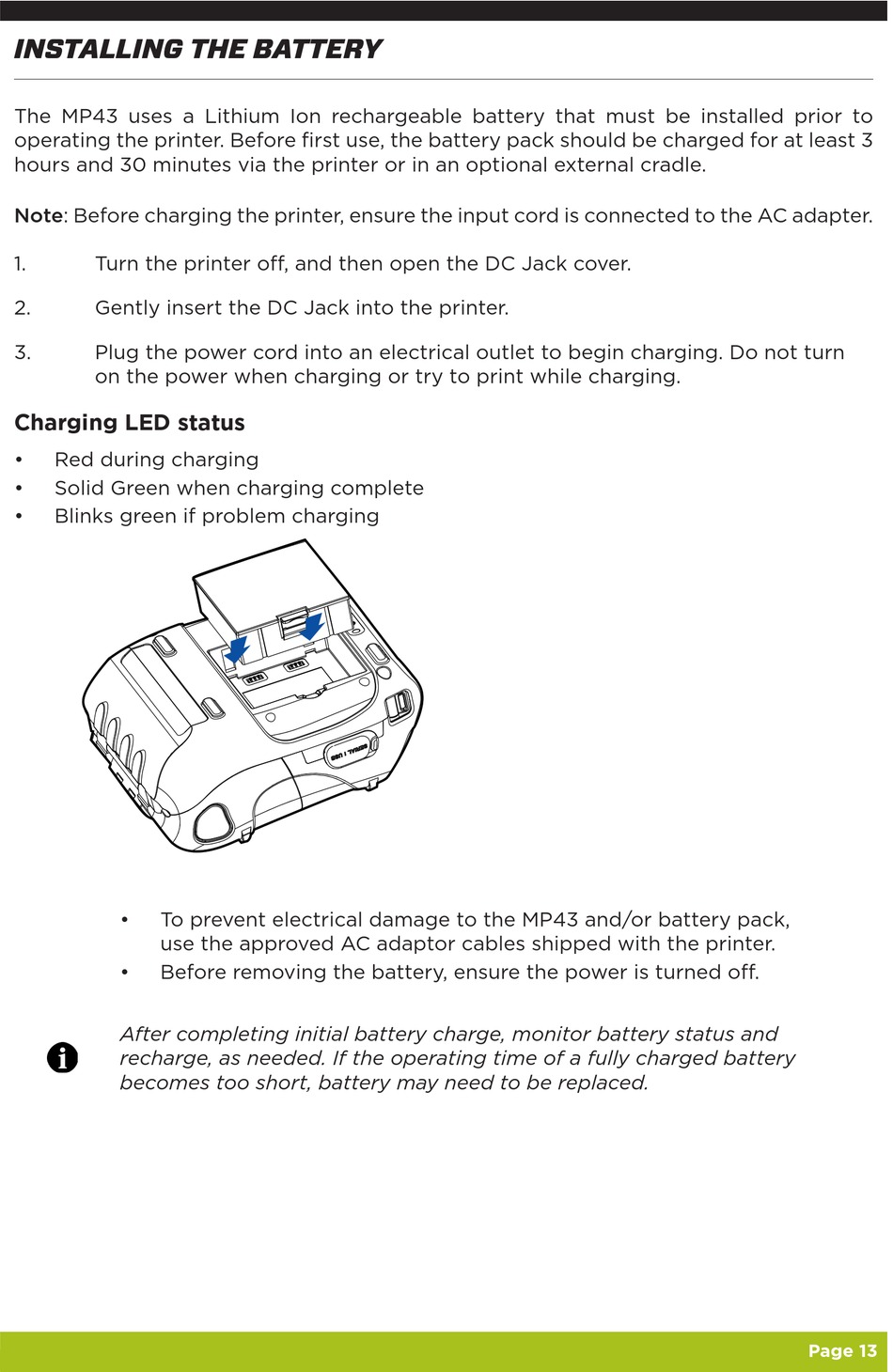

INSTALLING THE BATTERY
The MP43 uses a Lithium Ion rechargeable battery that must be installed prior to
operating the printer� Before first use, the battery pack should be charged for at least 3
hours and 30 minutes via the printer or in an optional external cradle�
Note: Before charging the printer, ensure the input cord is connected to the AC adapter�
1� Turn the printer off, and then open the DC Jack cover�
2� Gently insert the DC Jack into the printer�
3� Plug the power cord into an electrical outlet to begin charging� Do not turn
on the power when charging or try to print while charging�
Charging LED status
• Red during charging
• Solid Green when charging complete
• Blinks green if problem charging
• To prevent electrical damage to the MP43 and/or battery pack,
use the approved AC adaptor cables shipped with the printer�
• Before removing the battery, ensure the power is turned off�
After completing initial battery charge, monitor battery status and
recharge, as needed. If the operating time of a fully charged battery
becomes too short, battery may need to be replaced.
