USING YOUR MP43

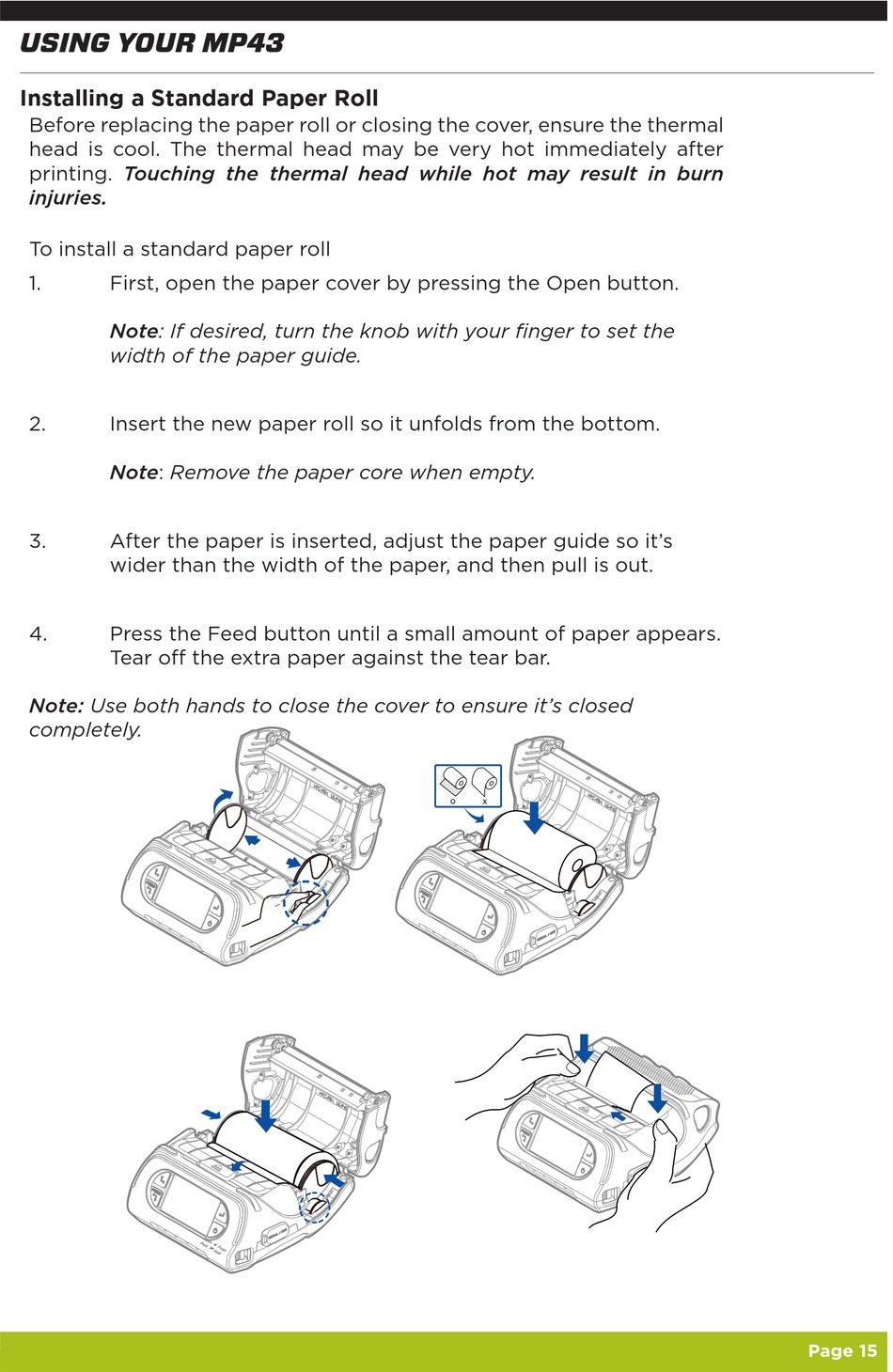

Installing a Standard Paper Roll
Before replacing the paper roll or closing the cover, ensure the thermal
head is cool� The thermal head may be very hot immediately after
printing� Touching the thermal head while hot may result in burn
injuries.
To install a standard paper roll
1� First, open the paper cover by pressing the Open button�
Note: If desired, turn the knob with your finger to set the
width of the paper guide.
2� Insert the new paper roll so it unfolds from the bottom�
Note: Remove the paper core when empty.
3� After the paper is inserted, adjust the paper guide so it's
wider than the width of the paper, and then pull is out�
4� Press the Feed button until a small amount of paper appears�
Tear off the extra paper against the tear bar�
Note: Use both hands to close the cover to ensure it's closed
completely.
