- Page 1 Full IP66 Aluminum Flat Touch Panel PC Series Class 1 Division 2 User Manual R19IHAT-66EX Document Version 7.0 Document Part No. PPM201404282...
-
Page 2: Table Of Contents
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Contents Preface ....................................3 Copyright Notice ..................................3 Trademark Acknowledgement ............................... 3 Disclaimer ....................................3 Warranty ....................................3 Customer Service ..................................4 Safety Information .................................. 4 Safety Precautions .................................. 5 Introduction ..........................7 Features ................................ -
Page 3: Preface
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. -
Page 4: Customer Service
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Customer Service We provide service guide for any problem as follow steps: First, visit the website of our distributor to find the update information about the product. Second, contact with your distributor, sales representative, or our customer service center for technical support if you need additional assistance. -
Page 5: Safety Precautions
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Safety Precautions • Please read these safety instructions carefully. • Please keep this user’s manual for later reference. • Please disconnect this equipment from any AC outlet before cleaning. Do not use liquid or spray detergents for cleaning. - Page 6 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual de doute , s'il vous plaît contactez le fabricant. • Provision shall be made to provide transient protection device to be set at a level not exceeding 140% of the rated voltage at the power supply terminals of the apparatus.
-
Page 7: Introduction

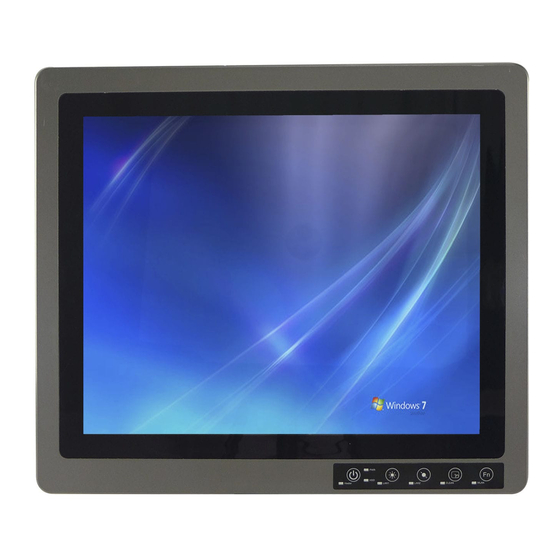

This includes technologies used in potentially explosive atmospheres. The Winmate 19” HazLoc PPC is the first of its kind to offer the Class1 Division2 certification, ensuring safe and reliable data collection and processing in Hazardous Locations. This Panel PC features robust processing power with the 2.6GHz Intel Haswell Core i5-4300U. - Page 8 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Product Overview (Unit: mm) Front View Touch Display Front Button & LED Indicators Side and Rear Views Front Button Button Type Function Power on/off Increase the brightness of the Panel Decrease the brightness of the Panel Suspend the touch’s function temporarily...
-
Page 9: Getting Started
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Getting Started Turning On Your Device 1. Remove the I/O protection cover plate. 2. Connect the Power adapter to the device. 3. Plug the power adapter power cord to an electrical outlet. -
Page 10: Adjusting The Lcd Display Brightness
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Adjusting the LCD Display Brightness Tap the arrow on the system tray to display the hidden icons. Double-tap the icon to display the brightness menu. Drag the brightness bar to adjust the brightness level according to your preference. -
Page 11: Installation
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Installation Wiring Requirements The following common safety precautions should be observed before installing any electronic device: Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. -
Page 12: Connecting The Interface
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Connecting the Interface The unit is available with different pass through glands for cable connections (required to maintain enclosure protection rating). These glands are water and gas tight and must be tightened with a torque described in the gland manufacturer’s instructions provided with the unit. - Page 13 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual 2. I/O cover has been removed and internal I/O ports will be seen. 3. Loosen the cable gland and let the cable go through to connect the internal terminal block connector. Connect to the...
- Page 14 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual 4. Tighten the cable gland and screw the I/O protection cover plate back. Put all the screws back to fix the I/O Cover Tighten the gland to hold the cable Pin Assignments...
- Page 15 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual VGA Port (Only used in safe area) Signal Name Signal Name R_FILTER G_FILTER B_FILTER VGA5V DAC_SDAT0 3VHSYNC0 3VVSYNC0 DAC_SCL0 COM Port (Only used in safe area) Signal Name Signal Name USB Port...
- Page 16 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual T568B connection Order Connector No Twisted Pair Group Number Color Orange White Orange Green White Blue Blue White Green Brown White Brown Power terminal block Signal Name VCC+ VCC- Power wire for VCC should be AMW 1015 18AWG 600V or above.
- Page 17 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual COM Port Signal Name Signal Name LAN2 Port Signal Name Signal Name MDIO3- MDIO3+ MDIO2- MDIO2+ MDIO1- MDIO1+ MDIO0- MDIO0+ USB Port Signal Name Note • This adapter was certified by UL, CUL TUV/GS CE, FCC, BSMI, EK, DOIR+C- TICK, CCC, PSE.
-
Page 18: Mounting Solution
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Mounting Solution Clamp Mount With the mounting clamps and screws, it provides fast and easy mounting of the 19” Panel PC onto an instrument panel or wall panel To mount the device to a sub frame or panel, do the following: 1. - Page 19 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual VESA Mount Dimensions: 100 x 100mm Screw Hole Diameter: M4 x 5 mm Compatible with swimming arms mounting kits. Direction:...
-
Page 20: Windows 7 Driver Installation
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Windows 7 Driver Installation Chipset Driver Installation The Intel Chipset Drivers should be installed first before the software drivers to enable Plug & Play INF support for Intel chipset components. Follow the instructions below to complete the installation. - Page 21 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Step 3. Click on “Next“ to install driver. Step 4. Click on “Yes, I want to restart this computer now“ to go on.
-
Page 22: Graphic Driver Installation
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Graphic Driver Installation IH70 Motherboard is with Intel mobile Core i7, Core i5, Core i3 dual core CPU and with an integrated graphics controller. You need to install the Graphic driver to enable the function. - Page 23 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Step.3. Click on “Yes “ to agree License. Step.4. Click on “Next “ to install Driver. Step.5. Click on “Yes, I want to restart this computer now“ to go on.
-
Page 24: Usb 3.0 Driver Installation
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual USB 3.0 Driver Installation IH70 Motherboard is designed with Intel mobile Core i7, Core i5, Core i3 dual core CPU with the Intel® USB 3.0 eXtensible Host Controller. You need to install the Intel® USB 3.0 eXtensible Host Controller driver to enable the function. - Page 25 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Step.4. Read License Agreement and click “Yes” to proceed Step.5. Review Readme File Information and click “Next” to proceed. Step.6. When the “Setup Progress” is complete click “Next” to proceed.
- Page 26 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Step.7.When the “Setup Progress” is complete click “Next” to proceed. Step.8. Lastly, the “Setup Complete” screen appears so click “Finish” to restart your computer.
-
Page 28: Ethernet Driver Installation
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Ethernet Driver Installation The Users must make sure which operating system you are using in the IH70 Motherboard before installing the Ethernet drivers. Follow the steps below to complete the installation of the Intel® I210IT Gigabit-LAN Controller + I218LM Gigabit-LAN drivers. -
Page 29: Audio Driver Installation
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Step.4. Click on “Next“ to install driver. Step.5. Click on “Finish“ to complete the driver installation. Audio Driver Installation The ALC886 series are high-performance 7.1+2 Channel High Definition Audio Codecs providing ten DAC channels that simultaneously support 7.1 sound playback, plus 2 channels of independent stereo sound... -
Page 30: Fintek Com Port Driver Installation
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Step.2. Click on “Next“ to install driver. Step.3. Click on “Yes, I want to restart my computer now” to finish installation. Fintek COM Port Driver Installation STEP 1.If the system is WIN7 please first do close UAC.(Refer following “Disabling User Account Control (UAC) in Windows 7”) - Page 31 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual After the update and update success. STEP 5 .You will need to restart your computer for driver install success. Type in this command from the Run menu: C:\Windows\System32\UserAccountControlSettings.exe or uac...
- Page 32 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual 19" Full lP66 Flat Touch PPC User's Manual To turn off UAC, move the slider to the Never notify position, and then click OK. If you're prompted for an administrator password or confirmation, type the password or provide confirmation.
-
Page 33: Intel Management Engine Software Installation
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Intel Management Engine Software Installation This installation program installs the Intel® ME software components required for the platform on which you are installing, and installs only those components that match your platform’s capabilities. - Page 34 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual . Click on “Finish“ to complete the software installation. Step.4...
-
Page 35: Specification
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Specification Hardware Specifications Item Specifications Computer Intel i7-4650U, 4M cache, up to 3.30GHz Intel i5-4300U ,3M cache, up to 2.90GHz Windows Embedded Standard 7 System Chipset Intel® HD graphics 5000 (i7) / 4400 (i5) - Page 36 C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Item Specifications Physical Characteristics Housing Stainless steel Dimensions 396 x 310 x 49mm (W x H x D) Mounting Mounting hole for VESA 100 x 100, yoke mounting Environment Limits Operating Temperature -40°C to 70°C...
-
Page 38: Appendix
C1D2 Full IP66 Panel PC R19IHAT-66EX User Manual Appendix Appendix A: Cleaning the Monitor Before cleaning: • Make sure the device is turned off. • Disconnect the power cable from any AC outlet. When cleaning: • Never spray or pour any liquid directly on the screen or case.
