15"/17"/19"/21.5"/23.8"
P-Cap Open Frame Panel PC
Incredible system expandability for versatile applications
Quick Start Guide
Document Part No. 91521110104M
Document Version 1.0
Please read this instructions before operating the device and retain them for future reference.
Intel® Core™ i7-7700T, 2.9 GHz
Intel® Core™ i5-7500T, 2.7 GHz
Intel® Core™ i3-7100T, 3.4 GHz
Model No. R15IK7T-POC3
R17IK7T-POM1
R19IK7T-POM1
W22IK7T-POA3
W24IK7T-POA2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winmate R17IK7T-POM1
Summary of Contents for Winmate R17IK7T-POM1
- Page 1 P-Cap Open Frame Panel PC Intel® Core™ i7-7700T, 2.9 GHz Intel® Core™ i5-7500T, 2.7 GHz Intel® Core™ i3-7100T, 3.4 GHz Incredible system expandability for versatile applications Model No. R15IK7T-POC3 R17IK7T-POM1 R19IK7T-POM1 W22IK7T-POA3 W24IK7T-POA2 Quick Start Guide Document Part No. 91521110104M Document Version 1.0...
-
Page 2: Table Of Contents
15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide Contents Preface ........................3 About This Quick Start Guide ................. 6 Chapter 1: Introduction ................... 7 1.1 Overview ......................8 1.2 Product Features ....................8 1.3 Package Contents ....................8 1.4 Product Overview .................... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings.
- Page 5 Preface CAUTION Always ground yourself to remove any static charge before touching the CPU card. Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static- shielded bag when they are not in the chassis.
-
Page 6: About This Quick Start Guide
15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide About This Quick Start Guide This User Manual provides information about using the Winmate® 15~23.8” P-Cap Open Frame Panel PC. The documentation set provides information for specific user needs, and includes: ... -
Page 7: Chapter 1: Introduction
Chapter 1: Introduction Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the panel PC in the packing list. Mechanical dimensions and drawings included in this chapter. -
Page 8: Overview
Part No. 913511101111 *Notice: Screw bolts provided by Winmate only to be used to screw the panel PC onto a console from the rear side. If you prefer your own bolts, please make sure to use M4 and 30mm in length. -
Page 9: Product Overview

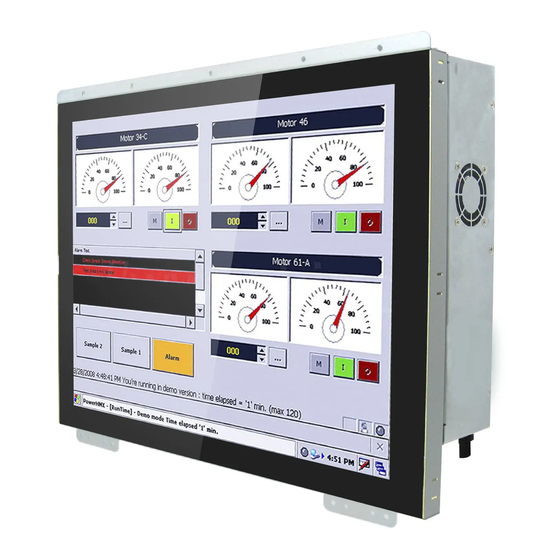

Chapter 1: Introduction 1.4 Product Overview This section describes physical appearance of the Open Frame Panel PC. Notice that input and output connectors vary by product size and specifications. The picture above shows only a prototype model for information purposes only. 15”, R15IK7T-POC3 Unit: mm Dimensions: 360 x 272 x 72... - Page 10 15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide 17”, R17IK7T-POM1 Unit: mm Dimensions: 407 x 338 x 78 № № Description Description OSD Membrane (Physical Buttons and ① ⑥ DisplayPort 1.2 LED Indicators) ② ⑦ HDMI 1.4 2 x RS-232/422/485 ③...
- Page 11 Chapter 1: Introduction 19”, R19IK7T-POM1 Unit: mm Dimensions: 457 x 382 x 71 № № Description Description OSD Membrane (Physical Buttons and ① ⑥ DisplayPort 1.2 LED Indicators) ② ⑦ HDMI 1.4 2 x RS-232/422/485 ③ ⑧ Mic In/Line Out Power Jack 4-pin (12V DC) ④...
- Page 12 15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide 21.5”, W22IK7T-POA3 Unit: mm Dimensions: 525 x 316 x 72 № № Description Description OSD Membrane (Physical Buttons and ① ⑥ DisplayPort 1.2 LED Indicators) ② ⑦ HDMI 1.4 2 x RS-232/422/485 ③...
- Page 13 Chapter 1: Introduction 23.8”, W24IK7T-POA2 Unit: mm Dimensions: 615 x 385 x 75 № № Description Description OSD Membrane (Physical Buttons and ① ⑥ DisplayPort 1.2 LED Indicators) ② ⑦ HDMI 1.4 2 x RS-232/422/485 ③ ⑧ Mic In/Line Out Power Jack 4-pin (12V DC) ④...
-
Page 14: Connector Description
15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide 1.5 Connector Description Connectors are located on the bottom side of the panel PC. Note: Notice that input and output connectors vary by product size and specifications. Connector description: Item Description Power Jack 4-pin –... -
Page 15: Physical Buttons And Led Indicators
Chapter 1: Introduction 1.7 Physical Buttons and LED Indicators Physical buttons and LED indicators are located on the OSD membrane on the rear bottom side of the panel PC. Physical Buttons Icon Button Description Reset Press to reset the system. Press to power on or power off the Power On/ Off device. -
Page 16: Chapter 2: Mounting
15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide Chapter 2: Mounting This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages. -
Page 17: Wall Mount
Chapter 2: Mounting 2.1 Wall Mount The Open Frame Panel PC supports open frame wall mount that enables you to install the unit onto a wall (where space has been cut out to accommodate the rest of the hardware). Warning! Follow mounting instructions and use recommended mounting hardware to avoid the risk of injury. -
Page 18: Vesa Mount
15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide 2.2 VESA Mount The Open Frame Panel PC supports VESA mount solution. VESA mount is a widely used mounting solution suitable for all kinds of industrial applications. Size VESA Dimensions Screw Hole Diameter 15”, 17”, 19”, 21.5”, 23.8”... -
Page 19: Chapter 3: Getting Started
Chapter 3: Getting Started Chapter 3: Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations. -
Page 20: Cable Mounting Considerations
15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide 3.1 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the device. Warning! Observe all local installation requirements for connection cable type and protection level. Avertissement ! Suivre tous les règlements locaux d’installations, de câblage et niveaux de protection. -
Page 21: Connecting Power
Chapter 3: Getting Started 3.3 Connecting Power This section provides information on how to use connectors on the P-Cap Open Frame Panel PC. Notice that connectors are located on the top rear side of the device. Be cautious while working with these modules. Please carefully read the content of this chapter in order to avoid any damages. -
Page 22: Connecting To Other Devices
15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide 3.4 Connecting to Other Devices This section explains how to connect external interfaces to the Panel PC. 3.4.1 Power Input Connector DC power source input is a lockable power jack connector that supports 12V DC power input. Pin assignment and connector description of lockable power jack connector Pin №... -
Page 23: Usb 3.0 Connector
Chapter 3: Getting Started 3.4.4 USB 3.0 Connector Your panel PC has one USB A Type (USB 3.0) connectors. Use USB A Type (USB 3.0) connector to connect your device to other USB 3.0 compatible devices. Pin assignment and connector description of USB 3.0 connector Pin №... -
Page 24: Audio Connector
15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide 3.4.8 Audio Connector Your panel PC has two stereo audio ports with phone jack connectors, one is Line-out and the other one is Mic-in. Pin assignment and connector description of audio jack connector Color Signal Name Line-out... -
Page 25: Chapter 4: Operating The Device
Chapter 4: Operating the Device Chapter 4: Operating the Device In this chapter you will find instructions on how to operate the panel PC. -
Page 26: Operating System
Contact us if you have any questions regarding OS settings. 4.2 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center. - Page 27 Chapter 4: Operating the Device Example: Every 10 min watchdog will monitor the system, in case any error occurs the system will restart automatically when the countdown time reaches 0. Every 9 min watchdog timer will be reset to 10 min. Setting Description The system automaticity restarts when this...
-
Page 28: Using Recovery Wizard To Restore Computer
15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide 4.3 Using Recovery Wizard to Restore Computer Note: Before starting the recovery process, make sure to backup all user data. The data will be lost after the recovery process. To enable quick one-key recovery procedure: 1. -
Page 29: Appendix A: Product Specifications
Appendix A: Product Specifications Appendix A: Product Specifications Model Name R15IK7T-POC3 R17IK7T-POM1 R19IK7T-POM1 Display 17” TFT LCD 19” TFT LCD Size/ Type 15” TFT LCD 1024 x 768 1280 x 1024 1280 x 1024 Resolution 250 nits (Optional 400 nits) - Page 30 15~23.8" P-Cap Open Frame Panel PC (IK70) Quick Start Guide Model Name W22IK7T-POA3 W24IK7T-POA2 Display 21.5” TFT LCD (Wide) 23.8” TFT LCD (Wide) Size/ Type Resolution 1920x1080 1920 x 1080 Brightness 250 nits 250 nits Contrast Ratio 3000:1 (typ.) 3000:1 (typ.) Viewing Angle -89~89 (H) ;...
- Page 31 Notes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
- Page 32 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
