Design and function

Intermediate hose package connection

5.3 Intermediate hose package connection
5.3.1

Intermediate tube package strain relief

Missing or incorrectly fitted strain relief!
Connection sockets or connection plugs on the machine, or the intermediate tube
package, may be damaged if the strain relief is missing or incorrectly fitted. The strain
relief takes the strain from cables, plugs and sockets.
• The length of the relief cord must be adjusted when using for the first time!
• Check the strain relief function by pulling in all directions. Cables and hoses must have
sufficient play when the relief cord is fully stretched!
1
Item Symbol Description
1
2
3
• Insert the end of the tube package through the strain relief of the tube package and lock by turning to
the right.
24
3
2
0
Intermediate tube package strain relief
Snap hooks
Stirrup
Intermediate tube package strain relief
CAUTION

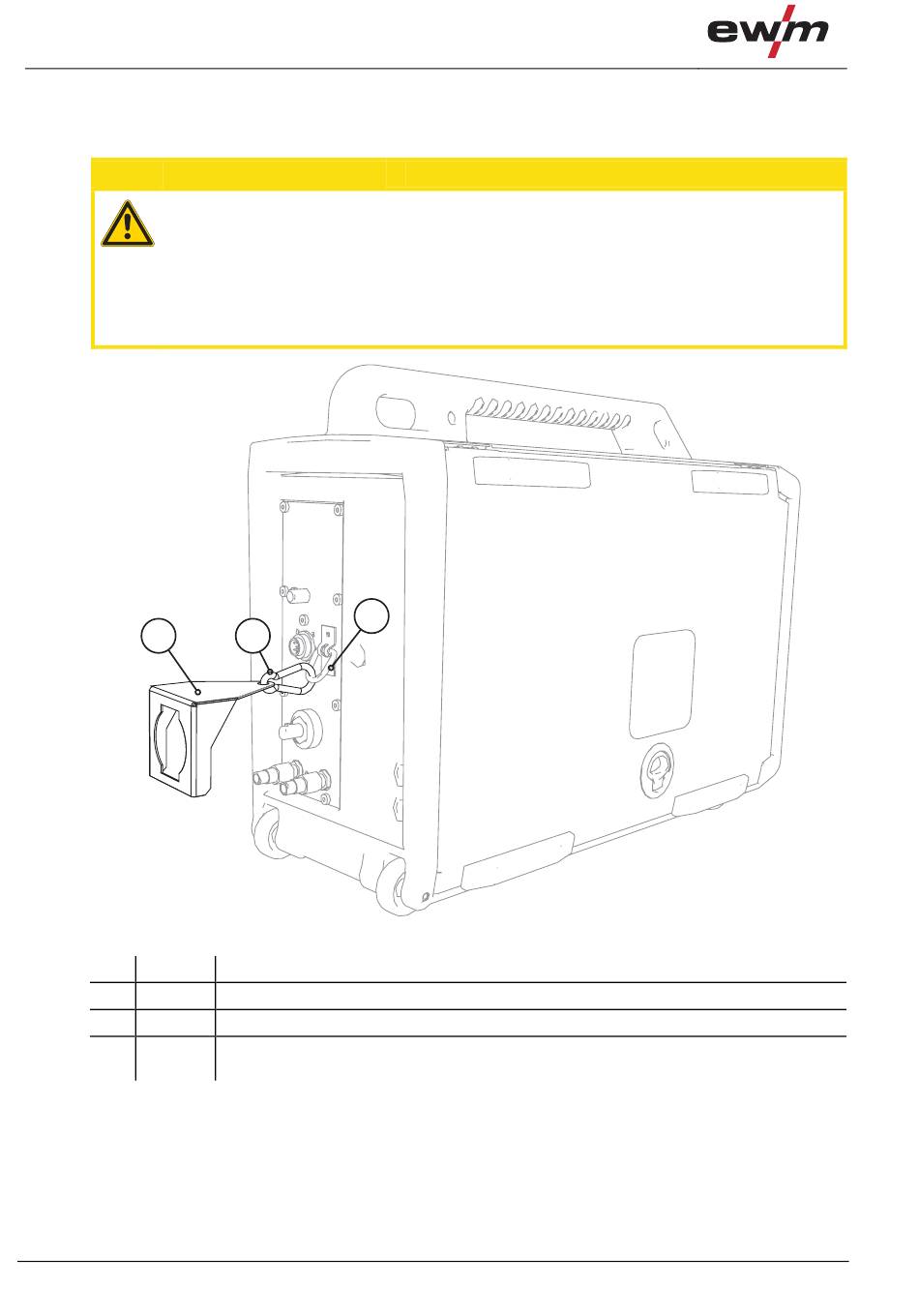

Figure 5-1
099-005211-EW501
23.08.2010
