4.2.3

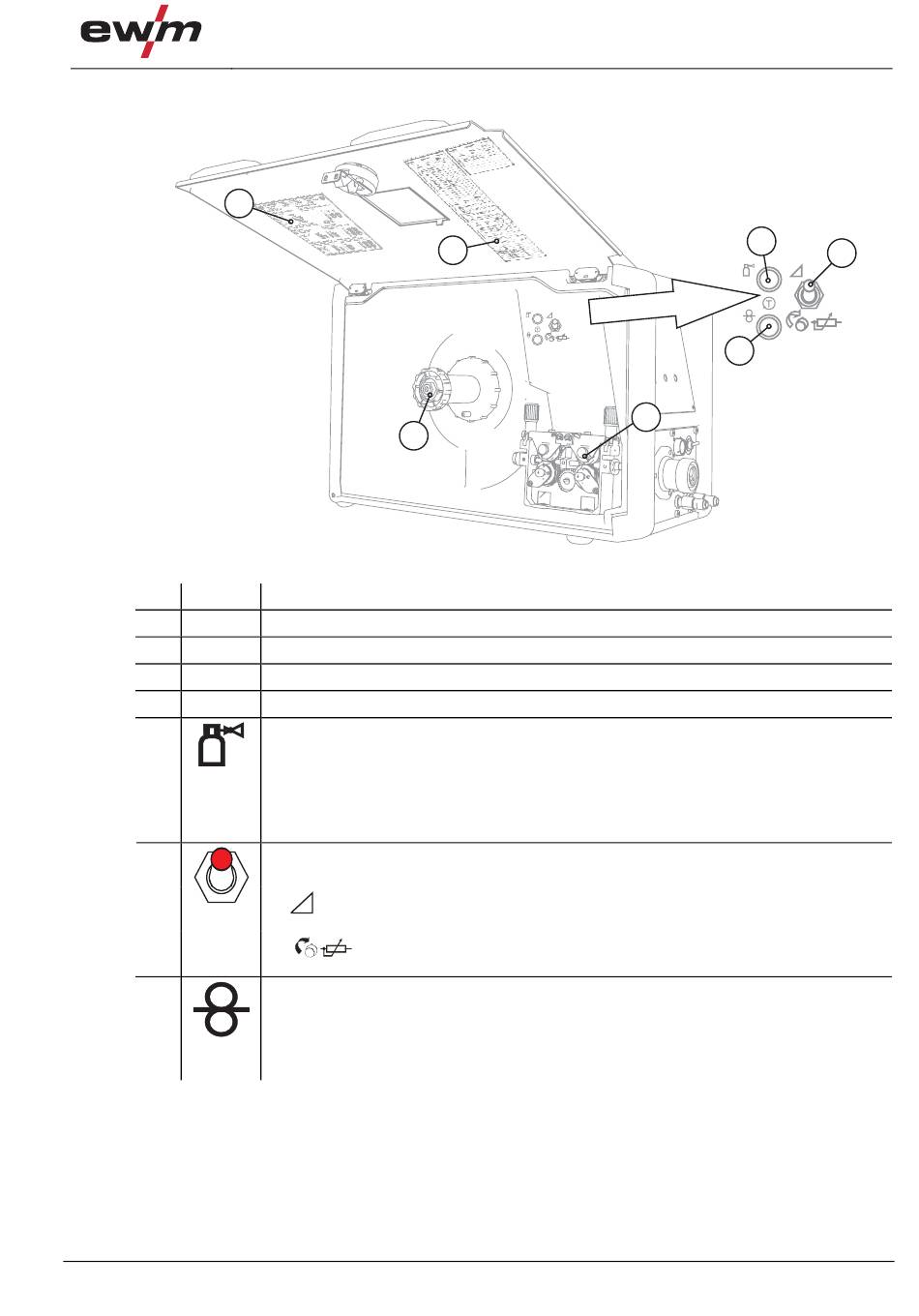

Operating elements in the machine

1
Item Symbol Description
1
2
3
4
5
6
7
099-005211-EW501
23.08.2010
Machine description – quick overview
3
0
Label, Wire feed parts subject to wear
Sticker, JOB List
Wire spool retainer
Wire delivery unit
Gas test button
The welding voltage and wire feed remain off while testing and setting the gas flow.
While pressing the key button the shielding gas flows. You can stop the process at any
time by releasing the key button.
This ensures a high degree of safety for the welder by preventing accidental ignition of
the arc.
"Standard or Up/Down torch" switch
This switch is used to connect an up/down torch
Up/down torch is connected
Up / Down
(infinite adjustment of welding performance with rocker)
Standard torch is connected.
(welding performance set via machine control or remote control)
Button, Wire inching
For inching the wire electrode when changing the wire spool
(speed = 50% of set wire speed)
The welding wire is inched into the tube package with the current off and without the
gas being expelled.
2
Up / Down
Figure 4-6
Taurus Synergic drive 300C
5
Up / Down
7
4
6
19
