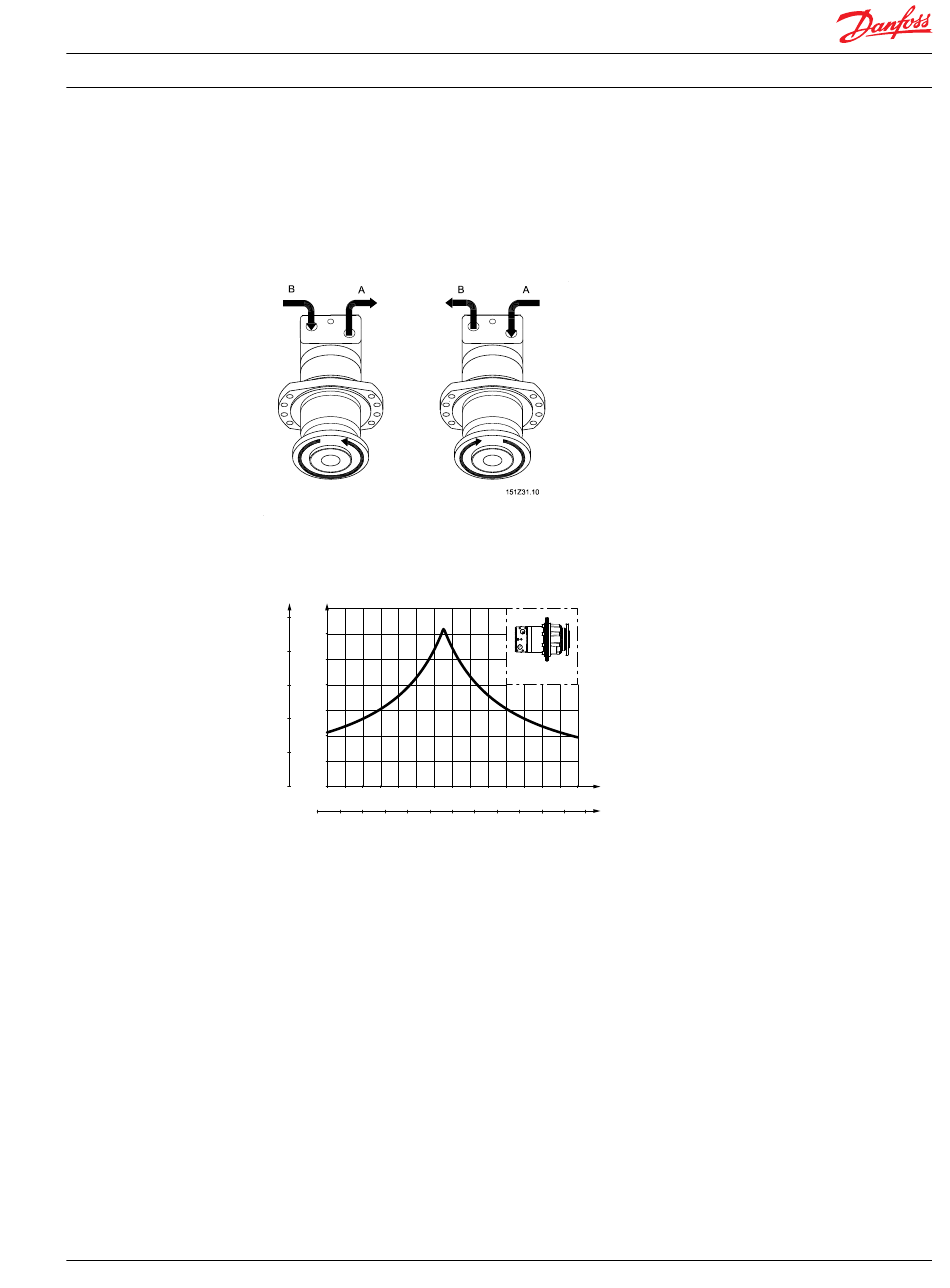

Direction of shaft

Permissible shaft load for TMTHW

TMTHW Orbital Motors
The curve applies to an unloaded motor shaft and an oil viscosity of 35 mm
1. TMTHW 315
2. TMTHW 400, 500, 630 and 800
P P
rad. rad.
[lbf ] N
140 000
30 000
120 000
24 000
100 000
80 000
18 000
60 000
12 000
40 000
6 000
20 000
0
0
-20 -10 0 10 20 30 40
-1.0 -0.5 0 0.5 1.0 1.5

Permissible radial shaft load

The output shaft runs in tapered roller bearings that permit high axial and radial forces.
The permissible radial load on the shaft is shown for an axial load of 0 N as a function of the distance from
the mounting flange to the point of load application.
The curve is based on B10 Bearing life (2000 hours or 12 000 000 shaft revolutions at 100 min
output torque, when mineral-based hydraulic oil with a sufficient content of anti-wear additives, is used.
