Wheel Flange-Spigot Diameter Ø 223.9 Mm - Bc Ø 265 Mm - Danfoss TMTHW Series Technical Information

Technical Information

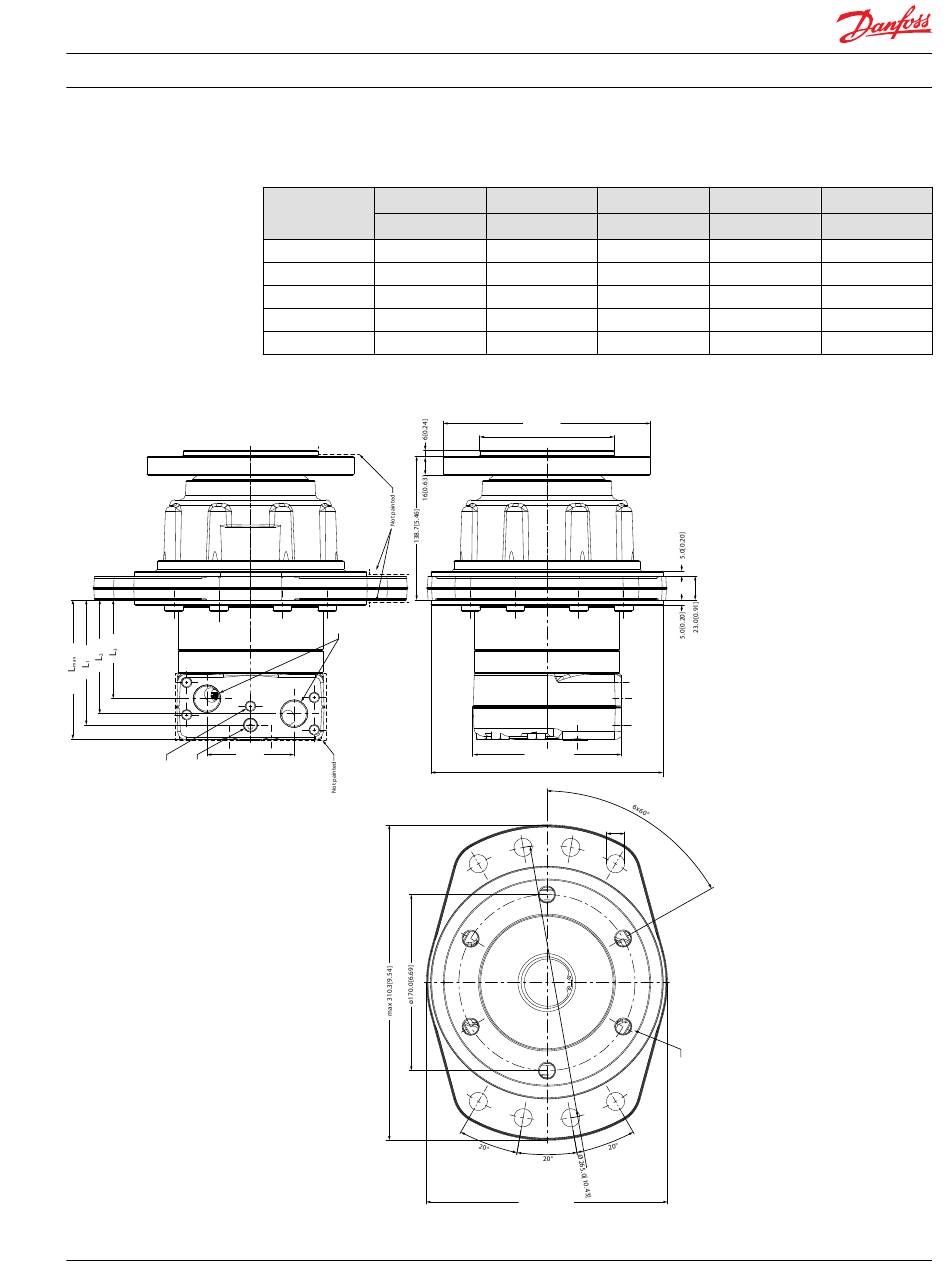

Dimensions
Wheel flange-spigot diameter Ø 223.9 mm - BC Ø 265 mm
84[3.31]
D
E
TMTHW Orbital Motors
TMTHW dimensions
Size L
MAX
3
315-800 cm
mm [in]
TMTHW 315 135.1 [5.33]
TMTHW 400 143.3 [5.64]
TMTHW 500 153.8 [6.06]
TMTHW 630 167.8 [6.61]
TMTHW 800 167.8 [6.61]
C
L1327341 • Rev BA • April 2015
L L
1 2
mm [in] mm [in]
117.1 [4.61] 106.1 [4.18]
125.1 [4.93] 114.1 [4.49]
135.6 [5.34] 124.6 [4.91]
149.6 [5.89] 138.6 [5.46]
149.6 [5.89] 138.6 [5.46]
Ø200[7.87]
Ø129.7[5.16]
Ø129.9[5.11]
max 146[5.75]
Ø223.8[8.81]
Ø224.0[8.82]
8xØ17.6[0.69]
max 238.0[9.37]
L Weight
3
mm [in] kg [lb]
91.6 [3.61] 33.7 [74.30]
99.6 [3.92] 34.8 [76.72]
110.1 [4.33] 35.7 [78.70]
124.1 [4.89] 37.2 [82.01]
124.1 [4.89] 37.2 [82.01]
F
17
