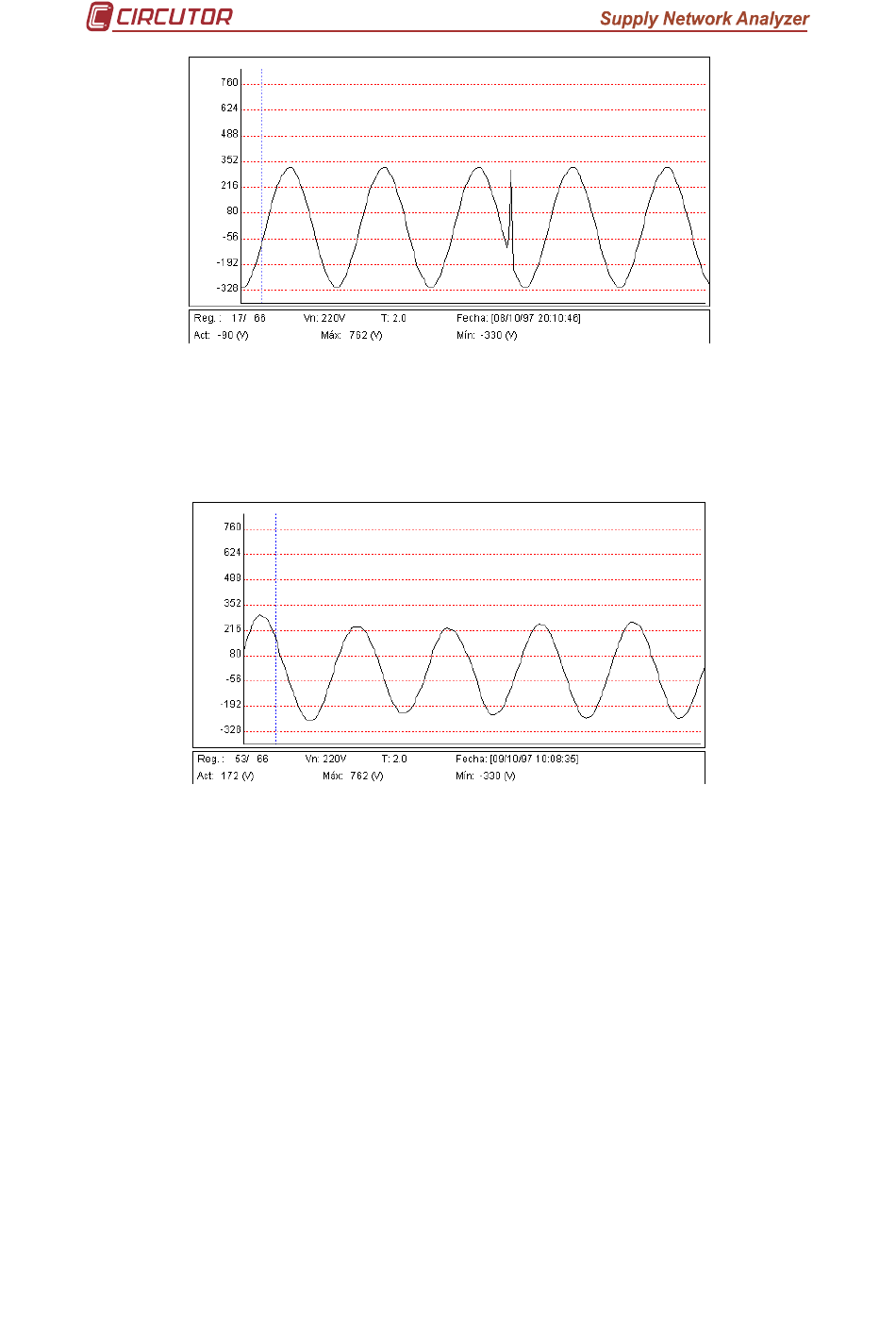

Previous figures (Figure 1 & 2) show disturbances detected due to the
maximum slope permissible value (according to user-define magnitudes) has been
exceeded between two successive samples.
Figure 3 shows another type of disturbance (voltage sag) where no value
exceed for a cycle the 75% of the pre-defined peak voltage (Vpeak = Vn · √2).

2.- Checking the contents of your package

After receiving the analyzer, please check the following points:
a) The delivered material corresponds with your order specifications.
b) After unpacking, check that the instrument has not been damaged in transit.
c) The standard set includes the following items:
• 1 cartridge for programming the analyzer containing the ordered operation
mode program.
• 1 Instruction Manual.
• 1CD containing the PC software update.
Figure 2
Figure 3
Page nº
6
