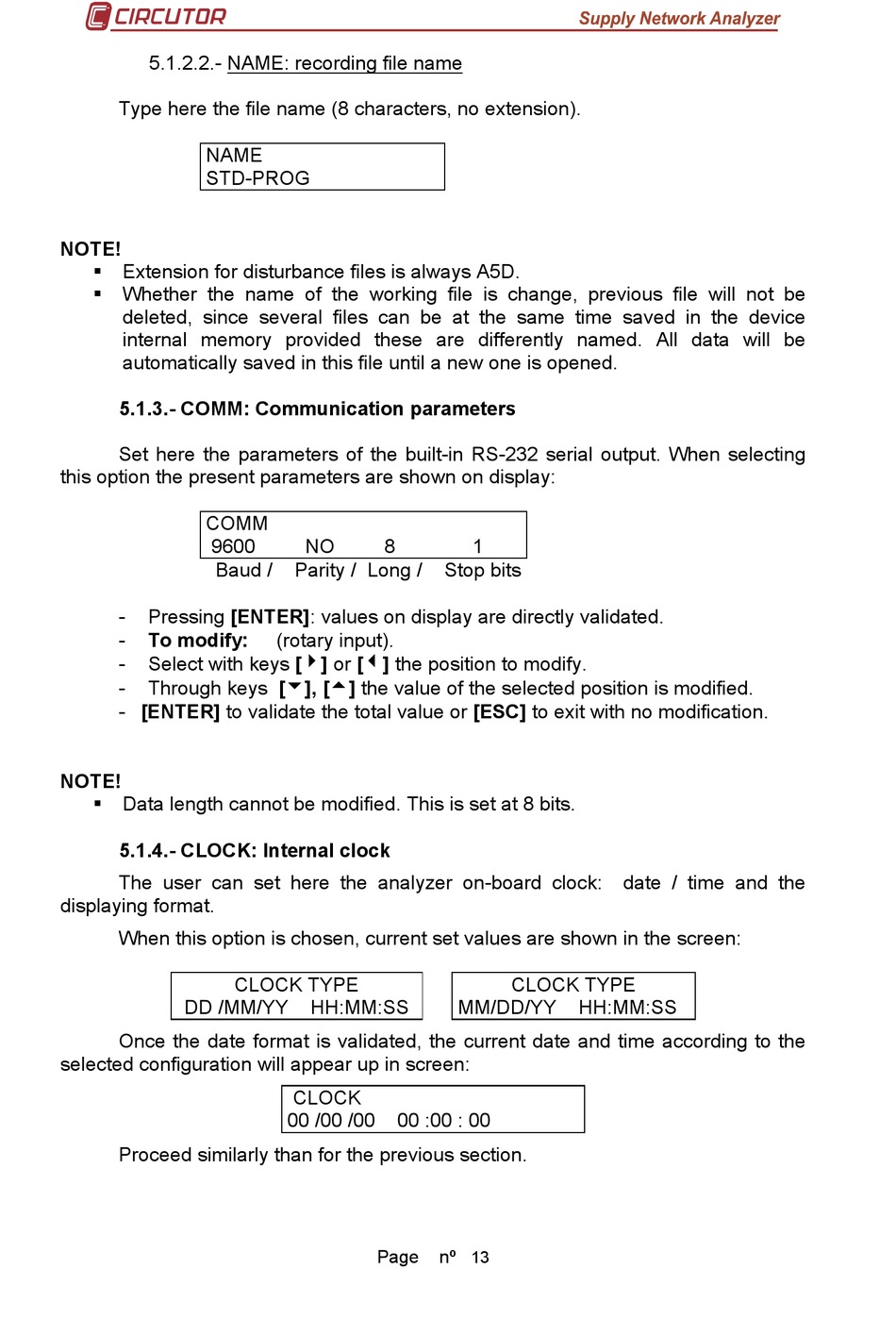

5.1.2.2.- NAME: recording file name

Type here the file name (8 characters, no extension).
NAME
STD-PROG
NOTE!
Extension for disturbance files is always A5D.
Whether the name of the working file is change, previous file will not be
deleted, since several files can be at the same time saved in the device
internal memory provided these are differently named. All data will be
automatically saved in this file until a new one is opened.

5.1.3.- COMM: Communication parameters

Set here the parameters of the built-in RS-232 serial output. When selecting
this option the present parameters are shown on display:
COMM
9600
Baud /
- Pressing [ENTER]: values on display are directly validated.
- To modify:
- Select with keys [4] or [3] the position to modify.
- Through keys [6], [5] the value of the selected position is modified.
- [ENTER] to validate the total value or [ESC] to exit with no modification.
NOTE!
Data length cannot be modified. This is set at 8 bits.

5.1.4.- CLOCK: Internal clock

The user can set here the analyzer on-board clock: date / time and the
displaying format.
When this option is chosen, current set values are shown in the screen:
DD /MM/YY
Once the date format is validated, the current date and time according to the
selected configuration will appear up in screen:
Proceed similarly than for the previous section.
NO 8
Parity / Long /
(rotary input).
CLOCK TYPE
HH:MM:SS
CLOCK
00 /00 /00
Page
1
Stop bits
CLOCK TYPE
MM/DD/YY
00 :00 : 00
nº
13
HH:MM:SS
