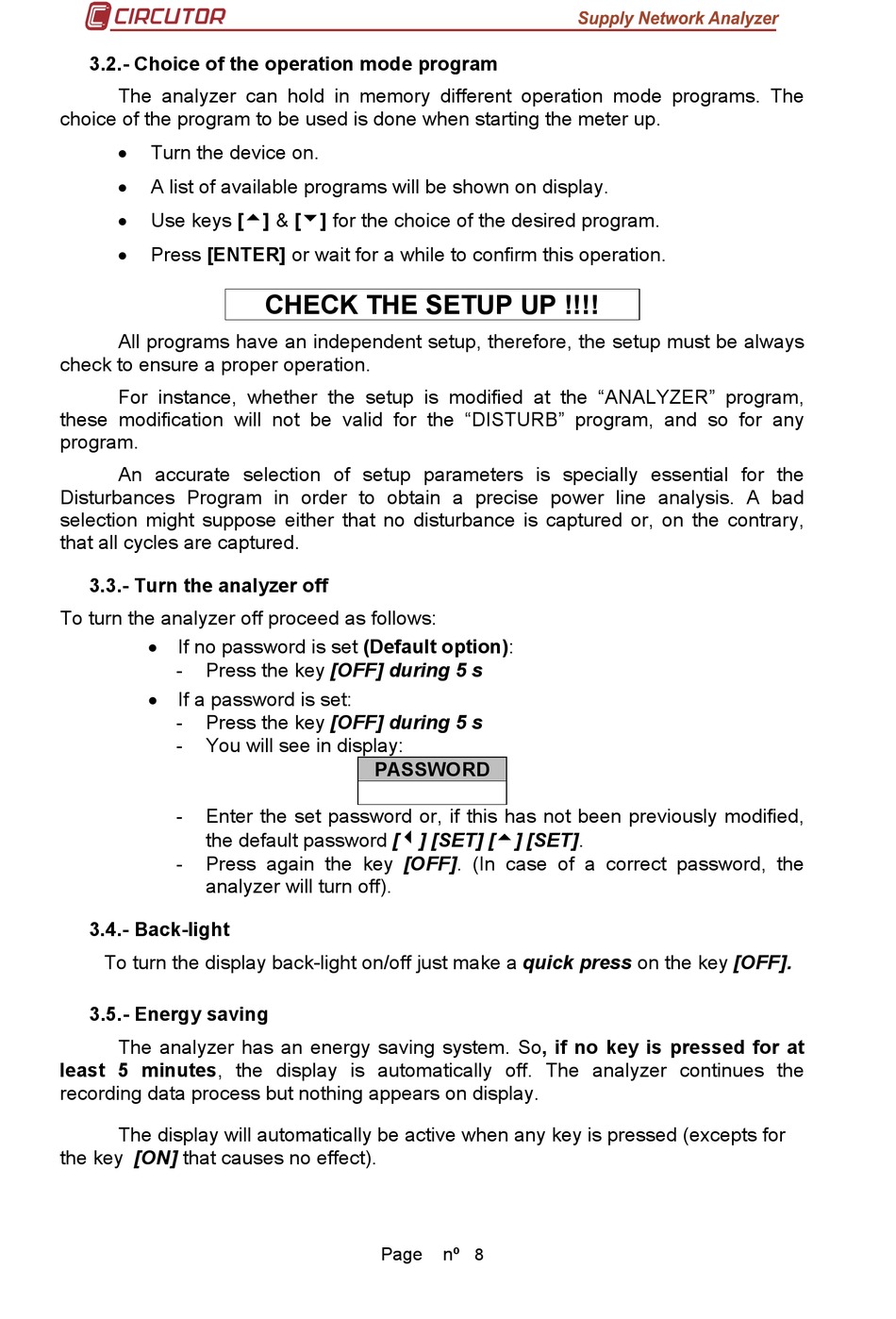

3.2.- Choice of the operation mode program

The analyzer can hold in memory different operation mode programs. The
choice of the program to be used is done when starting the meter up.
•
Turn the device on.
•
A list of available programs will be shown on display.
•
Use keys [5] & [6] for the choice of the desired program.
•
Press [ENTER] or wait for a while to confirm this operation.
All programs have an independent setup, therefore, the setup must be always
check to ensure a proper operation.
For instance, whether the setup is modified at the "ANALYZER" program,
these modification will not be valid for the "DISTURB" program, and so for any
program.
An accurate selection of setup parameters is specially essential for the
Disturbances Program in order to obtain a precise power line analysis. A bad
selection might suppose either that no disturbance is captured or, on the contrary,
that all cycles are captured.

3.3.- Turn the analyzer off

To turn the analyzer off proceed as follows:
• If no password is set (Default option):
- Press the key [OFF] during 5 s
• If a password is set:
- Press the key [OFF] during 5 s
- You will see in display:
Enter the set password or, if this has not been previously modified,
-
the default password [3] [SET] [5] [SET].
- Press again the key [OFF]. (In case of a correct password, the
analyzer will turn off).

3.4.- Back-light

To turn the display back-light on/off just make a quick press on the key [OFF].

3.5.- Energy saving

The analyzer has an energy saving system. So, if no key is pressed for at
least 5 minutes, the display is automatically off. The analyzer continues the
recording data process but nothing appears on display.
The display will automatically be active when any key is pressed (excepts for
the key [ON] that causes no effect).
CHECK THE SETUP UP !!!!
PASSWORD
Page nº
8
