Granule Combi
User manual
GrANuldisk AB retains the right to make technical changes to the products.
EN
Contents
........................................................................................
..........................................................
.......................................................................................
...................................................................................
Art. no. EN162080912
No responsibility is taken for any printing errors.
4
5
12
15
16
.....................................
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the Granule Combi and is the answer not in the manual?

Questions and answers

Related Manuals for GRANULDISK Granule Combi

Summary of Contents for GRANULDISK Granule Combi

  • Page 1: Table Of Contents

    ............3. dAilY ClEANiNG ..................4. HACCP OPErATiON ANd HYGiENE dOCuMENTATiON ................... 5. TrOuBlEsHOOTiNG and AlArMs ........Art. no. EN162080912 GrANuldisk AB retains the right to make technical changes to the products. No responsibility is taken for any printing errors.

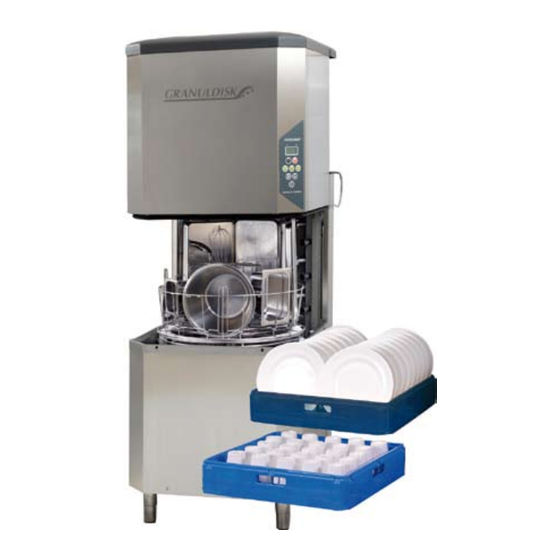

  • Page 2 The GrANuldisk system Granule Combi ® Granule Combi is a unique Combi dishwasher which combines the award winning Granule Optimised Washing Technology with the traditional dishwashing technique for plates, cutlery and most of the crockery.
