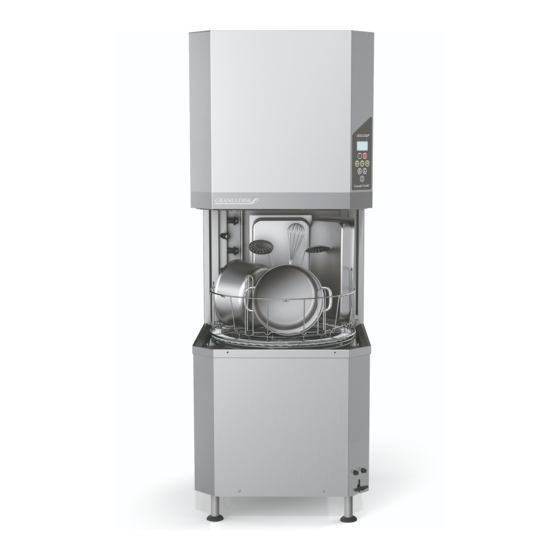

Granule Combi
User manual
1. TECHNICAL DATA
2. INSTRUCTIONS
3. DAILY CLEANING
4. HACCP OPERATIONS AND HYGIENE
DOCUMENTATION
5. TROUBLESHOOTING AND ALARMS
Art. nr 19642/ 04.2007/ EN
Granuldisk AB retains the right to make technical changes to the products.
No responsibility is taken for any printing errors.
Contents
....................................................................................................
.............................................................................................................. .
....................................................................................................
..............................................................................................
1
EN
4
6
11
14
16
..................

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Granule Combi and is the answer not in the manual?

Questions and answers

Related Manuals for GRANULDISK Granule Combi

Summary of Contents for GRANULDISK Granule Combi

  • Page 1 3. DAILY CLEANING ....................4. HACCP OPERATIONS AND HYGIENE DOCUMENTATION ....................5. TROUBLESHOOTING AND ALARMS ....Art. nr 19642/ 04.2007/ EN Granuldisk AB retains the right to make technical changes to the products. No responsibility is taken for any printing errors.

  • Page 2: Declaration Of Conformity

    Jägershillgatan 15 SE-213 75 MALMÖ, Sweden declares that the following machinery: The Granuldisk system GRANULE COMBI Basic conception a) is manufactured in conformity with the Svenska Arbetarskyddsstyrelsens Författningssamling AFS1994:48. This law conforms with the COUNCIL DIRECTIVE of 22 June 1998 concerning harmonisation of member states` legislation for machinery (the Machinery Directive 98/37/EG), with particular reference to Annex 1 concerning the essential health and safety requirements relating to the design and construction of the machinery.

  • Page 3: Safety Instructions

    This instruction manual provides a guide to There is a risk for slipping if granules are left help you use your Granule Combi combina- on the floor. tion dishwasher correctly.

  • Page 4: Technical Data

    1. Technical data Weight..............435 kg filled machine Tank volume ............83 litres Granule amount ..........8 kg Wash power............10 % granule concentration Wash water temperature ......65 °C Rinse water temperature......85 °C Rinse water volume Combi mode....4 litres/wash programme Rinse water volume pot wash .......
  • Page 6 2. Instructions At the start of the day 1. Close the drain valve on the right side of the machine, (image 1) 2. Pour the granules into the granulate pocket, (image 2). 3. Switch on the main switch. 4. Place the two bottom grids in position (image 3). 5.
  • Page 7 Preparing utensils for potwash Scrape off any loose food remnants before placing utensils in machine (fig. 5). NB! Do not soak. To avoid formation of foam, do not use washing-up liquid. If foam is created, the machine will not per- form properly.
  • Page 8 GD 750 Saucepan and ladle holder (8) Holder for pots, saucepans, bowls and smaller preparation containers. Containers from about 60 mm to 170 mm deep can be washed using this holder in the standard wash basket. Ladles, whisks, spatulas and the like can be washed in the net basket in the middle of the holder.

  • Page 9: Language Selection

    If the figures are flashing, the water is being heated. machine detects what kind of items are to be washed. NB: Granule Combi is unable to wash crockery and cutlery using Other indications Granules. How much time is remaining for the wash programme is always shown while washing is in progress.
  • Page 10 The warranty only applies if granules from Granuldisk AB are used in the machine. The plastic material in the granules may be used in connection When the wash programme is complete, the hood rises auto- with food.
  • Page 13 Granule programme button (6) nine times and the normal programme button (4) once. A Granule change reminder appears after washing with Granules for 7500 minutes. The GRANULE COMBI accumulated values tell you how many normal programmes are left until a change is required.
  • Page 14 8. HACCP Hygiene and Operation Documentation GDTdirect™ Storing data on an external computer Granuldisk Documentation Tool, GDTdirect, is an integrated To store complete operating data for the machine, it needs to be function for the documentation of the dishwashing machine’s connected to an external computer via a serial cable.
  • Page 15 5. Data is displayed directly on the computer screen: see the figure on the next page. The view is of a fixed size that cannot be changed, and the table headers are in English. The column width can be changed by placing the mouse in the table header and dragging.

  • Page 16: Error Messages

    5.Troubleshooting and alarms Error messages Check the following if the utensils are not completely clean: • Are the spray nozzles blocked? All alarms have a unique error code which you can report to ser- • Were the utensils located correctly? vice staff when you contact them.
  • Page 17 Error code Meaning Cause Action Water level too low in rinse The level in the rinse tank has fallen erro- Check the water connections to the rinse tank. Reset by pressing the STOP button. tank neously. Water level too low in wash The level in the wash tank has fallen erro- Check the water connections to the wash tank, as well as the drainage pipe.
  • Page 18 Notes...
