Downstream Screen Description
►
1 Selected channel. When pressing on it deploys a list of available channels.
2 Frequency selected. When pressing on it pops up a virtual numeric keypad
to edit frequency.
3 DOCSIS Bonding Group selected and carrier.
4 According to signal type:
•Digital signal: Power for channel bandwidth or frequency.
•Analogue signal: Level for channel or frequency selected.
5 Carrier/Noise ratio for channel selected.
6 Full band RF cable power.
7 Marker for selected channel / frequency.
8 Arrows to change reference level.
9 Span lower frequency.
10 Arrows to increase / decrease span. Current span.
11 Bandwidth resolution.
12 Span upper frequency.
Chapter 3: MEASUREMENT

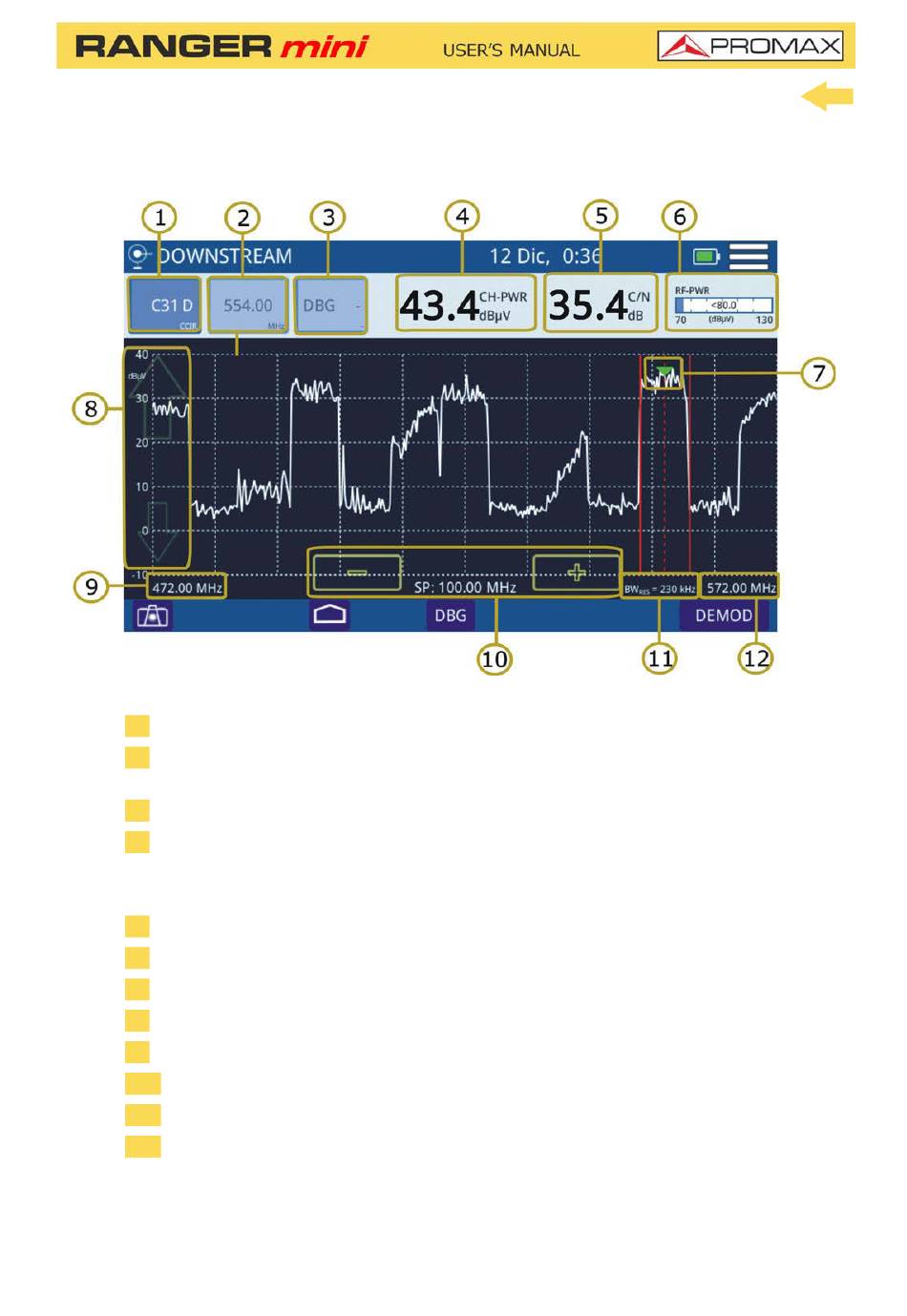

Figure 7. Downstream Spectrum
