Installation

Mounting
Hanging
The fixture can be mounted in a hanging position using the mounting
bracket. Fixture must be safe mounted in accordance with the relevant
regulations and provided with a safetycord to prevent falling.
Standing
The fixture can be mounted in an upright or sitting position. An appropriate
attachment (e.g. floorstand) is necessary. A safe and sufficient anti-slip
ground must be ensured!
NOTE
The LED module can be operated in any position.
Powerconnection
230V: max. 10 fixtures in a row.
120V: max. 5 fixtures in a row.

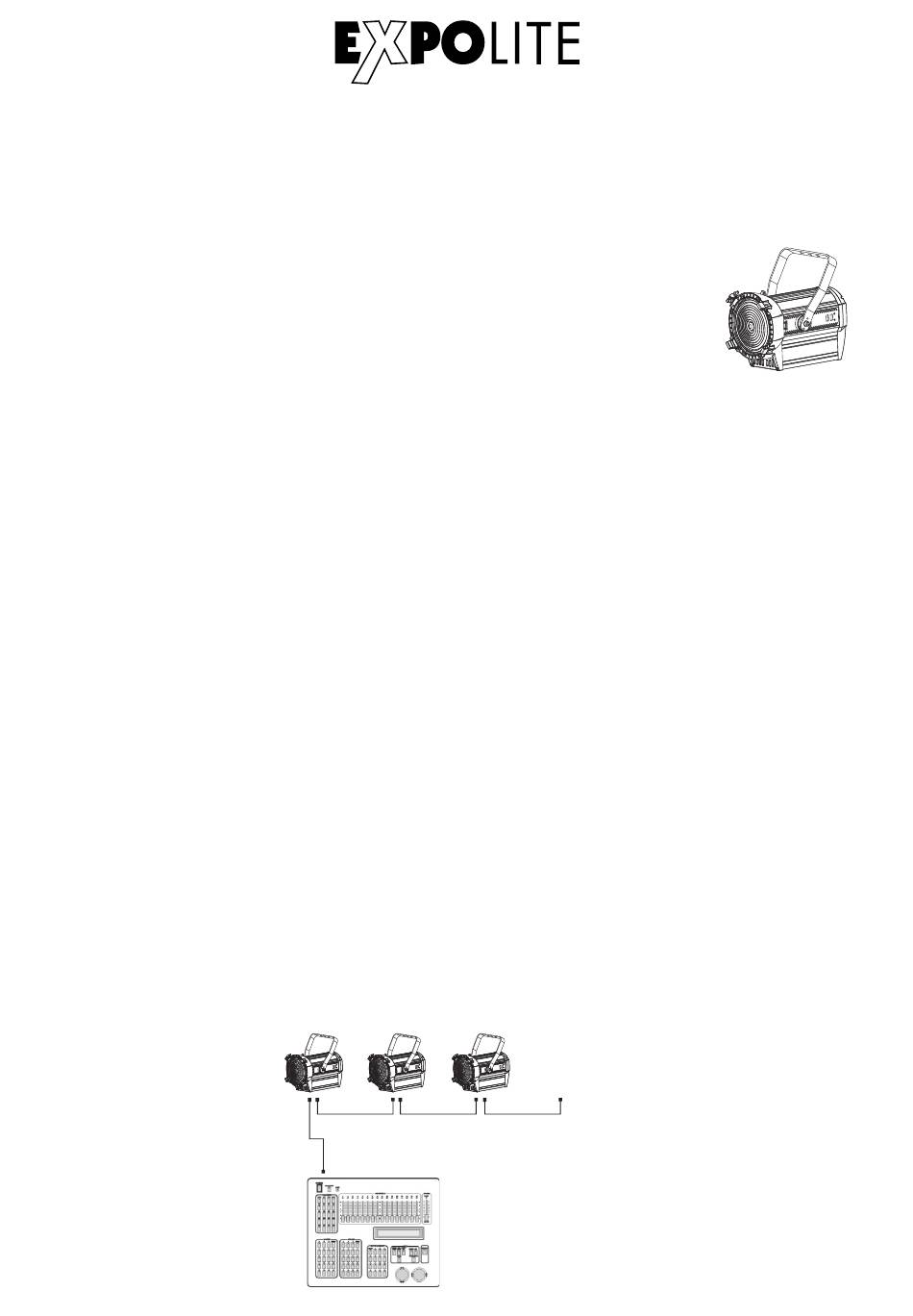

DMX-Connection
Use specified DMX-cables to connect the units to each other and to connect them to the control-
desk. Enter the addresses and personalities to the units.
DMX Addr.1 DMX Addr.(Nx1)+1
DMX512
CONTROLLER
E-23
DMX Addr.(Nx2)+1
. . . . . . . . . . . .
