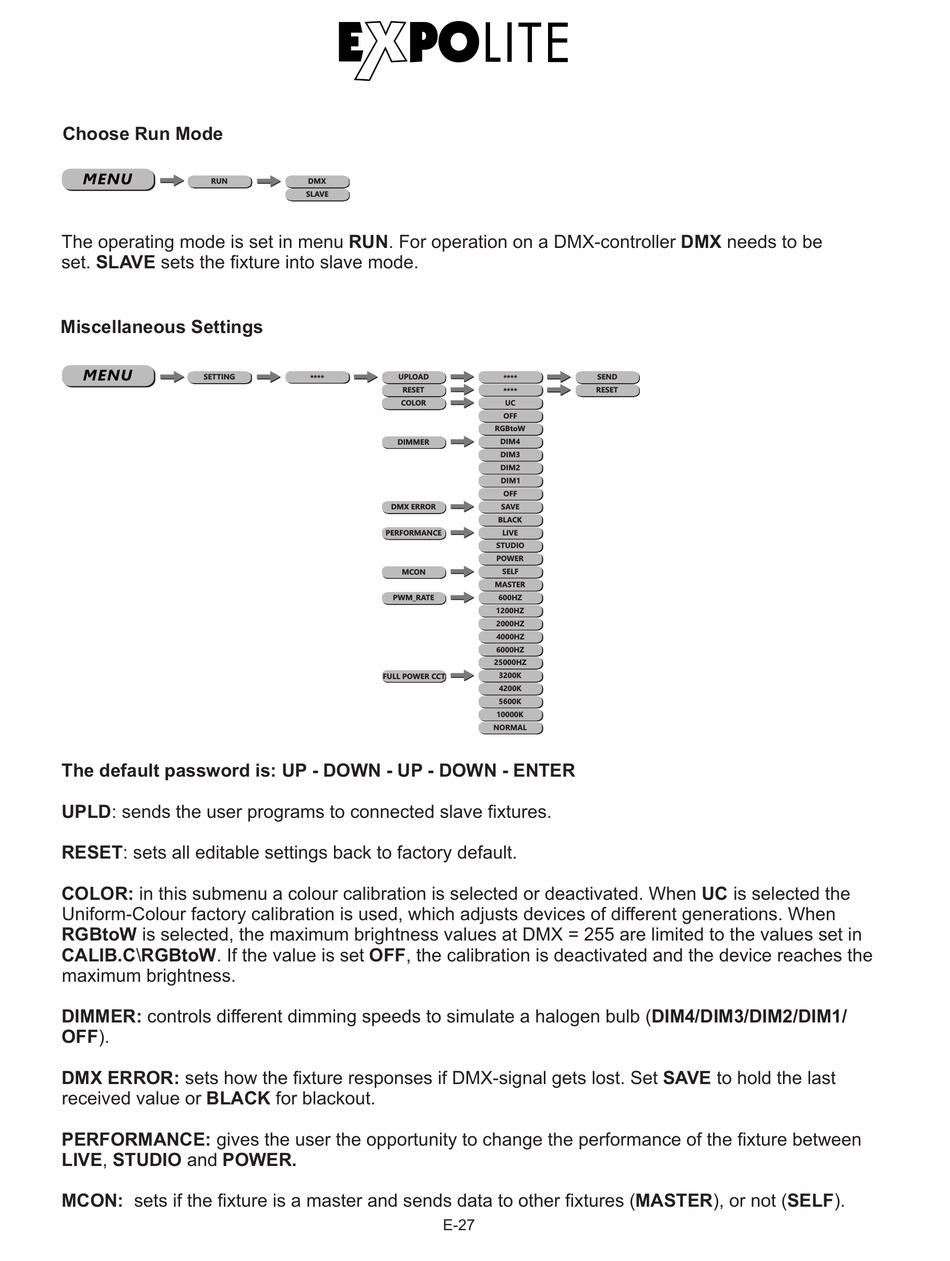

Choose Run Mode
MENU
PERSON RUN
The operating mode is set in menu RUN. For operation on a DMX-controller DMX needs to be
set. SLAVE sets the fixture into slave mode.
Miscellaneous Settings
MENU
SETTING
PERSON
The default password is: UP - DOWN - UP - DOWN - ENTER
UPLD: sends the user programs to connected slave fixtures.
RESET: sets all editable settings back to factory default.
COLOR: in this submenu a colour calibration is selected or deactivated. When UC is selected the
Uniform-Colour factory calibration is used, which adjusts devices of different generations. When
RGBtoW is selected, the maximum brightness values at DMX = 255 are limited to the values set in
CALIB.C\RGBtoW. If the value is set OFF, the calibration is deactivated and the device reaches the
maximum brightness.
DIMMER: controls different dimming speeds to simulate a halogen bulb (DIM4/DIM3/DIM2/DIM1/
OFF).
DMX ERROR: sets how the fixture responses if DMX-signal gets lost. Set SAVE to hold the last
received value or BLACK for blackout.
PERFORMANCE: gives the user the opportunity to change the performance of the fixture between
LIVE, STUDIO and POWER.
MCON: sets if the fixture is a master and sends data to other fixtures (MASTER), or not (SELF).
HSIC DMX
HSIC SLAVE
UPLOAD
****
HSIC RESET
HSIC COLOR
DIMMER HSIC
DMX ERROR HSIC
PERFORMANCE HSIC
HSIC MCON
PWM_RATE
HSIC
FULL POWER CCT HSIC
E-27
HSIC SEND
****
HSIC RESET
****
UC
OFF
RGBtoW
DIM4
DIM3
DIM2
DIM1
OFF
SAVE
BLACK
LIVE
STUDIO
POWER
SELF
MASTER
600HZ
1200HZ
2000HZ
4000HZ
6000HZ
25000HZ
3200K
4200K
5600K
10000K
NORMAL
