Expolite ELW MC12 Zoom CM+W User Manual

Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual
ELW MC12 Zoom CM+W
Bedienungsanleitung
Eigenschaften
Bedienelemente
Steuerung
Bedienungsanleitung bitte aufbewahren
Keep this Manual for later queries
Heruntergeladen von
manualslib.de
User Manual
Art.Nr.: led21160
Handbücher-Suchmachiene
Specifications
Änderungen sind ohne Ankündigung möglich.
Changes are possible without prior notice.
Rev. 2018-24-41
Menu
Control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELW MC12 Zoom CM+W and is the answer not in the manual?

Questions and answers

Related Manuals for Expolite ELW MC12 Zoom CM+W

Summary of Contents for Expolite ELW MC12 Zoom CM+W

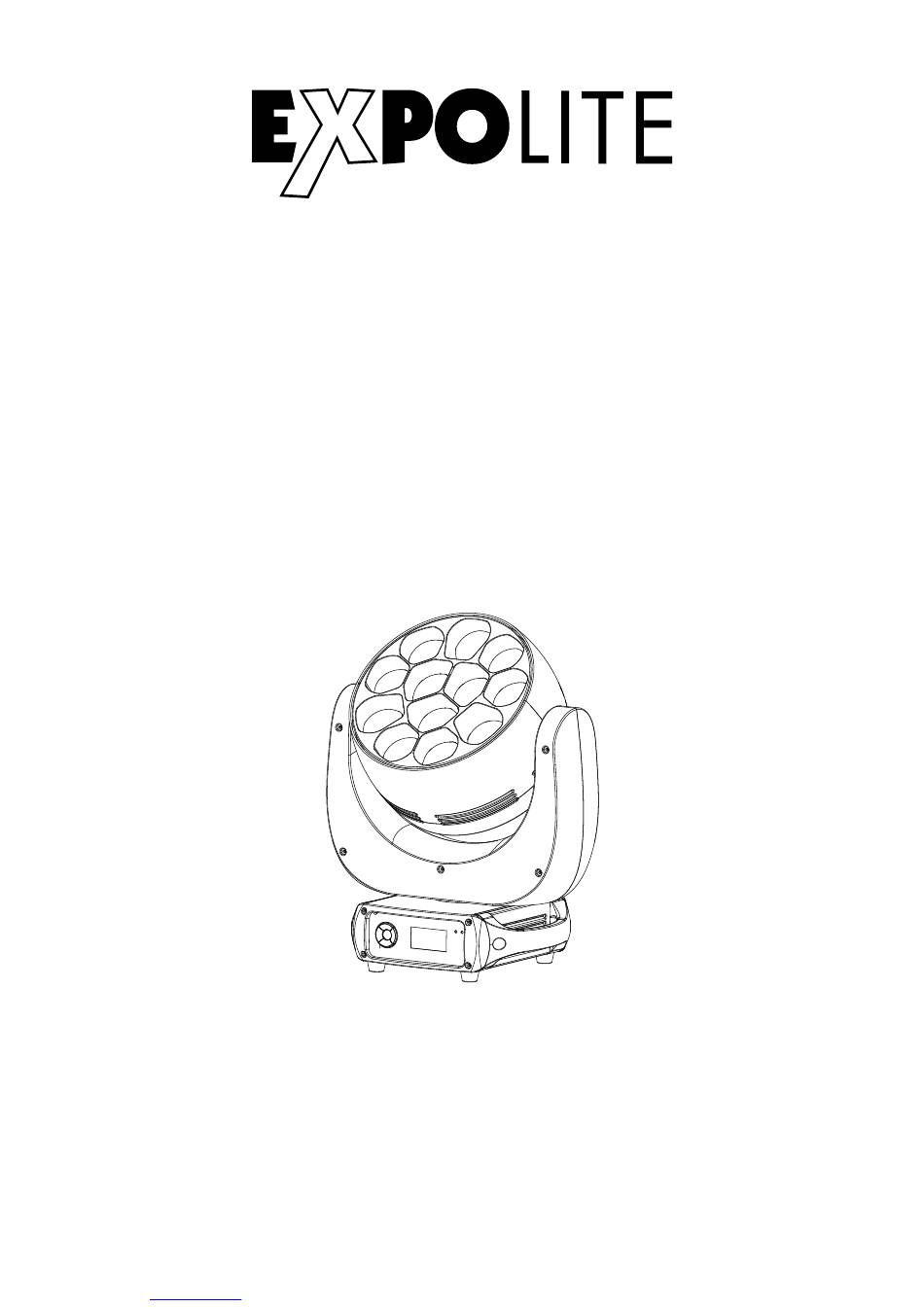

  • Page 1 ELW MC12 Zoom CM+W Bedienungsanleitung User Manual Art.Nr.: led21160 Specifications Eigenschaften Menu Bedienelemente Control Steuerung Bedienungsanleitung bitte aufbewahren Änderungen sind ohne Ankündigung möglich. Changes are possible without prior notice. Keep this Manual for later queries Rev. 2018-24-41 Heruntergeladen von manualslib.de...
  • Page 2 Die beiliegenden Bedienhinweise für Expolite Geräte sind Bestandteil dieser Bedienungs- anleitung. Lesen Sie diese sorgfältig, bevor Sie das Gerät in Betrieb nehmen. The enclosed General Information for Expolite Units are part of these user manual. Read them carefully before operating the device. FOCON SHOWTECHNIC...

  • Page 3: Table Of Contents

    Inhalt - Content Inhalt - Content Seite / Page Lieferumfang D-04 D-05 Technische Daten Abmessungen D-06 Installation D-07 Bedienung D-09 Steuerung mit DMX512 D-16 E-28 Delivery Product Information E-29 Dimensions E-30 Installation E-31 Operation E-33 Using DMX512 Controler E-40 Heruntergeladen von manualslib.de Handbücher-Suchmachiene...
  • Page 4 - Quicklock Montagebügel - Anschlusskabel für Spannungsversorgung - Bedienhinweise für Expolite Geräte - Bedienungsanleitung Expolite Geräte werden vor dem Versand sorgfältig geprüft. Sollte der Lieferumfang dennoch nicht vollständig sein, wenden Sie sich bitte umgehend an Ihren Vertriebspartner. D-04 Heruntergeladen von manualslib.de...

  • Page 5: Technische Daten

    Technische Daten Spannungsversorgung 100V - 240V AC 50/60Hz Maximale Leistungsaufnahme 510W Abmessungen 388 x 293 x 415 mm Gewicht 12 kg Anschlüsse Power In/Out | DMX In/Out | ArtNet In | WDMX Betriebstemperatur 0°C - 45°C Luftfeuchtigkeit < 98% Schutzklasse IP 20 Gehäuse Kunststoff...

  • Page 6: Abmessungen

    Abmessungen D-06 Heruntergeladen von manualslib.de Handbücher-Suchmachiene...

  • Page 7: Installation

    Installation Montage Hängend Das Gerät kann an den mitgelieferten Quicklock Montagebügeln hängend montiert werden. Geräte müssen entsprechend der jeweils gültigen Vorschriften sicher montiert und mit einer zweiten Sicherung gegen herabfallen versehen werden. Hierzu ist am Gerät eine Öse für Safeties angebracht.
  • Page 8 Verbindung der Spannungsversorgung Bei 230V: Maximal 6 Geräte in Reihe Bei 120V: Maximal 3 Geräte in Reihe Wechseln der Gerätesicherung SICHERUNG SICHERUNGSHALTER HINWEIS: Das Gerät vor dem Wechsel der Sicherung von der Spannungsversorgung trennen! HINWEIS: Nur geeignete Sicherungen entsprechend der Geräteangabe benutzen! Sicherunghalter mit Schraubendreher öffnen Defekte Sicherung entnehmen Neue Sicherung gleichen Wertes einsetzen...

  • Page 9: Bedienung

    Bedienung Bedienelemente am Gerät Enter into (Bitte für 3 Sekunden gedrückt halten) Menu Roll MENU - Taste: Eine Menüebene aufwärts ENTER-Taste: In gewähltes Menü springen; Eingabe bestätigen UP-Taste: Aufwärts blättern; Wert erhöhen Down DOWN-Taste Abwärts blättern; Wert verringern Weiter blättern ROLL-Taste Menüstruktur MENU...
  • Page 10 NETWORK DMX ERROR Net SWITCH DMX ERROR DMX ERROR IP MODE DEFAULTIP DMX ERROR CUSTOM IP CUSTOM IP EDIT XX.XX.XX.XX DMX ERROR DMX ERROR UNIVERS DMX ERROR ADDR XXX WDMX WDMX POWER DMX ERROR DMX ERROR WDMX RESET DMX ERROR DMX ERROR STAND ALONE DMX512...
  • Page 11 DMX-Adresse einstellen MENU PERSON ADDRESS HSIC 001-512 Im Menü wird im Punkt ADDRESS die DMX-Startadresse des Gerätes eingestellt. Diese bleibt auch bei dem Wechsel der Personality erhalten. DMX-Kanalbelegung einstellen MENU PERSON PERSON HSIC HSIC PERSON1 PERSON2 PIXEL Im Menü wird im Punkt PERSON die Belegung der DMX-Kanäle des Gerätes festgelegt. Es stehen die Modi HSIC (13 Kanäle), PERSON1 (13 Kanäle), PERSON2 (21 Kanäle), CMY (14 Kanäle) und PIXEL (57 Kanäle) zur Verfügung.
  • Page 12 MENU BLACKOUT PERFORM DIMMER DIM4 DIM3 DIM2 DIM1 COLOR RGBtoW FULL POWER CCT 3200K 4200K 5600K 10000K NORMAL DMX ERROR SAVE DMX ERROR BLACK DMX RESET YES/NO DMX ERROR DISPLAY YES/NO DMX ERROR DISPLAY ON SHORT LONG DISPLAY LOCK BLACKOUT: dimmt das Gerät für Pan-/Tilt Fahrten herunter. DIMMER: stellt die gewünschte Dimmkurve zur Simulation eines Halogenleuchtmittels ein (DIM4/ DIM3/DIM2/DIM1/OFF).
  • Page 13 MENU DMX ERROR UPLOAD LOAD PARA DMX ERROR PERFORM DMX ERROR LOAD EDIT DMX ERROR DMX ERROR SETTING SETTINGS LOCK DMX ERROR DMX ERROR SERVICE LOCK DMX ERROR DMX ERROR RECOVERY DMX ERROR **** WDMXHIDE DMX ERROR NETWORK DMX ERROR Net SWITCH DMX ERROR DMX ERROR...
  • Page 14 Runmode auswählen MENU DMX512 STAND ALONE ARTNET ARTNET2DMX AUTO1 AUTO2 CUSTOM TEST SLAVE Im Menü STAND ALONE wird im Untermenü RUN der Betriebsmodus eingestellt. Für den Betrieb an einem DMX-Kontroller muss DMX512 aktiviert werden. Für den Betrieb über das ArtNet-Protokoll muss der Modus ARTNET aktiviert sein.
  • Page 15 TEMPERATURE: zeigt die aktuelle Temperatur der LED-Einheit VERSION: zeigt die z.Zt. installierte Softwareversion des Gerätes NETWORK PARA: zeigt die z.Zt. eingestellten Netzwerkparameter RDM: im Untermenü UID kann die RDM-ID des Gerätes und im Untermenü LABEL die Bezeichnung des Gerätes eingesehen werden. Manueller Reset MENU MANUAL...

  • Page 16: Steuerung Mit Dmx512

    Steuerung mit DMX512 DMX-Kanalbelegung Dieses Gerät verfügt über verschiedene DMX-Personalities. Bei diesen werden unterschiedlich viele DMX-Kanäle belegt und die Reaktion des Gerätes unterscheidet sich entsprechend. Es sind 5 DMX-Personalities (13-/13-/14-/21-/57-Kanäle) wählbar. Durch Änderungen in der Gerätesoftware kann es zu weiteren oder geänderten Funktionen kommen. Auf der Website steht das aktuellste Dokument „DMX-Channels“...
  • Page 17 CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO AUTO1 AUTO2 CUSTOM TEST RESET NO FUNCTION DIM0 DIM1 DIM2 DIM3 DIM4 NO FUNCTION D-17 Heruntergeladen von manualslib.de Handbücher-Suchmachiene...
  • Page 18 PERSON1 CHANNEL VALUE FUNCTION TILT GREEN BLUE WHITE DIMMER MARCOS NO FUNCTION RED 100% / GREEN UP / BLUE 0% RED DOWN / GREEN 100% / BLUE 0% RED 0% / GREEN 100% / BLUE UP RED 0% / GREEN DOWN / BLUE 100% RED UP / GREEN 0% / BLUE 100% RED 100% /GREEN 0%/BLUE DOWN RED 100%/GREEN UP/BLUE UP...
  • Page 19 CHANNEL VALUE FUNCTION 4,5,6,7,8,9,10,11,12 1,2,3,6,7,10,12 1,2,3,4,6,8,10 1,2,3,4,7,9,12 1-2-3 1-3-2 4-5-6-7-8-9-10-11-12 12-11-10-9-8-7-6-5-4 1-2-3-4-5-6-7-8-9-10-11-12 12-11-10-9-8-7-6-5-4-3-2-1 (1-2-3)+(12-11-10-9-8-7-6-5-4) (1-3-2)+(4-5-6-7-8-9-10-11-12) 4,5-6,7-8,9-10,11-12,4-5,6-7,8-9,10-11,12 1,2,3-4,5,6,7,8,9,10,11,12 1,6,7-2,9,10-3,4,12-8-11-5 Set inner circle red, running 1-2-3 in 2700k Set inner circle orange, running 1-2-3 in 2700k Set inner circle yellow, running 1-2-3 in 2700k Set inner circle green, running 1-2-3 in 2700k Set inner circle cyan, running 1-2-3 in 2700k Set inner circle blue, running 1-2-3 in 2700k...
  • Page 20 CHANNEL VALUE FUNCTION AUTO SPEED (Slow to Fast) STROBE NO FUNCTION STROBE FROM SLOW TO FAST (0-25Hz) NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM STROBE ZOOM CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO AUTO1 AUTO2...
  • Page 21 CHANNEL VALUE FUNCTION PAN FINE TILT TILT FINE PT SPEED CYAN MAGENTA YELLOW DIMMER MARCOS NO FUNCTION CYAN 100% / MAGENTA UP / YELLOW 0% CYAN DOWN / MAGENTA 100% / YELLOW 0% CYAN 0% / MAGENTA 100% / YELLOW UP CYAN 0% / MAGENTA DOWN / YELLOW 100% CYAN UP / MAGENTA 0% / YELLOW 100% CYAN 100% /MAGENTA 0%/YELLOW DOWN...
  • Page 22 CHANNEL VALUE FUNCTION 4,5,6,7,8,9,10,11,12 1,2,3,6,7,10,12 1,2,3,4,6,8,10 1,2,3,4,7,9,12 1-2-3 1-3-2 4-5-6-7-8-9-10-11-12 12-11-10-9-8-7-6-5-4 1-2-3-4-5-6-7-8-9-10-11-12 12-11-10-9-8-7-6-5-4-3-2-1 (1-2-3)+(12-11-10-9-8-7-6-5-4) (1-3-2)+(4-5-6-7-8-9-10-11-12) 4,5-6,7-8,9-10,11-12,4-5,6-7,8-9,10-11,12 1,2,3-4,5,6,7,8,9,10,11,12 1,6,7-2,9,10-3,4,12-8-11-5 Set inner circle red, running 1-2-3 in 2700k Set inner circle orange, running 1-2-3 in 2700k Set inner circle yellow, running 1-2-3 in 2700k Set inner circle green, running 1-2-3 in 2700k Set inner circle cyan, running 1-2-3 in 2700k Set inner circle blue, running 1-2-3 in 2700k...
  • Page 23 CHANNEL VALUE FUNCTION STROBE NO FUNCTION STROBE FROM SLOW TO FAST (0-25Hz) NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM STROBE ZOOM CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO AUTO1 AUTO2 CUSTOM TEST RESET...
  • Page 24 PERSON2 CHANNEL VALUE FUNCTION PAN FINE TILT TILT FINE PT SPEED RED FINE GREEN GREEN FINE BLUE BLUE FINE WHITE WHITE FINE DIMMER DIMMER FINE MARCOS NO FUNCTION RED 100% / GREEN UP / BLUE 0% RED DOWN / GREEN 100% / BLUE 0% RED 0% / GREEN 100% / BLUE UP RED 0% / GREEN DOWN / BLUE 100% RED UP / GREEN 0% / BLUE 100%...
  • Page 25 CHANNEL VALUE FUNCTION Set inner circle maple, running 4-12 in 2700k Set inner circle red, running 4-12 in 5600k Set inner circle orange, running 4-12 in 5600k Set inner circle yellow, running 4-12 in 5600k Set inner circle green, running 4-12 in 5600k Set inner circle cyan, running 4-12 in 5600k Set inner circle blue, running 4-12 in 5600k Set inner circle maple, running 4-12 in 5600k...
  • Page 26 PIXEL CHANNEL VALUE FUNCTION PAN FINE TILT TILT FINE PT SPEED DIMMER STROBE NO FUNCTION STROBE FROM SLOW TO FAST (0-25Hz) NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM STROBE ZOOM CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO...
  • Page 27 CHANNEL VALUE FUNCTION RED 3 GREEN3 BLUE3 WHITE3 RED 4 GREEN4 BLUE4 WHITE4 RED 5 GREEN5 BLUE5 WHITE5 RED 6 GREEN6 BLUE6 WHITE6 RED 7 GREEN7 BLUE7 WHITE7 RED 8 GREEN8 BLUE8 WHITE8 RED 9 GREEN9 BLUE9 WHITE9 RED 10 GREEN10 BLUE10 WHITE10...
  • Page 28 - Accessory quicklock assembly frame - Power connection cable - General Information for Expolite Units - User Manual Expolite devices are carefully checked before shipment. If the delivery is not complete, please contact your distributor immediately. E-28 Heruntergeladen von manualslib.de...

  • Page 29: Product Information

    Product Information Voltage 100V - 240V AC 50/60Hz Power Consumption 510W Dimensions 388 x 293 x 415 mm Weight 12 kg Connectors Power In/Out | DMX In/Out | ArtNet In | WDMX Ambient Temperture 0°C - 45°C Humidity < 98% Protection IP 20 Housing...

  • Page 30: Dimensions

    Dimensions E-30 Heruntergeladen von manualslib.de Handbücher-Suchmachiene...

  • Page 31: Installation

    Installation Mounting Hanging The fixture can be mounted in a hanging position using the quicklock brackets. Fixture must be safe mounted in accordance with the relevant regulations and provided with a safetycord to prevent falling. For this purpose, an eyelet for safeties is attached to the device.
  • Page 32 Connection of power supply Bei 230V: max. 6 fixtures in a row Bei 120V: max. 3 fixtures in a row Changing the device fuse FUSE SAFTY CAP NOTE: Disconnect fixture from power supply before changing the device fuse! NOTE: Use only a specific fuse according to device specifications! Open fuse holder with screw driver Remove old fuse Insert new fuse with same value...

  • Page 33: Operation

    Operation Display Operation Enter into MENU: Return to previous menu (Press and hold for 3 seconds) ENTER: Enter currently selected menu Menu Roll Scroll up, Increase value Scroll down: Decrease value DOWN: ROLL: Roll forward Down Menu Map MENU PERSON ADDRESS HSIC 001-512...
  • Page 34 NETWORK DMX ERROR Net SWITCH DMX ERROR DMX ERROR IP MODE DEFAULTIP DMX ERROR CUSTOM IP CUSTOM IP EDIT XX.XX.XX.XX DMX ERROR DMX ERROR UNIVERS DMX ERROR ADDR XXX WDMX WDMX POWER DMX ERROR DMX ERROR WDMX RESET DMX ERROR DMX ERROR STAND ALONE DMX512...
  • Page 35 Setting DMX-Address MENU PERSON ADDRESS HSIC 001-512 The DMX start address of the fixture is set in the menu ADDRESS. This is retained even when changing the personality. Setting DMX-Personality MENU PERSON PERSON HSIC HSIC PERSON1 PERSON2 PIXEL The personality is set in the menu PERSON. There are five different modes which can be choosen: HSIC (13 channels), PERSON1 (13 channels), PERSON2 (21 channels), CMY (14 channels) and PIXEL (57 channels).
  • Page 36 MENU BLACKOUT PERFORM DIMMER DIM4 DIM3 DIM2 DIM1 COLOR RGBtoW FULL POWER CCT 3200K 4200K 5600K 10000K NORMAL DMX ERROR SAVE DMX ERROR BLACK DMX RESET YES/NO DMX ERROR DISPLAY YES/NO DMX ERROR DISPLAY ON SHORT LONG DISPLAY LOCK BLACKOUT: dims out the fixture for PAN/TILT-movement. DIMMER: controls different dim curves to simulate a halogen bulb (DIM4/DIM3/DIM2/DIM1/OFF).
  • Page 37 MENU DMX ERROR UPLOAD LOAD PARA DMX ERROR PERFORM DMX ERROR LOAD EDIT DMX ERROR DMX ERROR SETTING SETTINGS LOCK DMX ERROR DMX ERROR SERVICE LOCK DMX ERROR DMX ERROR RECOVERY DMX ERROR **** WDMXHIDE DMX ERROR NETWORK DMX ERROR Net SWITCH DMX ERROR DMX ERROR...
  • Page 38 Setting Runmode MENU DMX512 STAND ALONE ARTNET ARTNET2DMX AUTO1 AUTO2 CUSTOM TEST SLAVE The operating mode is set in menu STAND ALONE, submenu RUN. For operation on a DMX-controller DMX512 needs to be set. For operation via ArtNet ARTNET needs to be set. In mode ARTNET2DMX the choosen universe of the ArtNet input is sent to the XLR connectors.
  • Page 39 TEMPERATURE: current temperature of the LED fixture. VERSION: installed software version of the fixture. NETWORK PARA: Overview of the preset network parameters RDM: in the submenu UID the RMD-ID of the fixture and in the submenu LABEL the model name of the fixture can be found.

  • Page 40: Using Dmx512 Controler

    Using DMX512 Control DMX-Channel assignment This device has several DMX personalities. In each personality a different number of DMX channels is used and the reaction of the device differs accordingly. There are five DMX personalities with 13, 13, 14, 21 and 57 channels selectable. Because of changes in the firmware of the fixture, functions can be added or changed.
  • Page 41 CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO AUTO1 AUTO2 CUSTOM TEST RESET NO FUNCTION DIM0 DIM1 DIM2 DIM3 DIM4 NO FUNCTION E-41 Heruntergeladen von manualslib.de Handbücher-Suchmachiene...
  • Page 42 PERSON1 CHANNEL VALUE FUNCTION TILT GREEN BLUE WHITE DIMMER MARCOS NO FUNCTION RED 100% / GREEN UP / BLUE 0% RED DOWN / GREEN 100% / BLUE 0% RED 0% / GREEN 100% / BLUE UP RED 0% / GREEN DOWN / BLUE 100% RED UP / GREEN 0% / BLUE 100% RED 100% /GREEN 0%/BLUE DOWN RED 100%/GREEN UP/BLUE UP...
  • Page 43 CHANNEL VALUE FUNCTION 4,5,6,7,8,9,10,11,12 1,2,3,6,7,10,12 1,2,3,4,6,8,10 1,2,3,4,7,9,12 1-2-3 1-3-2 4-5-6-7-8-9-10-11-12 12-11-10-9-8-7-6-5-4 1-2-3-4-5-6-7-8-9-10-11-12 12-11-10-9-8-7-6-5-4-3-2-1 (1-2-3)+(12-11-10-9-8-7-6-5-4) (1-3-2)+(4-5-6-7-8-9-10-11-12) 4,5-6,7-8,9-10,11-12,4-5,6-7,8-9,10-11,12 1,2,3-4,5,6,7,8,9,10,11,12 1,6,7-2,9,10-3,4,12-8-11-5 Set inner circle red, running 1-2-3 in 2700k Set inner circle orange, running 1-2-3 in 2700k Set inner circle yellow, running 1-2-3 in 2700k Set inner circle green, running 1-2-3 in 2700k Set inner circle cyan, running 1-2-3 in 2700k Set inner circle blue, running 1-2-3 in 2700k...
  • Page 44 CHANNEL VALUE FUNCTION AUTO SPEED (Slow to Fast) STROBE NO FUNCTION STROBE FROM SLOW TO FAST (0-25Hz) NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM STROBE ZOOM CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO AUTO1 AUTO2...
  • Page 45 CHANNEL VALUE FUNCTION PAN FINE TILT TILT FINE PT SPEED CYAN MAGENTA YELLOW DIMMER MARCOS NO FUNCTION CYAN 100% / MAGENTA UP / YELLOW 0% CYAN DOWN / MAGENTA 100% / YELLOW 0% CYAN 0% / MAGENTA 100% / YELLOW UP CYAN 0% / MAGENTA DOWN / YELLOW 100% CYAN UP / MAGENTA 0% / YELLOW 100% CYAN 100% /MAGENTA 0%/YELLOW DOWN...
  • Page 46 CHANNEL VALUE FUNCTION 4,5,6,7,8,9,10,11,12 1,2,3,6,7,10,12 1,2,3,4,6,8,10 1,2,3,4,7,9,12 1-2-3 1-3-2 4-5-6-7-8-9-10-11-12 12-11-10-9-8-7-6-5-4 1-2-3-4-5-6-7-8-9-10-11-12 12-11-10-9-8-7-6-5-4-3-2-1 (1-2-3)+(12-11-10-9-8-7-6-5-4) (1-3-2)+(4-5-6-7-8-9-10-11-12) 4,5-6,7-8,9-10,11-12,4-5,6-7,8-9,10-11,12 1,2,3-4,5,6,7,8,9,10,11,12 1,6,7-2,9,10-3,4,12-8-11-5 Set inner circle red, running 1-2-3 in 2700k Set inner circle orange, running 1-2-3 in 2700k Set inner circle yellow, running 1-2-3 in 2700k Set inner circle green, running 1-2-3 in 2700k Set inner circle cyan, running 1-2-3 in 2700k Set inner circle blue, running 1-2-3 in 2700k...
  • Page 47 CHANNEL VALUE FUNCTION STROBE NO FUNCTION STROBE FROM SLOW TO FAST (0-25Hz) NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM STROBE ZOOM CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO AUTO1 AUTO2 CUSTOM TEST RESET...
  • Page 48 PERSON2 CHANNEL VALUE FUNCTION PAN FINE TILT TILT FINE PT SPEED RED FINE GREEN GREEN FINE BLUE BLUE FINE WHITE WHITE FINE DIMMER DIMMER FINE MARCOS NO FUNCTION RED 100% / GREEN UP / BLUE 0% RED DOWN / GREEN 100% / BLUE 0% RED 0% / GREEN 100% / BLUE UP RED 0% / GREEN DOWN / BLUE 100% RED UP / GREEN 0% / BLUE 100%...
  • Page 49 CHANNEL VALUE FUNCTION Set inner circle maple, running 4-12 in 2700k Set inner circle red, running 4-12 in 5600k Set inner circle orange, running 4-12 in 5600k Set inner circle yellow, running 4-12 in 5600k Set inner circle green, running 4-12 in 5600k Set inner circle cyan, running 4-12 in 5600k Set inner circle blue, running 4-12 in 5600k Set inner circle maple, running 4-12 in 5600k...
  • Page 50 PIXEL CHANNEL VALUE FUNCTION PAN FINE TILT TILT FINE PT SPEED DIMMER STROBE NO FUNCTION STROBE FROM SLOW TO FAST (0-25Hz) NO FUNCTION LIGHTNING STROBE NO FUNCTION RANDOM STROBE ZOOM CONTROL NO FUNCTION PAN/TILT BLACK ACTIVATED PAN/TILT BLACK DEACTIVATED FAN SLOW FAN NORMAL FAN FAST FAN AUTO...
  • Page 51 CHANNEL VALUE FUNCTION RED 3 GREEN3 BLUE3 WHITE3 RED 4 GREEN4 BLUE4 WHITE4 RED 5 GREEN5 BLUE5 WHITE5 RED 6 GREEN6 BLUE6 WHITE6 RED 7 GREEN7 BLUE7 WHITE7 RED 8 GREEN8 BLUE8 WHITE8 RED 9 GREEN9 BLUE9 WHITE9 RED 10 GREEN10 BLUE10 WHITE10...
  • Page 52 © 2018 by Focon Showtechnic Vertriebsgesellschaft mbH Heruntergeladen von manualslib.de Handbücher-Suchmachiene...
