INSTALLATION
2.1

MOUNTING

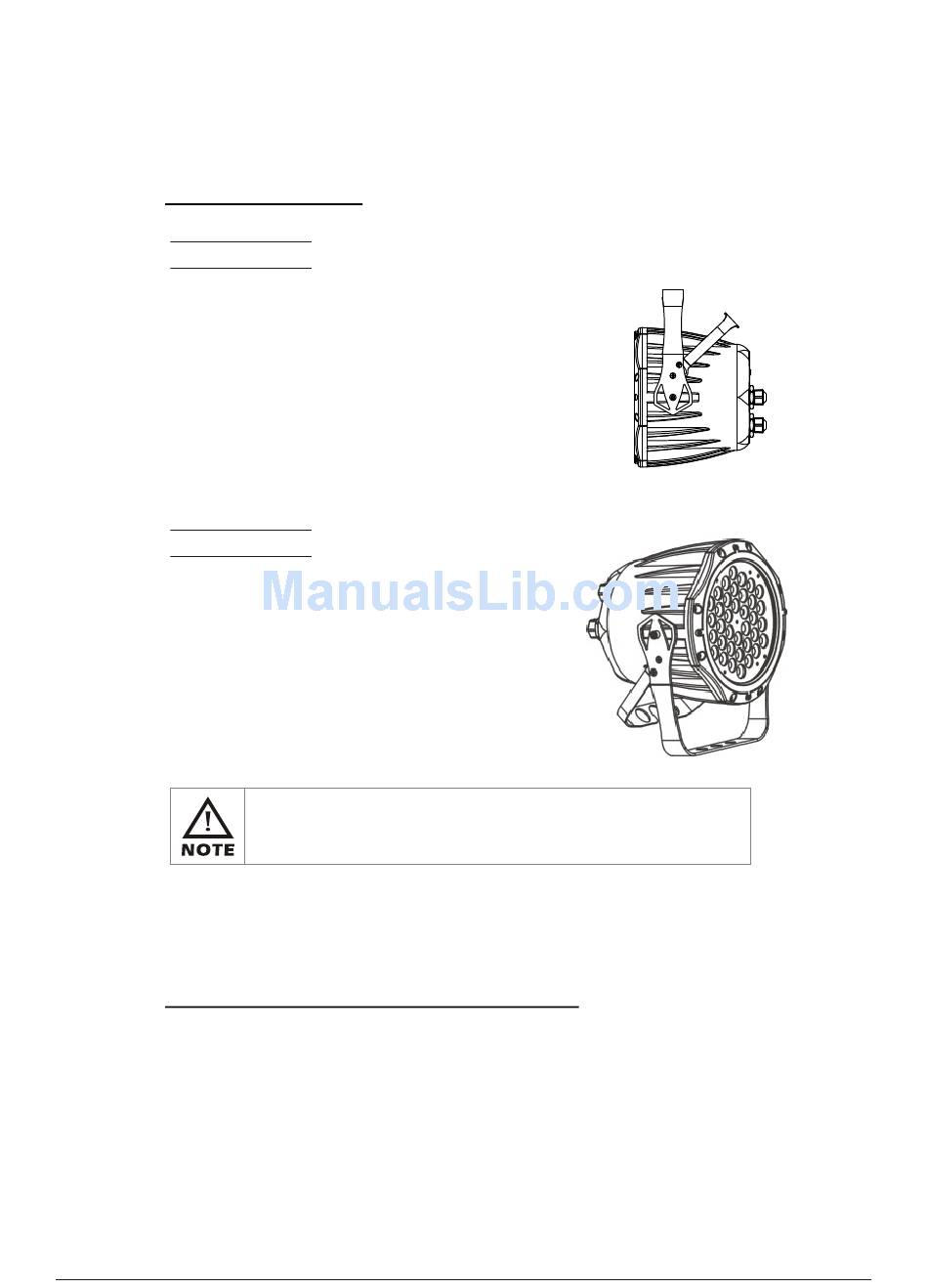

HANGING
The LED PAR can be mounted in a hanging position using
the supporting bracket. The bracket should be secured to
the mounting truss or structure using a standard mounting
clamp. Please note that when hanging the unit a safety
cable should also be used.
UPRIGHT
The LED PAR can be mounted in an upright or
sitting position using the supporting brackets.
2.2 POWER CONNECTIONS
@ 220V: 50 units may be connected in series
@120V: 25 units may be connected in series
Note: As this fixture's DMX signal cable connection is Parallel connection, so if over 20 units
to be connected, then a DMX signal amplifier is needed.
2 INSTALLATION
The LED MODULE can be mounted at any angle and in any
position. It is possible to further adjust the angle of the LED
MODULE using the two adjustment knobs located on the side of
the fixture.
