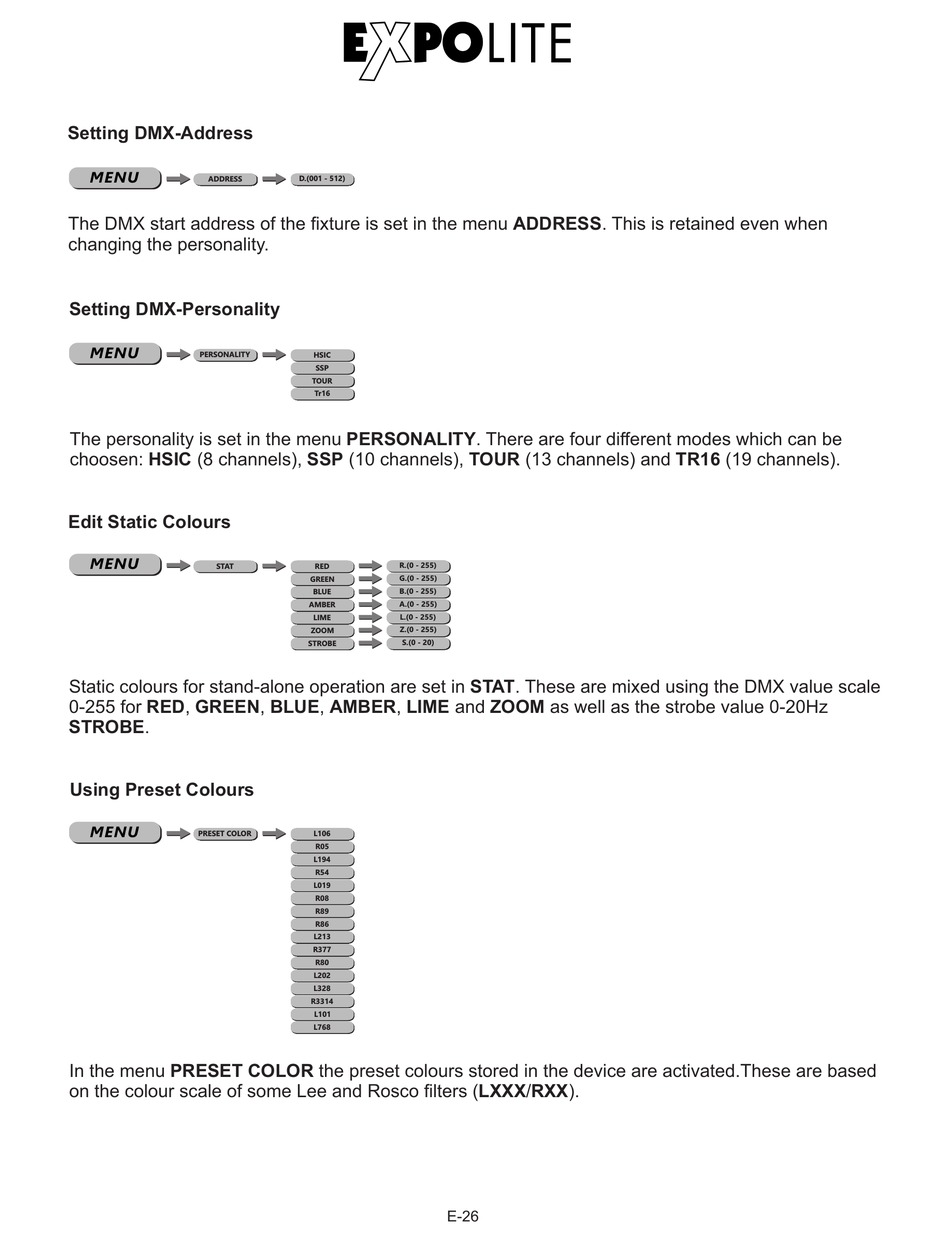

Expolite led22940 User Manual page 18

Setting DMX-Address
MENU
PERSON ADDRESS
The DMX start address of the fixture is set in the menu ADDRESS. This is retained even when
changing the personality.
Setting DMX-Personality
MENU
PERSONALITY PERSON
The personality is set in the menu PERSONALITY. There are four different modes which can be
choosen: HSIC (8 channels), SSP (10 channels), TOUR (13 channels) and TR16 (19 channels).
Edit Static Colours
MENU
PERSON STAT
Static colours for stand-alone operation are set in STAT. These are mixed using the DMX value scale
0-255 for RED, GREEN, BLUE, AMBER, LIME and ZOOM as well as the strobe value 0-20Hz
STROBE.
Using Preset Colours
MENU
PRESET COLOR
PERSON
In the menu PRESET COLOR the preset colours stored in the device are activated.These are based
on the colour scale of some Lee and Rosco filters (LXXX/RXX).
