5. Diagnose

5.1 Connection

1. Turn the ignition off.
2. Locate vehicle's DLC socket: It provides standard 16 pins and is generally
located on driver's side, about 12 inches away from the center of dashboard.
See Figure 2-2. If DLC is not equipped under dashboard, a label indicating
its position will be given. In case no DLC is found, please refer to Automobile
Repair Manual.
3. Plug one end of the diagnostic cable into the DB-15 connector of the tool, and
tighten the captive screws. Connect the other end to the vehicle's DLC.

5.2 Smart Diagnosis (Auto-Detect)

After connection, turn the ignition key on and the system enters auto-detect
mode.
14
Vehicle's DLC
Diagnostic Cable

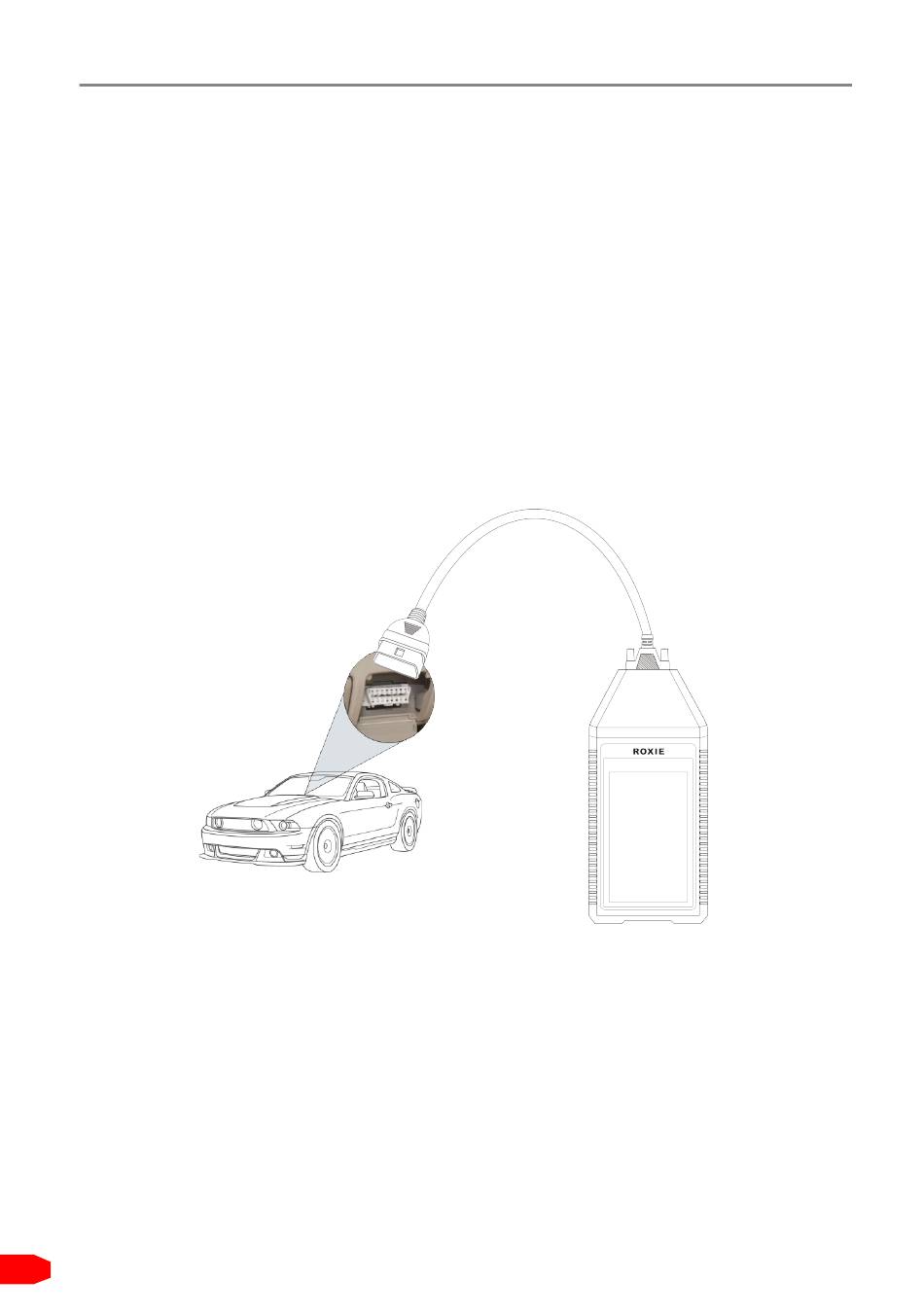

Figure 5-1
