DMX Dip Switch Setting

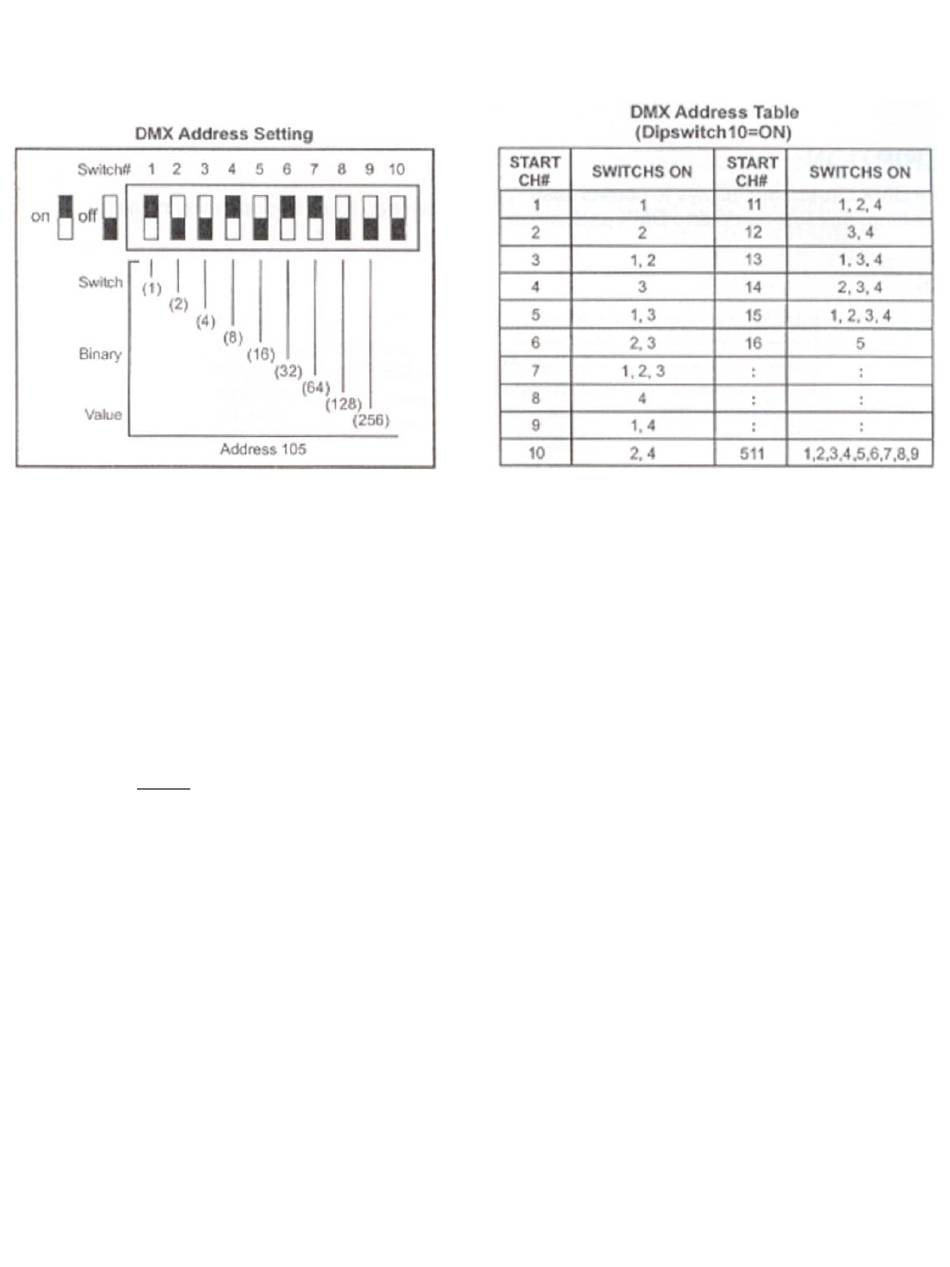

A. In DMX Pack Mode, see the following figures for the desired Channel Setting:
DMX products must have their own "address" to receive DMX signals.
Addresses on the Showtec Titan Strobe are set by flipping the appropriate DMX dip switches.
You need to know that DMX address settings are the sum of the dip switch values.
Example
Titan strobe Address Value
Unit 1
Switch Value
#1 1
#5 16 +
Total sum 17
Once address values are determined, add DMX dip switch values to obtain the appropriate address (DMX
Dip Switches "ON") for each unit. Flip appropriate DMX dip switches on each unit.
DMX Dip Switches "ON"
17 #1 , #5
