Summary of Contents for GLP Impression E350

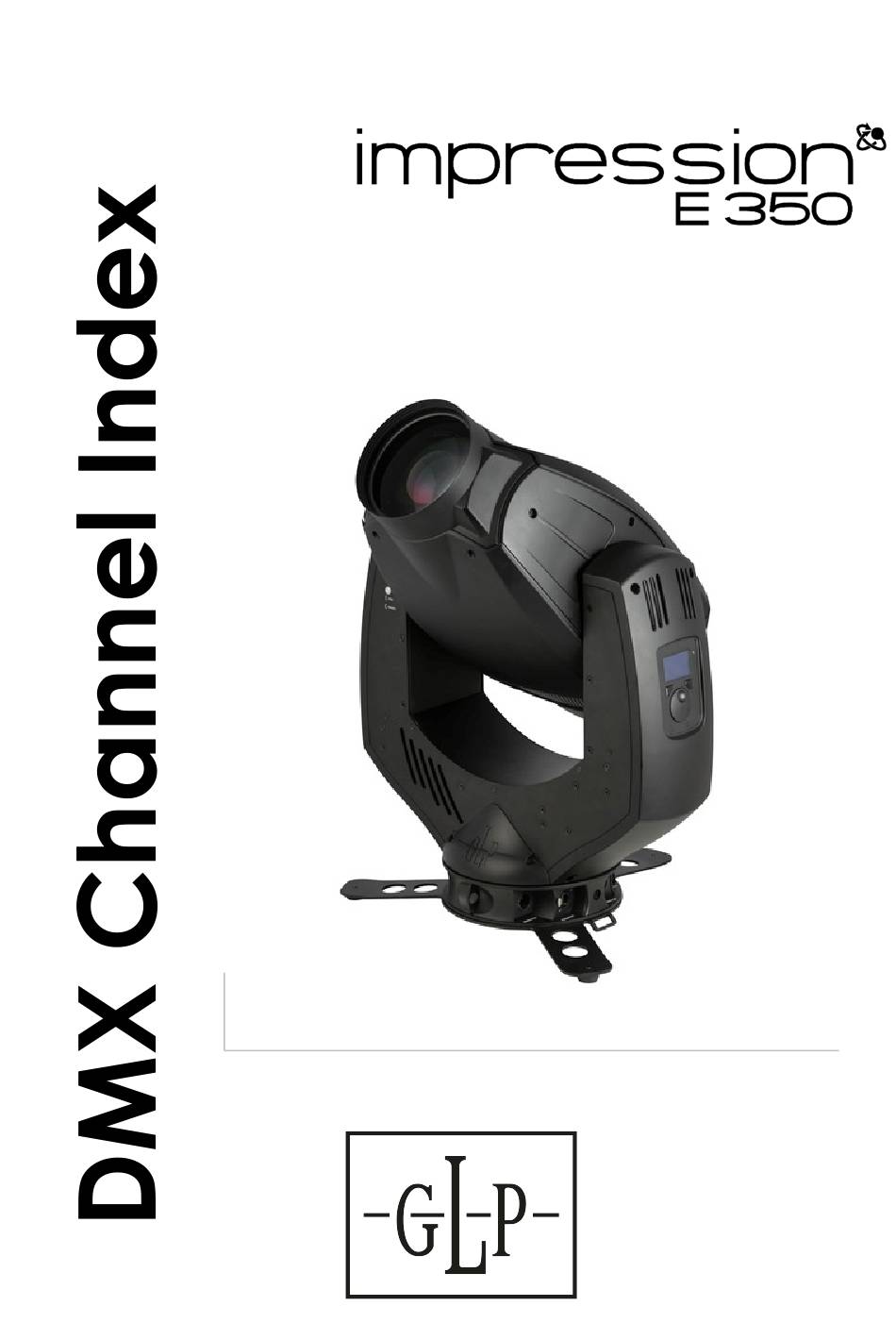

  • Page 1 Software v. 28-40-31-27...
  • Page 2 This user manual covers fixture software version v. 28-40-21-27 © 2018 German Light Products GmbH. All rights reserved. The marks ‘GLP’, ‘German Light Products’ and ‘impression’ are trademarks registered as the property of German Light Products GmbH in Germany, in the United States of America and in other countries.
  • Page 3 GLP® impression E350 DMX channel index Normal mode (27 DMX channels) Default Channel Function Description % Range Fade range Pan coarse Left – right in 1.2° 0 – 65535 32767 0 – 100% Fade increments (16 bit) Pan fine Tilt coarse Up –...
  • Page 4 5800 K 120 – 123 47.1 – 48.2% Fade 5700 K 124 – 127 48.6 – 49.8% continued 5600 K 128 – 131 50.2 – 51.4% 5500 K 132 – 135 51.8 – 52.9% 5400 K 136 – 139 53.3 –...
  • Page 5 GLP® Gobo 04 64 – 79 25.1 – 31% Snap continued Gobo 05 80 – 95 31.4 – 37.3% Gobo 06 96 – 111 37.6 – 43.5% Gobo 07 112 – 127 43.9 – 49.8% Gobo wheel rotation stop 50.2% Gobo wheel rotation CW fast –...
  • Page 6 Gobo 05 40 – 47 15.7 – 18.4% Snap continued Gobo 06 48 – 55 18.8 – 21.6% Gobo 07 56 – 63 22.0 – 24.7% Gobo 08 64 – 71 25.1 – 27.8% Gobo 09 72 – 79 28.2 –...
  • Page 7 GLP® Dimmer coarse Intensity 0 – 100% 0 – 65535 32768 0 – 100% Fade Dimmer fine Focus coarse Near – far 0 – 65535 32768 0 – 100% Fade Focus fine Zoom 0 – 255 0 – 100% Fade Wide –...
  • Page 8 Special / Control No function 0 – 38 0 – 14.9% Snap Dimmer curve extra soft* 39 – 41 15.3 – 16.1% Dimmer curve linear* 42 – 44 16.5 – 17.3% No function 45 – 53 17.6 – 20.8% Display off* 54 –...
  • Page 9 GLP® FX1 selection No FX 0 – 10 0 – 3.9% Snap Chaser 1-2-3-4-3-2-1 11 – 14 4.3 – 5.5% Crossfade 1-2-3-4-3-2-1 15 – 18 5.9 – 7.1% Chaser 1+2 – 3+4 19 – 22 7.5 – 8.6% Crossfade 1+2 – 3+4 23 –...
