ELECTRICAL

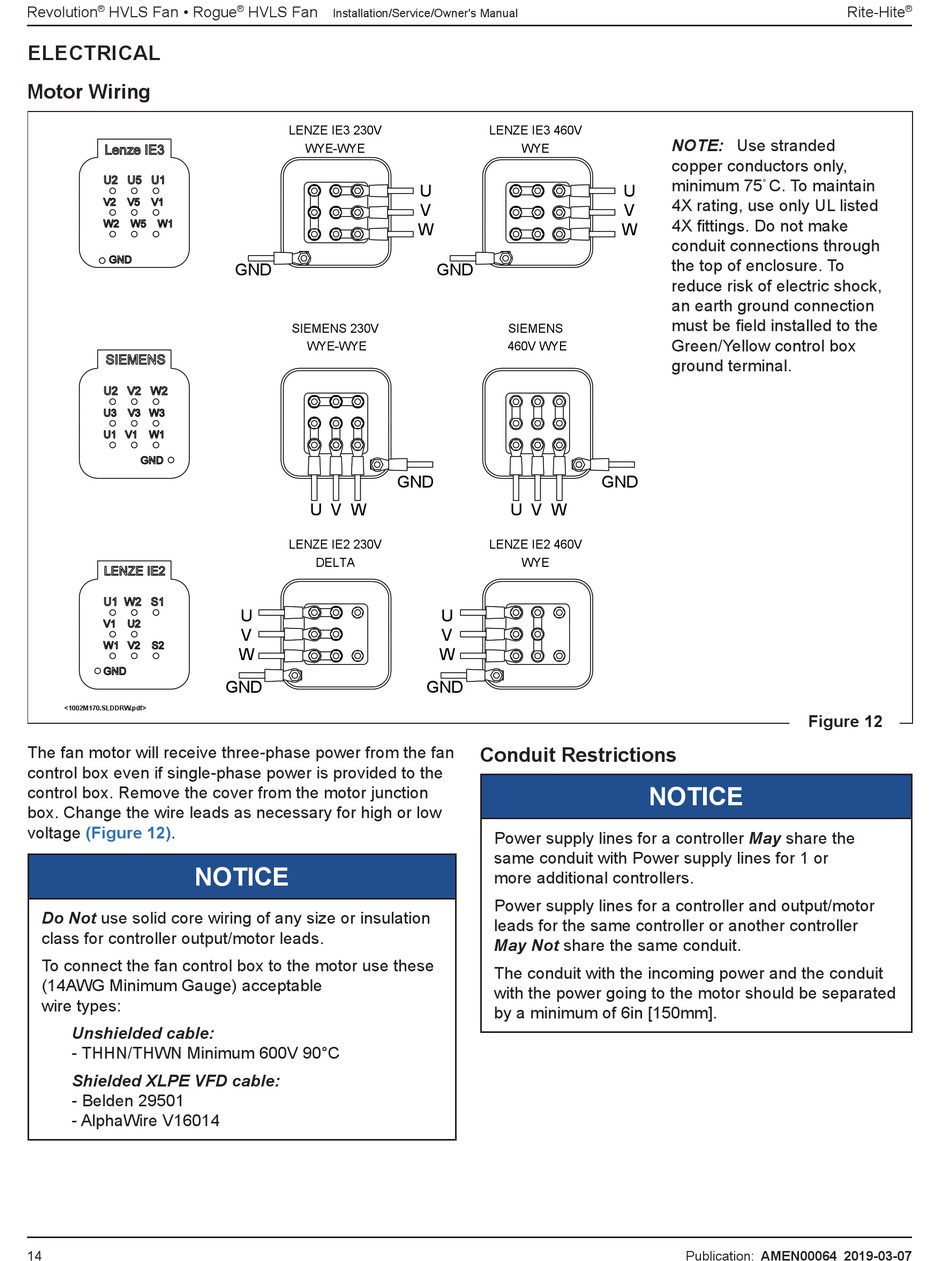

Motor Wiring

<1002M170.SLDDRW.pdf>
The fan motor will receive three‑phase power from the fan
control box even if single‑phase power is provided to the
control box Remove the cover from the motor junction
box Change the wire leads as necessary for high or low
voltage (Figure 12)
NOTICE
Do
ot use solid core wiring of any size or insulation
class for controller output/motor leads
To connect the fan control box to the motor use these
(14AWG Minimum Gauge) acceptable
wire types:
Unshielded cableE:
‑ THHN/THWN Minimum 600V 90°C
Shielded XLPT VFD cableE:
‑ Belden 29501
‑ AlphaWire V16014
14
HVLS Fan
®
Installation/Service/Owner's Manual
LENZE IE3 230V
WYE-WYE
GND
SIEMENS 230V
WYE-WYE
GND
U V W
LENZE IE2 230V
DELTA
U
V
W
GND
NORD 230V
WYE-WYE
LENZE IE3 460V
WYE
U
V
W
GND
SIEMENS
460V WYE
U V W
LENZE IE2 460V
WYE
U
V
W
GND
NORD 460V

Conduit Restrictions

WYE
U
Power supply lines for a controller May share the
V
same conduit with Power supply lines for 1 or
W
more additional controllers
GND
Power supply lines for a controller and output/motor
leads for the same controller or another controller
May
ot share the same conduit
The conduit with the incoming power and the conduit
with the power going to the motor should be separated
by a minimum of 6in [150mm].

Use stranded

NOTE:
copper conductors only,
minimum 75 ̊ C. To maintain
U
4X rating, use only UL listed
V
4X fittings. Do not make
W
conduit connections through
the top of enclosure To
reduce risk of electric shock,
an earth ground connection
must be field installed to the
SIEMENS 575V
Green/Yellow control box
ground terminal
GND
NOTICE
U
V
W
GND
Publication: AMEN00064 2019‑03‑07
Rite‑Hite
®
WYE
U
V
W
GND
Figure 12
NORD 575V
WYE
U
V
W
GND
