ELECTRICAL

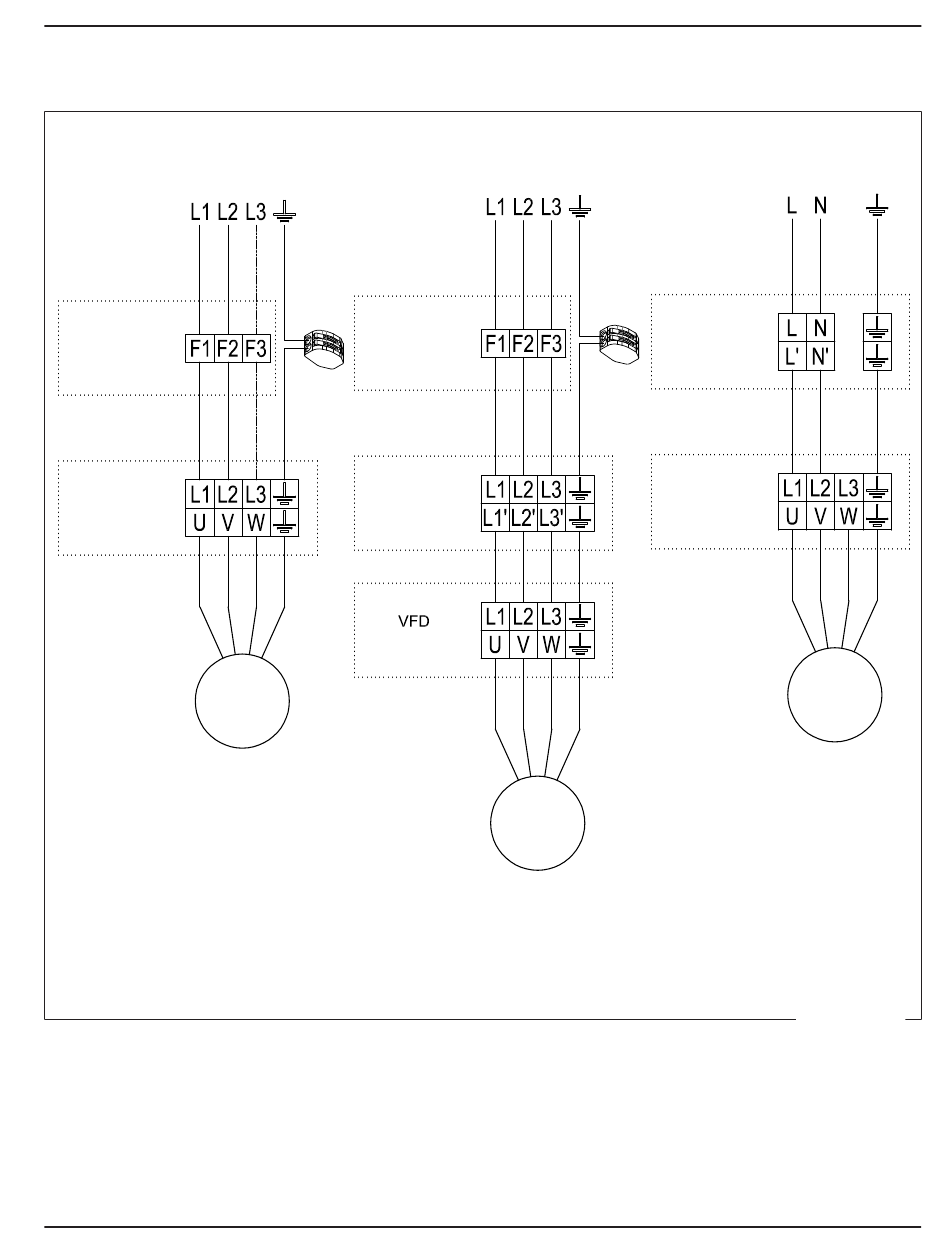

Control Box Wiring

Standard 3ɸ / 1ɸ
Incoming Power Supply
Fuse
Block
VFD
Motor conductors field
terminated to VFD
terminals using M4 fork
connectors (provided),
torque to 15Nm


NOTE: L3 wire and F3 fuse omitted for
230V single phase input option
• All factory wiring 14 AWG AVLV2/8
• Power wiring to be black
• Ground conductors to be green/yellow
Publication: AMEN00064 2019‑03‑07
EMC Option 3ɸ
Incoming Power Supply
Fuse
Block
EMC
Filter
Motor conductors
Motor
field terminated to
VFD terminals using
M4 fork connectors
(provided), torque to
15Nm
Installation/Service/Owner's Manual
Motor
Revolution HVLS Fan • Rogue
®
EMC Option 1ɸ
Incoming Power Supply
EMC
Filter
VFD
Motor conductors
field terminated to
VFD terminals using
M4 fork connectors
(provided), torque to
15Nm
HVLS Fan
®
Motor
Figure 13
