Fan Electrical Installation; Field Wiring; (Typical) - RITE-HITE Revolution HVLS Fan Owner's Manual

Revolution HVLS Fan • Rogue
®
INSTALLATION

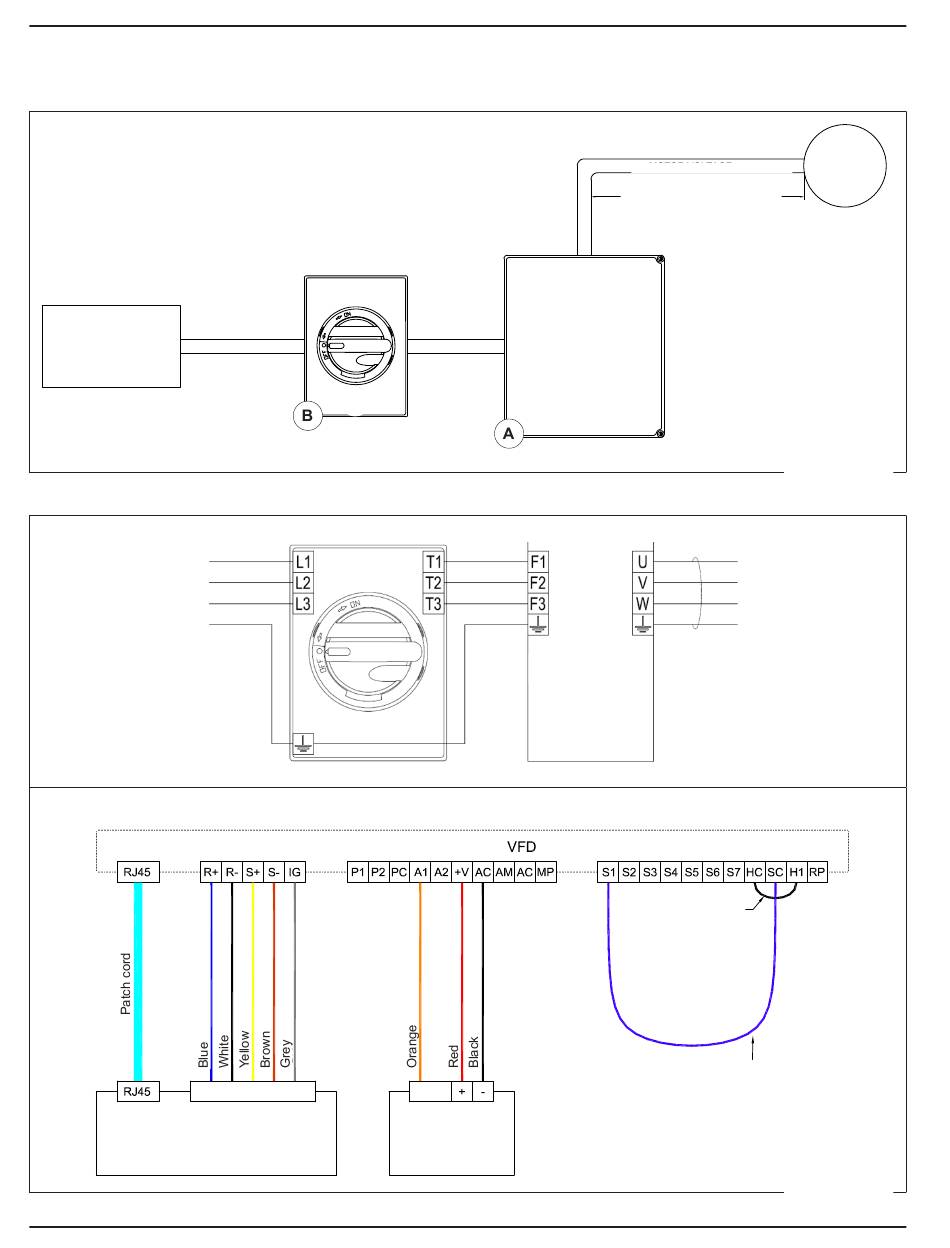

Step 8 – Fan Electrical Installation
A Mount Fan Control Box (VFD Enclosure) at maintenance accessible height
B Mount disconnect at accessible height, according to local code
Mount Fan Control Box (A) and disconnect (B) safely outside the fan diameter
Incoming Power from
End User Supplied
Branch Circuit
Line Voltage
Protective Device

Field Wiring

Power/High Voltage
Incoming Power from
End User Supplied
Branch Circuit


NOTE:
‑ If fan runs backwards
swap 2 motor wires
- L3 not used on 1ɸ fans.
Copper conductors only
14‑8 AWG, 75°C min
Control/Low Voltage
Radio PCB
12
HVLS Fan
®
Installation/Service/Owner's Manual

(TYPICAL)

Fan Motor
Disconnect
Line Voltage
Fan Motor
Disconnect
Terminal Torque 20lb‑in Max
OUT
Temperature
Fan Control Box
(14in x 16in x 8in
VFD Enclosure)
Fan Control Box
Incoming Power
Terminated at
F1, F2, F3
Fuse Holder
Enable Jumper:
Opening the factory installed jumper between
S1 and SC will cause the fan to initiate a
controlled stop These points may be wired to
a contact from a fire system or BMS to stop the
Optional
fans during an alarm or water flow event.
Sensor
Motor Voltage
160ft [50m] Max Motor Run
To Fan Motor
ACCTPOABLTE:
Unshielded Stranded Conductor Types:
THHN/THWN in Metallic Conduit
Shielded Stranded Cable Types:
Belden 29501
AlphaWire V16014
Use copper wire only, minimum 600V 75°C
Jumper Wire
DO NOT Remove
Publication: AMEN00064 2019‑03‑07
Rite‑Hite
®
Fan Motor
3ɸ
Figure 9
Figure 10
