Machine description
PICO 162, PICO 162 MV
4
Machine description
4.1
PICO 162, PICO 162 MV
4.1.1

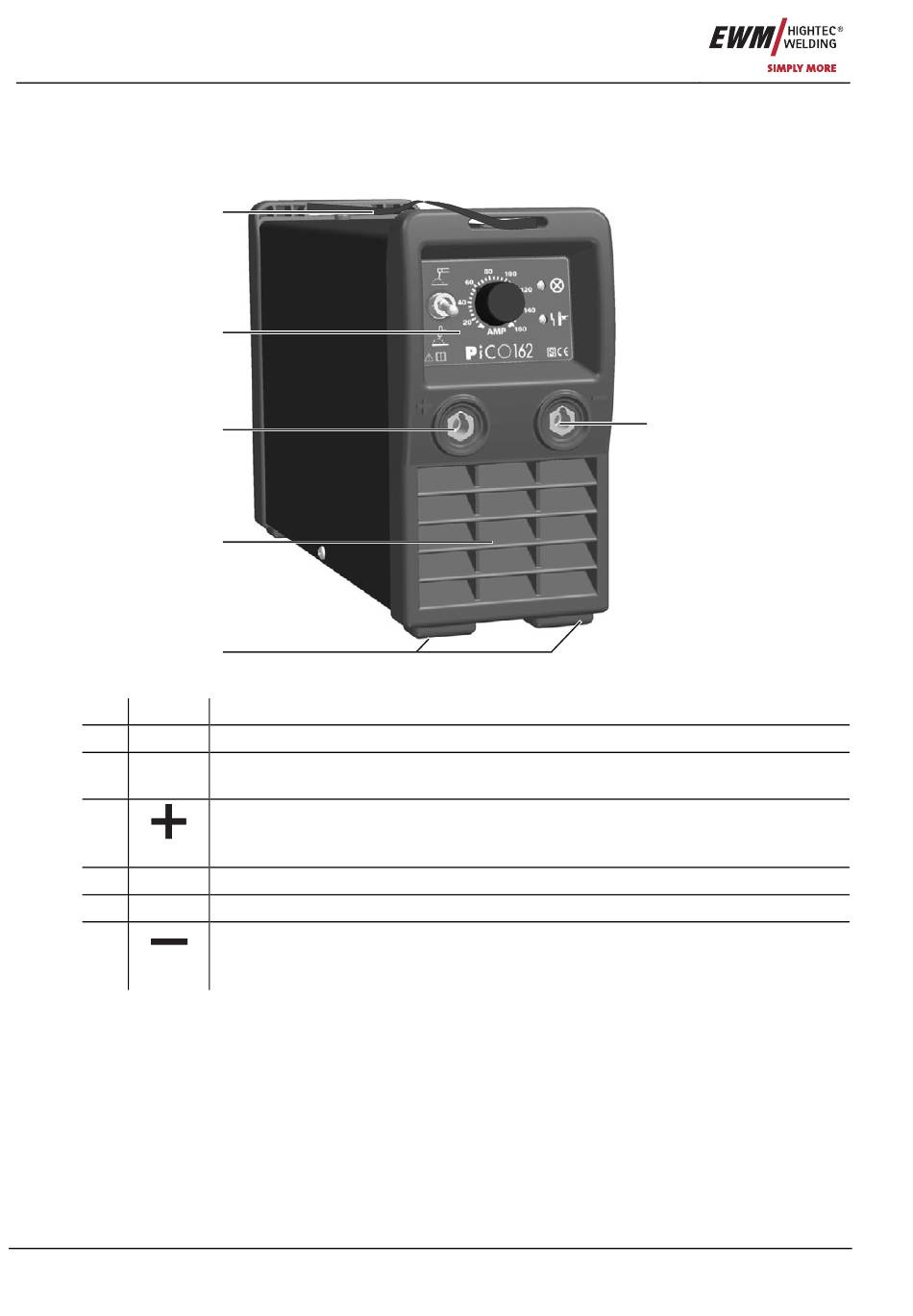

Front view
Item
Symbol Description
1
2
3
4
5
6
14
1
2
3
4
5
0
Carrying strap
Machine control
See Machine control – operating elements chapter
Connection socket, "+" welding current
•
TIG: Connection for workpiece lead
•
MMA: Electrode holder or workpiece lead connection
Cooling air outlet
Machine feet
Connection socket, "-" welding current
•
MMA welding: Electrode holder or workpiece lead connection
•
TIG welding: Welding current lead connection for TIG welding torch
Figure 4-1
6
Item No.: 099-002040-EWM01
