Dirt Filter - EWM PICO 162 Operating Instructions Manual

Commissioning
Machine cooling
6.5.1

Dirt filter

These accessory components can be retrofitted as an option, see Accessories chapter.
The dirt filter can be used in places with unusually high levels of dirt and dust in the ambient air.
The filter reduces the duty cycle of the welding machine via the reduced flow of cooling air. The
filter must be disassembled and cleaned regularly depending on the level of dirt (blow out with
compressed air).

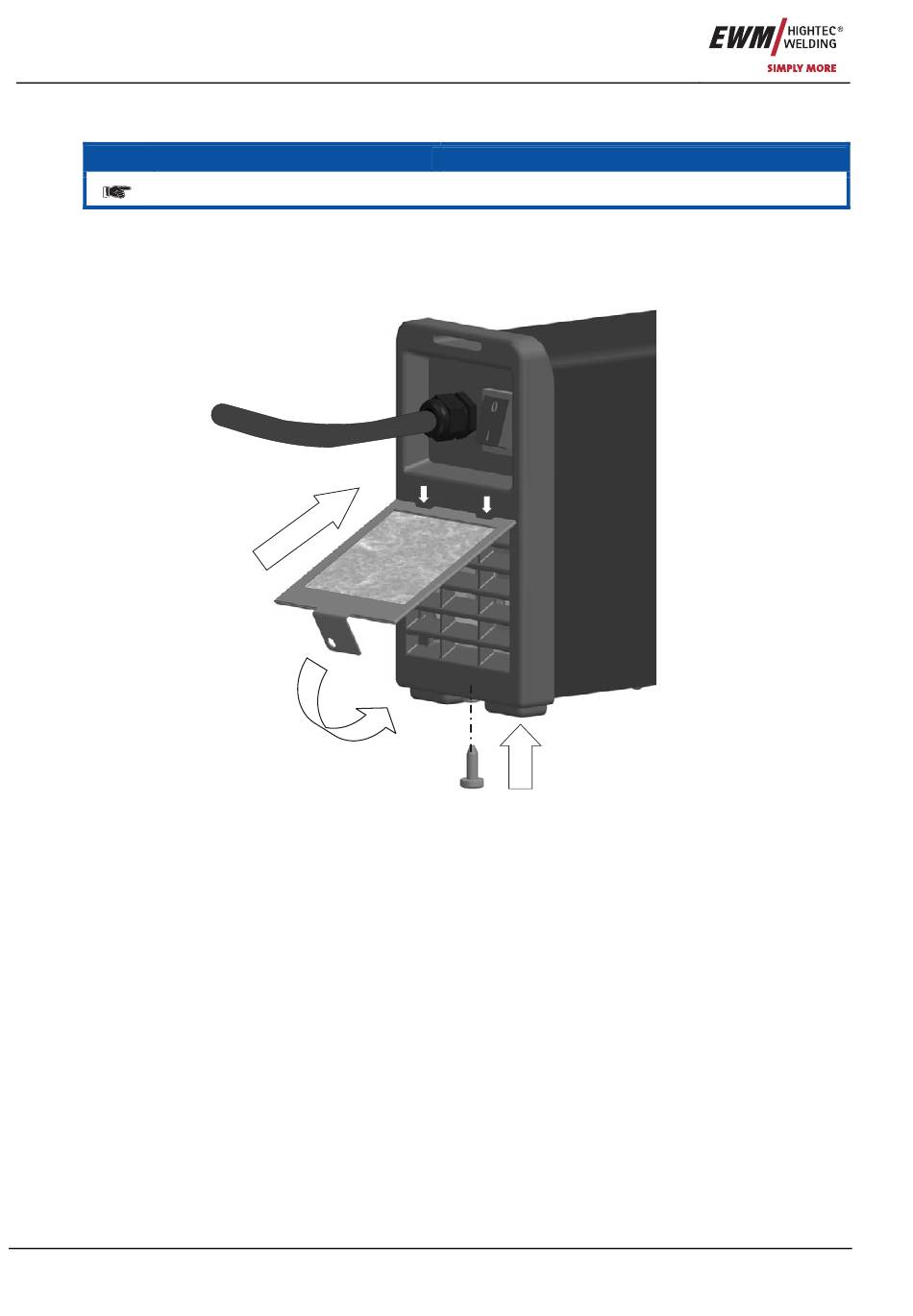

• As shown in the diagram, insert the dirt filter into the rear of the machine, above the air inlet, using
both clips (1).
• Fold down the dirt filter (2).
• Fasten the dirt filter to the underside of the machine (3) using fixing screws.
20
NOTE
1
2
Figure 6-1
3
Item No.: 099-002040-EWM01
