Permobil Koala Owner's Manual page 30

Owner´s manual Koala Design and Function
Security key
The security key can be used to lock
the wheelchair to prevent unauthorized
use. To lock the wheelchair it must be
switched on, the key should then be
inserted into and withdrawn from the
panel outlet, the wheelchair will now be
locked.
To unlock the wheelchair, switch it on.
The maximum speed indicator will rip-
ple up and down but driving will not be
possible. The key should now be insert-
ed into and withdrawn from the panel

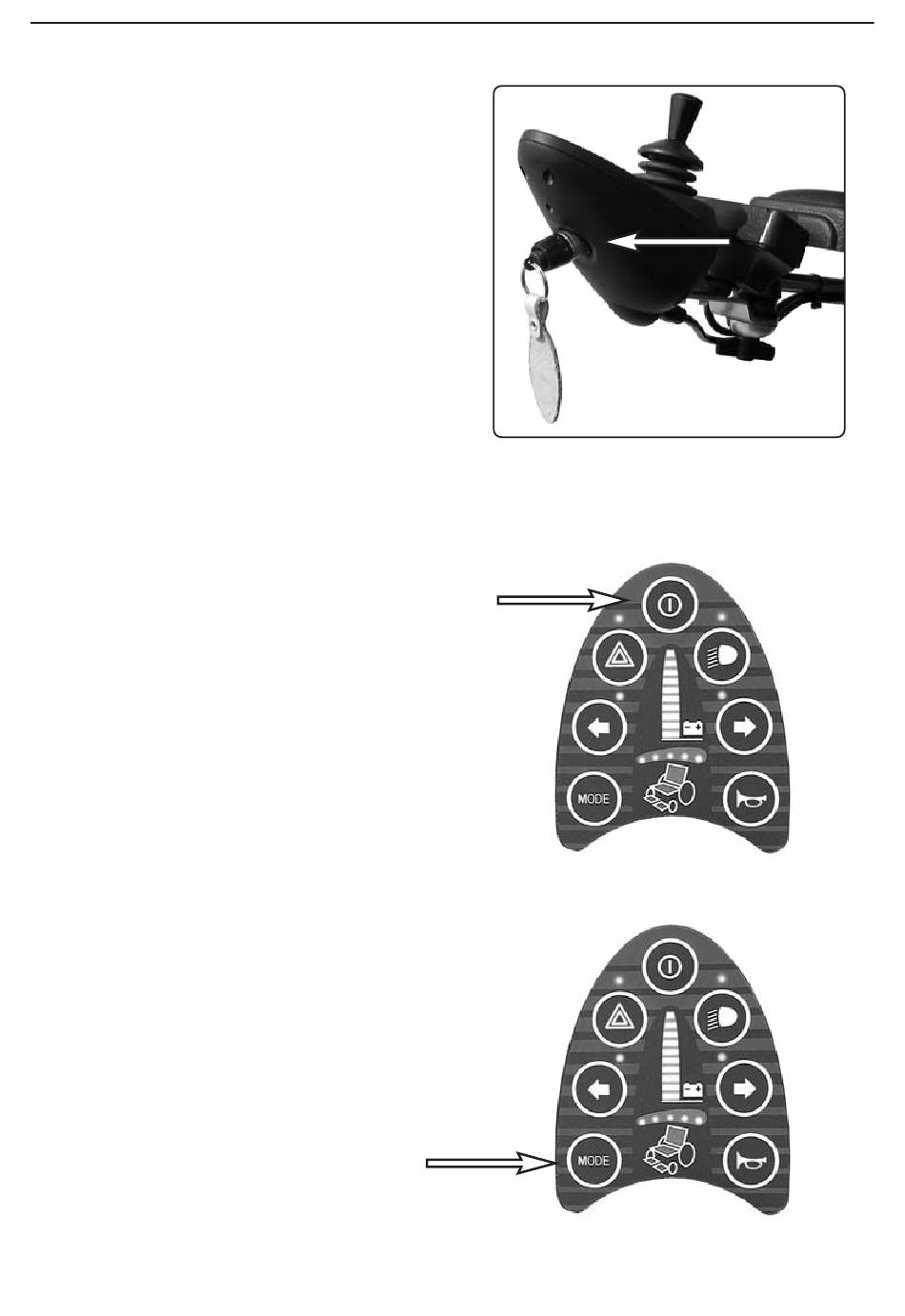

Fig.9. Panel outlet with security
outlet, the wheelchair can now be dri-
key
ven.
Start button
You use this button to start and stop the
wheelchair. The start button must have
been pressed for the chair to operate.
Fig.10. Start button
MODE (selector)
You use this switch to activate the
speed selector and "Leverman"
(see page 33).
Fig.11. Mode (selector)
-30-
