OWNER´S MANUAL
UK
Koala
Power Wheelchair

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Koala and is the answer not in the manual?

Questions and answers

Related Manuals for Permobil Koala

Summary of Contents for Permobil Koala

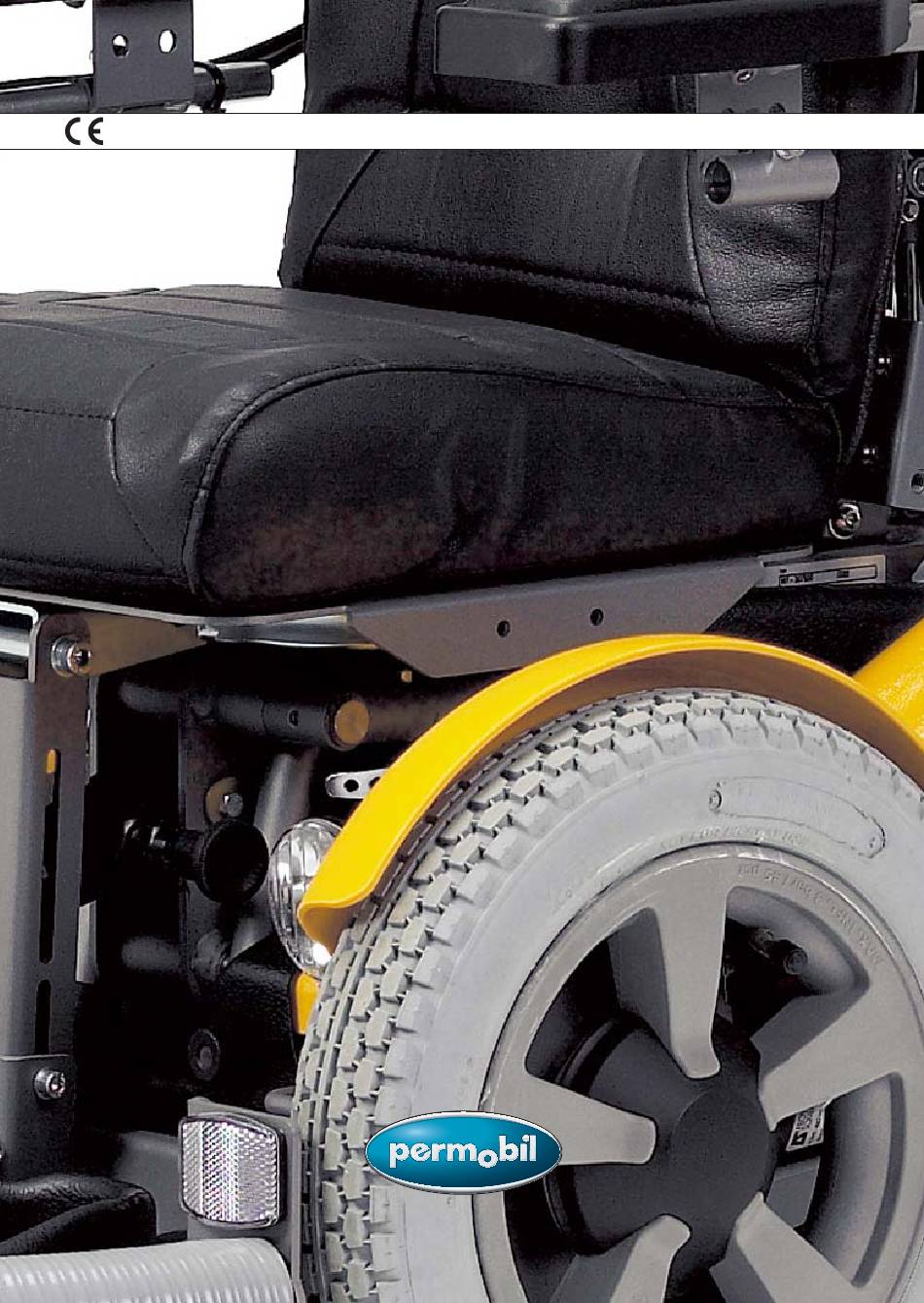

  • Page 1 OWNER´S MANUAL Koala Power Wheelchair...
  • Page 3 Office 312 Britannia Office Quarter Waters Meeting Britannia Way BL1 8SW Bolton, United Kingdom Tel: (+44) (0)1484 722 888 Fax: (+44) (0)1484 723 013 Email: info@permobil.uk The Permobil Group's Head Office Permobil AB Box 120 861 23 Timrå Sverige Tel:...
  • Page 4 Koala Power Wheelchair Produced and published by Permobil AB, Sweden Version no.: 5 - 2009-03 Art. no.: 201182-UK-0...

  • Page 5: Table Of Contents

    Owner´s manual Koala Contents Contents Important information about the owner´s manual ..6 General information ....... . . 7 Technical support .

  • Page 6: Important Information About The Owner´s Manual

    It is also possible to obtain information concerning our products from our home page on the Internet. You can find us at www.permobil.com. All information, pictures, illustrations and specifications are based upon the product information that was available at the time that these operating instruc- tions were printed.

  • Page 7: General Information

    Normally the same person you contacted at purchase day. To prepare this con- tact there is a link on our homepage, on the internet, at www.permobil.com. Open up your country page and the contact page. Here is the needed contact infor- mation and a guidance document in what information we need to investigate the incident.
  • Page 8 Risk of personal injury or of damage to the wheelchair and its surroundings. NOTE Permobil accepts no liability for personal injury or damage to property which may arise from the failure of the user or other persons to follow the...
  • Page 9 • Check that all products ordered are included in the delivery. If you suspect that something is missing, contact your aids centre or Permobil as soon as possible for further information. • Check that no transport damage or other damage has occurred to the seat and its accessories.

  • Page 10: Safety Rules

    Owner´s manual Koala Safety rules Safety rules WARNING Operation Do not allow children to drive the wheelchair unsupervised. If your wheelchair is fitted with lights, they must always be used in poor light and when you are near public roads. Always remember that drivers may find it difficult to see you.
  • Page 11 In case of doubt, always contact a competent service engineer or Permobil. The power supply must be switched off during all work or servicing on the wheelchair’s electrical system.
  • Page 12 Owner´s manual Koala Safety rules Safety rules WARNING Driving on sloping surfaces When driving down a slope, you should always select the lowest speed and drive carefully. Driving down a slope with a front-wheel drive wheelchair can shift the user’s center of gravity forwards. If the wheelchair moves faster than you want, you can stop the wheelchair by letting the joystick go and then start to drive downhill again at a lower speed.
  • Page 13 Owner´s manual Koala Safety rules Safety rules WARNING Driving on sloping surfaces Do not drive the wheelchair where the side slope is steeper than specified in this owner´s manual. There is a risk of tipping. Do not drive up or down ramps that are not fitted with adequate edge protec- tion along the sides of the ramp to prevent the wheelchair from falling off the ramp.
  • Page 14 Owner´s manual Koala Safety rules Safety rules WARNING Operation - turning/cornering The risk of the wheelchair tipping over increases at high turning speed, in tight curves, on uneven surfaces, with fast changes of direction and if you drive from a place with low friction (for example a lawn) to a place with high friction (for example a gravel road).
  • Page 15 Owner´s manual Koala Safety rules Safety rules NOTE Driving on loose or soft surfaces When the wheelchair is set to the lowest speed and the batteries are not fully charged, it may be difficult to drive on some surfaces, for example gravel, sand or thick floor coverings.
  • Page 16 Owner´s manual Koala Safety rules Safety rules WARNING Operation of seat lift/seat angle/back angle Make sure that there is no risk of anything getting in between the chassis and the seat when the seat lift/seat angle and back angle functions are being used.
  • Page 17 WARNING Fixing belt Permobil’s fixing belt is only designed to hold the user in place and not as pro- tection in the case of collision/accident. Check the condition of the belts regu- larly in case any damage or worn places have developed.
  • Page 18 Ignoring this could impair the wheelchair’s maneuverability and stability. Operation in different climates Permobil’s wheelchairs are designed to tolerate most weather conditions, but you should avoid exposing the wheelchair to severe cold, persistent damp- ness, heavy rain/snowfall and similar situations. If the wheelchair has been exposed to any of these, do not use it again before it has completely dried out.
  • Page 19 Do not sit in the wheelchair in a moving vehicle. In the case of accident or a sudden stop, the user could be thrown from the chair with serious injuries as a consequence. Permobil’s fixing belt is only designed to hold the user in place and gives no protection in the case of accident. -19-...
  • Page 20 Be careful when using metal objects when working with batteries. A short-circuit can easily cause an explosion. Always use safety gloves and safety goggles. Use only spare parts or accessories approved or recommended by Permobil. All other use could lead to changes which might impair the functions and safe- ty of the wheelchair.
  • Page 21 Permobil if he or she suspects that any of these circuits is no longer working. Any attempt to modify the safety circuits will result in unsafe use of the wheel- chair and may lead to the chair being unstable or uncontrollable.
  • Page 22 Permobil for information. It is extremely important that Permobil is informed that the wheelchair and its accessories have been damaged during transport, during driving or for some other reason as soon as possible after the damage has occurred.
  • Page 23 (for example alarm systems in shops). The threshold values for Electromagnetic Compatibility (EMC) relating to power wheelchairs are laid down in harmonised standards under EC Directive 93/42/EEC Medical Devices. Permobil’s power wheelchairs meet these threshold values. -23-...

  • Page 24: Design And Function

    Owner´s manual Koala Design and Function Design and Function General 1. Seat 5. Control panel 2. Chassis 6. Battery cover 3. Rear wheel 7. Chassis cover 4. Drive wheel Fig.1. Koala -24-...

  • Page 25: Seat

    See enclosed seat instructions. Seat lift/seat adjustment Koala is fitted with an electrically controlled seat lift. A position adjuster operated from the control panel allows continuous adjustment of the seat to any height between 370-610 mm, permitting simple matching with table, seat heights etc.

  • Page 26: Wheels

    Owner´s manual Koala Design and Function 1. Position adjuster 2. Safety switch Fig. 3 Seat lift Wheels The front wheels of the wheelchair, the drive wheels, have pneumatic tyres. The swivel-mounted rear wheels have solid rubber tyres. Reflectors The standard wheelchair has no lighting but is fitted with reflectors.

  • Page 27: Electrical System

    Owner´s manual Koala Design and Function Electrical system The wheelchair batteries are situated under the battery cover in the centre of the chassis. The batteries are maintenance-free (jelly-type), so there is no need to check fluid levels. Fig. 5 Batteries Drive system The wheelchair has a drive pack for each drive wheel.
  • Page 28 Owner´s manual Koala Design and Function Main circuit-breaker You can reset the main circuit-breaker if it trips. It is on the underside of the chassis, over the right, rear wheel, see fig. 7. The main circuit-breaker is protected from dirt and water by a rubber flap, which you can easily fold back.

  • Page 29: Control Panel

    You can also have a seat control panel fitted to your wheelchair. You can then choose whether you want to adjust the electrical seat functions from the seat control panel. Fig. 8. Control panel Koala 1. Selector 6. Lights 2. Indicators 7.
  • Page 30 Owner´s manual Koala Design and Function Security key The security key can be used to lock the wheelchair to prevent unauthorized use. To lock the wheelchair it must be switched on, the key should then be inserted into and withdrawn from the panel outlet, the wheelchair will now be locked.
  • Page 31 Owner´s manual Koala Design and Function Battery voltage indicator The window display on the control panel (fig.12) shows the following indi- cator lights: Red+Yellow+Green = Fully charged Red+Yellow = Half charged = Charge the batteries Fig.12. Battery voltage indicator Warning symbol...
  • Page 32 Owner´s manual Koala Design and Function Lights Lights Press the switch to turn on the lights Indicators of the wheelchair. Indicators Pressing the right or left arrow acti- vates the chair’s indicators. Fig.15. Light/indicator switches Warning horn Press the button to sound the horn and attract attention.
  • Page 33 Owner´s manual Koala Design and Function Leverman (Joystick manager) With the help of the Leverman, you can use the joystick to control the speed of the chair (5 positions), and seat lift. Operating the Leverman 1. Switch the start button on the control panel.
  • Page 34 Owner´s manual Koala Design and Function Seat control panel The seat control panel is attached to the right or left-hand armrest behind the control panel. The picture below show the function of the seat control panel. Seat lift, fig. 19:1...
  • Page 35 Owner´s manual Koala Design and Function Joystick The joystick is used to regulate the speed of the wheelchair forwards or back- wards, to turn and to brake. Speed The speed is regulated proportionally by moving the joystick forwards or back- wards.
  • Page 36 Owner´s manual Koala Design and Function Turning and braking The wheelchair is turned by moving the joystick to the left or right. The wheelchair is braked by moving the joystick back to the neutral position or letting it go. Fig 21. Regulation turning...

  • Page 37: Accessories

    Accessories Accessory We are constantly developing accessories for our wheelchairs. Contact your nearest Permobil retailer for more information about the accessories available for your wheelchair. Tool bag The wheelchair is supplied with a tool bag which contains the following tools.

  • Page 38: Handling

    Owner´s manual Koala Handling Handling General This wheelchair is designed for use both inside and outside. When driving inside, take normal care. Outside you must remember to drive very slowly on steep downhill slopes and not to drive over curbs and other obstacles higher than 60 mm.
  • Page 39 Owner´s manual Koala Handling 2. Set a suitable speed range by first pressing the MODE button and then use the joystick to select the speed, until the desired indicator lamp comes on for your type of driving. Increase speed = Step to the right.
  • Page 40 Owner´s manual Koala Handling 4. The speed of the wheelchair is regulated proportionally by moving the joystick forwards or backwards to different extents. The wheelchair's electronics make it possible to move slowly over curbs and other obstacles. You can drive up to the curb or obstacle and then carefully drive over it.

  • Page 41: Releasing The Brakes

    Owner´s manual Koala Handling Releasing the brakes In order to avoid the wheelchair rolling away, ensure that the wheelchair is on a level and dry base before releasing the brakes. The brakes can be released to make it possible to move the wheelchair manually.

  • Page 42: Driving Rules

    Owner´s manual Koala Handling Driving rules High curbs and other obstacles Do not drive the wheelchair over curbs and other obstacles higher Max 60 mm than 60 mm. Fig. 28. High curbs and other obstacles Driving downhill You should always drive downhill at low speed and with great caution.
  • Page 43 Owner´s manual Koala Handling Driving along slopes Do not drive the wheelchair along slopes steeper than 10 degrees. There is a risk of tipping. Max 10° Fig. 30. Driving along slopes Driving uphill You should always drive uphill with great caution.

  • Page 44: Charging The Batteries

    Owner´s manual Koala Handling Battery charging Only carry out charging in a well-ventilated area, not a wardrobe etc. Do not charge up in a bathroom or other wet room. Be careful with metal objects when working on the batteries. A short circuit could easily cause an explosion.
  • Page 45 Owner´s manual Koala Handling When to recharge the batteries To get the most out of the batteries with regard to running time each time they are charged as well as total lifetime, the batteries should be charged regularly. Always turn the wheelchair off when it is not in use and avoid running the bat- teries completely flat.
  • Page 46 Owner´s manual Koala Handling Charging the batteries Read carefully through the instructions for using the battery charger before beginning to charge the batteries. 1. Make sure that the wheelchair is turned off before beginning to charge the bat- teries. Then connect the mains cable of the battery charger to a suitable mains outlet.

  • Page 47: Transport

    We recommend that Permobil wheelchairs are transported on trailers. The Permobil can be locked in place with loading belts attached to the fixing loops on the front panel and at the side by the bumper. If the chair has to be trans- ported in an estate car or other vehicle it is vital that the chair is properly fixed and that the fixing points used are well anchored.

  • Page 48: Transporting By Air

    Owner´s manual Koala Transport Air transport When transporting your chair by air, you should be aware of three things above all: the batteries, the dimensions and weight of the wheelchair and that the seat can be damaged when handled as it is placed together with luggage and other goods in a narrow space.

  • Page 49: Maintenance And Repairs

    Owner´s manual Koala Maintenance Maintenance Before working on the wheelchair's electrical system the connection to the negative pole of the battery must always be removed. Be careful with any metal objects when working on the battery. A short circuit could easily cause an explosion. Always wear safety gloves and goggles.
  • Page 50 NB! The temperature in the place of storage must not fall below 5°C. The Permobil Koala has maintenance-free jelly-type batteries. This means there is no need to check fluid levels. Battery life depends entirely on regular charging.

  • Page 51: Repairs

    Owner´s manual Koala Repairs Repairs Resetting the main fuse/battery cut-out The main fuse also functions as a battery cut-out but is still referred to as the main fuse in the user instruction. NB! First switch off the power on the manoeuvring panel before switching the power off on the main fuse.
  • Page 52 Owner´s manual Koala Repairs Raising/lowering the seat manually 1. When you are raising the seat, remove the cushion and screw out the three screws that hold the seat, when lowering, go straight to point 2. 2. Remove the screw that holds the positioning-motor cylinder bar in the seat lift, see fig.
  • Page 53 Owner´s manual Koala Repairs Changing batteries 1. Set the Permobil on an even surface. 2. Raise the seat lift to its full height. 3. Switch off the main switch. 4. Loosen the battery cover and disengage the terminal protection connector.
  • Page 54 Owner´s manual Koala Repairs Changing an inner tube 1. Set up the wheelchair on blocks and let out the air. 2. Lever the tyre out of the rim. 3. Replace the defective inner tube. 4. Replace the tyre on the rim and reinflate.
  • Page 55 Owner´s manual Koala Repairs Filling with air Low air pressure in the tyre will cause abnormal wear and a shorter travelling range. So, check regularly that the pressure in the front tyres is up to 200 kPa. (2 bar). 1. Unscrew the plastic cap on the drive wheel air valve.

  • Page 56: Technical Specifications

    Owner´s manual Koala Specification Data General Name ........... Koala Wheelchair type........B Size and weight Lenght..........96 cm Width............ 56 cm Seat height .......... 37-61 cm Smallest transport size, lxbxh....71x56x80 Weight incl. batteries......92 kg with Mini-Flex-seat Maximum weight of user ..... See the supplied Owner’s manual for the seat.
  • Page 57 Owner´s manual Koala Specification Electrical system Electronics PM80 Pilot+ Control panel JSM-L 7key Pilot+ Batteries Recommended battery type ....Gel Battery capacity ........2 x 38Ah Charging time ........8 hours Fuses Charging fuse ........15A Mainfuse ..........63A -57-...
  • Page 58 Owner´s manual Koala Notes -58-...

  • Page 60: Art. No.: 201182-Uk
